A071010 V3 EN

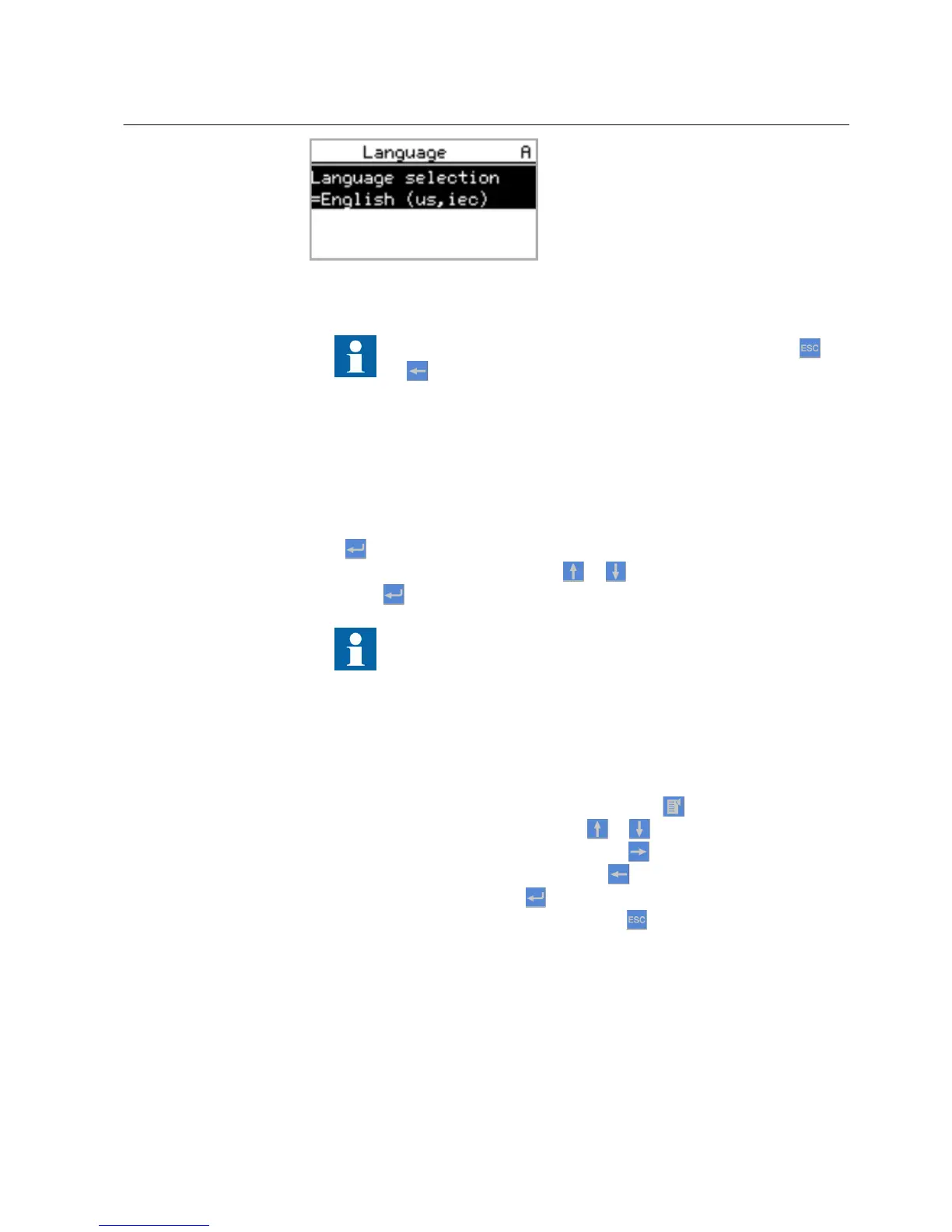

Figure 11: Changing the LHMI language
You can change the language also by pressing simultaneously and
.
4.1.8 Changing display symbols
To switch between the display symbols IEC 61850, IEC 61617 and IEC-ANSI:
1. Select Main Menu/Configuration/HMI/FB naming convention and press
.
2.
Change the display symbols with
or .
3.
Press to confirm the selection.
The IED has to be rebooted if the WHMI display symbols are
changed. With the LHMI, the change takes effect immediately.
4.1.9 Navigating in the menu
Navigate the menus and change the display views on the screen with the keypad.
•
To move to the Main Menu or default view, press .
•
To move up or down in a menu, press or .
•
To move downwards in the menu tree, press
.
•
To move upwards in the menu tree, press .
•
To enter setting mode, press .
•
To leave setting mode without saving, press .
4.1.9.1 Menu structure
The Main Menu contains main groups which are divided further into more detailed
submenus.
1MRS756499 A Section 4
Using HMI locally or via web interface
RED615 33
Operation Manual
