ABB RED615 User Manual

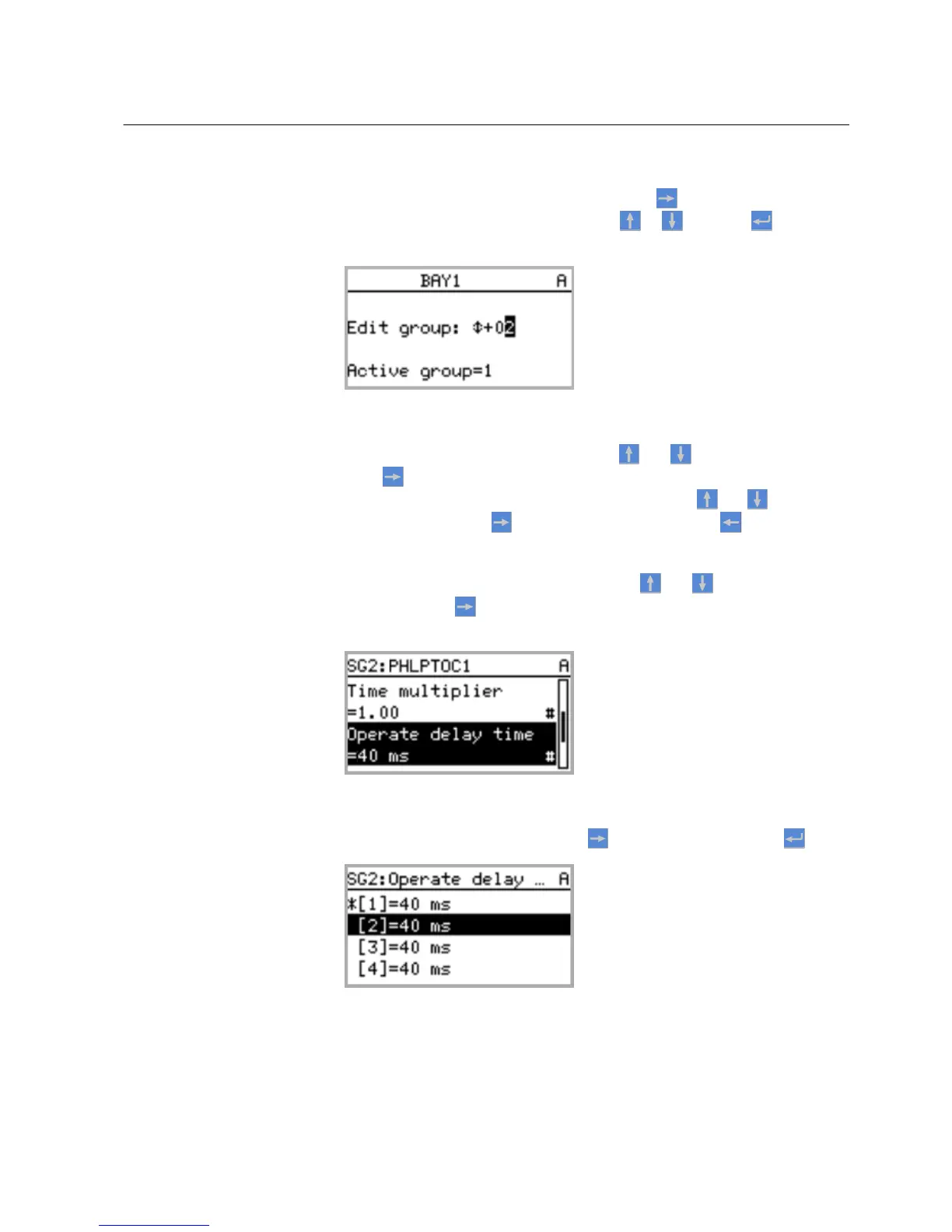

6.4.5.4 Browsing and editing setting group values
1.
Select Main Menu/Settings/Settings and press .
2.
Select the setting group to be viewed with or and press to confirm
the selection.
A071166 V3 EN
Figure 56: Selecting setting group
3.
To browse the settings, scroll the list with
and and to select a setting
press .
4.
To browse different function blocks, scroll the list with and and to select
a function block press . To move back to the list, press .
The function block list is shown in the content area of the display. On the left
in the header, you see the current setting group, and on the right the menu path.
5.
To browse the parameters, scroll the list with
and and to select a
parameter, press .
The setting group values are indicated with #.
A070899 V3 EN
Figure 57: Setting group parameter
6.
To select a setting group value, press
and to edit the value press .
A071168 V3 EN
Figure 58: Selecting setting group value
1MRS756499 A Section 6
Operating procedures
RED615 75
Operation Manual
