The help view is displayed.
2.
If the help text exceeds the display area, scroll the text with or .
3.
To close the help, press .
4.2 Using WHMI
WHMI is disabled by default. You must be logged in and authorized to use the WHMI.
1. To enable the WHMI, select Main Menu/Configuration/HMI/Web HMI
mode via the LHMI.
2. Reboot the IED for the change to take effect.
Do not use favorites in the web browser. If you are unauthorized and
select a favorite pointing to a WHMI page, you are redirected to the
log in page. With authorization you are redirected to the startup page.
4.2.1 Logging in
1. Enter the username with capital letters.
2. Enter the password.
3. Click Log in.
A070923 V3 EN

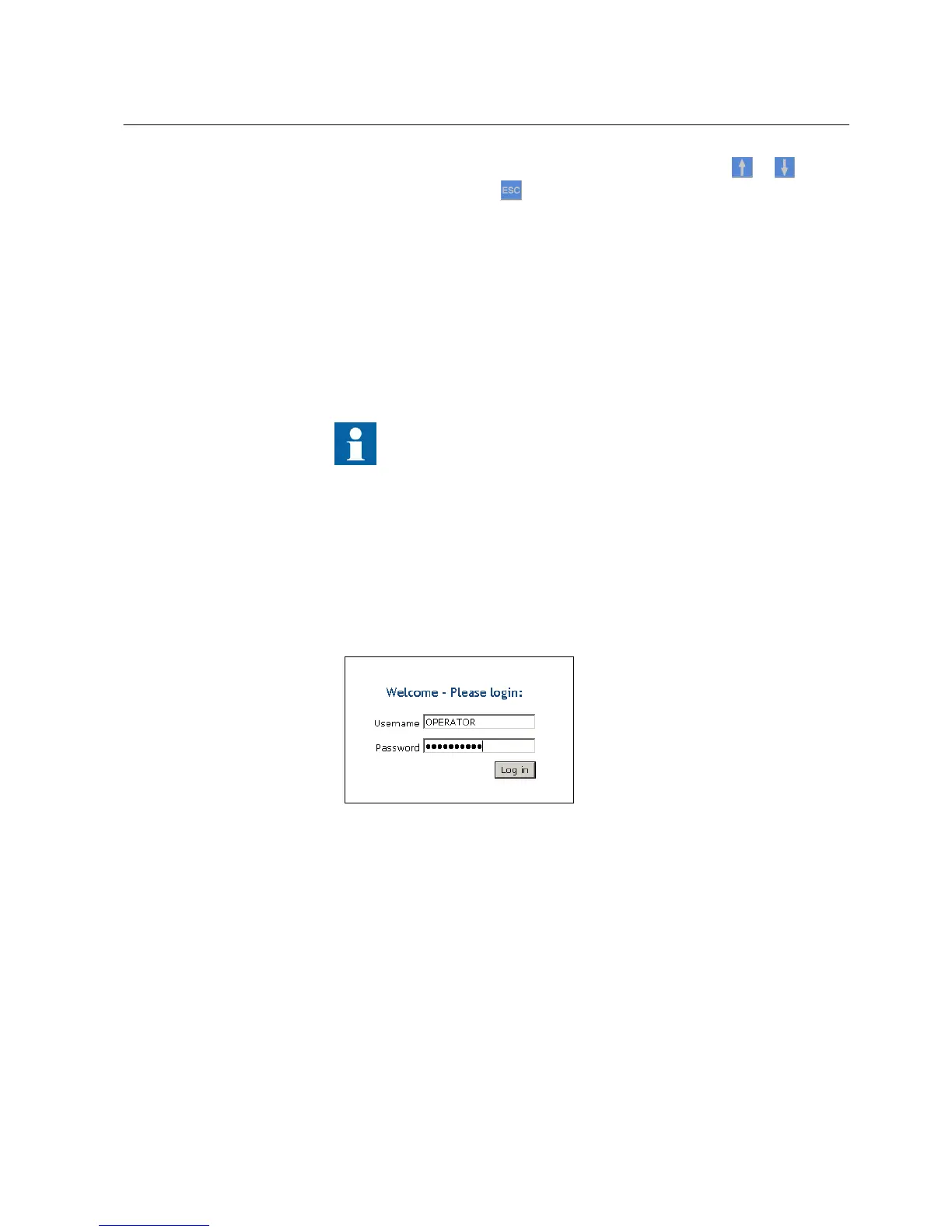

Figure 20: Entering username and password to use the WHMI
4.2.2 Logging out
The user is logged out after session timeout. The timeout can be set in Main Menu/
Configuration/HMI/Web HMI timeout. The red session timeout bar appears one
minute before the timeout expires. You can prevent automatic logout by clicking
Close this dialog.
1MRS756499 A Section 4
Using HMI locally or via web interface
RED615 39
Operation Manual
