• The green uplink LED on the left is lit when the cable is successfully connected
to the port.
• The yellow communication LED on the right blinks when the IED communicates
with the connected device.
A070816 V3 EN

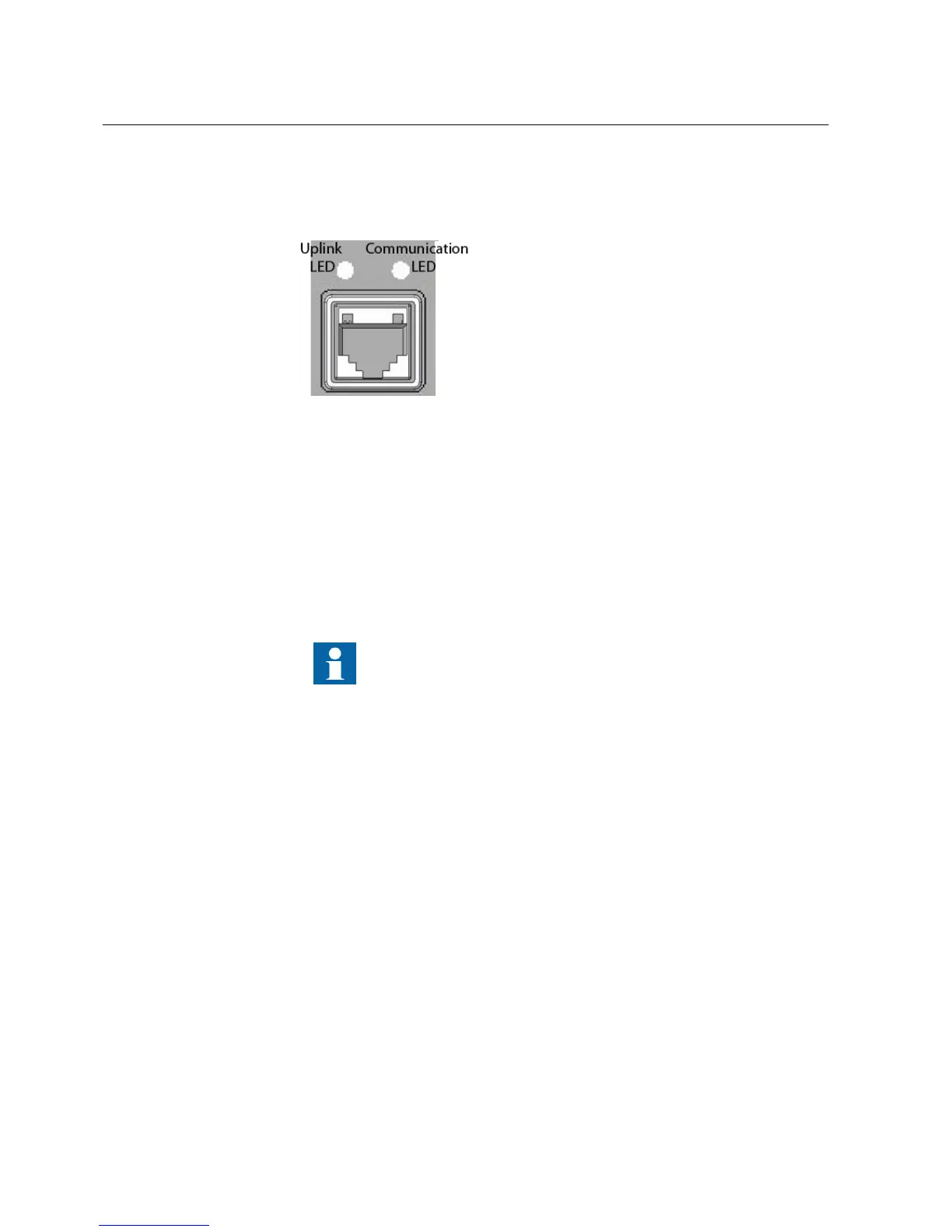

Figure 4: RJ-45 communication port and indication LEDs
When a computer is connected to the IED, the IED's DHCP server for the front
interface assigns an IP address to the computer. The fixed IP address for the front
port is 192.168.0.254.
3.6 WHMI
The WHMI enables the user to access the IED via a web browser.
WHMI is disabled by default. To enable the WHMI, select Main
Menu/Configuration/HMI/Web HMI mode via the LHMI. Reboot
the IED for the change to take effect.
WHMI offers the following functions:
• Alarm indications and event lists
• System supervision
• Parameter settings
• Measurement display
• Phasor diagram
The menu tree structure on the WHMI is identical to the one on the LHMI.
Section 3 1MRS756499 A
RED615 overview
24 RED615
Operation Manual
