Info Menu

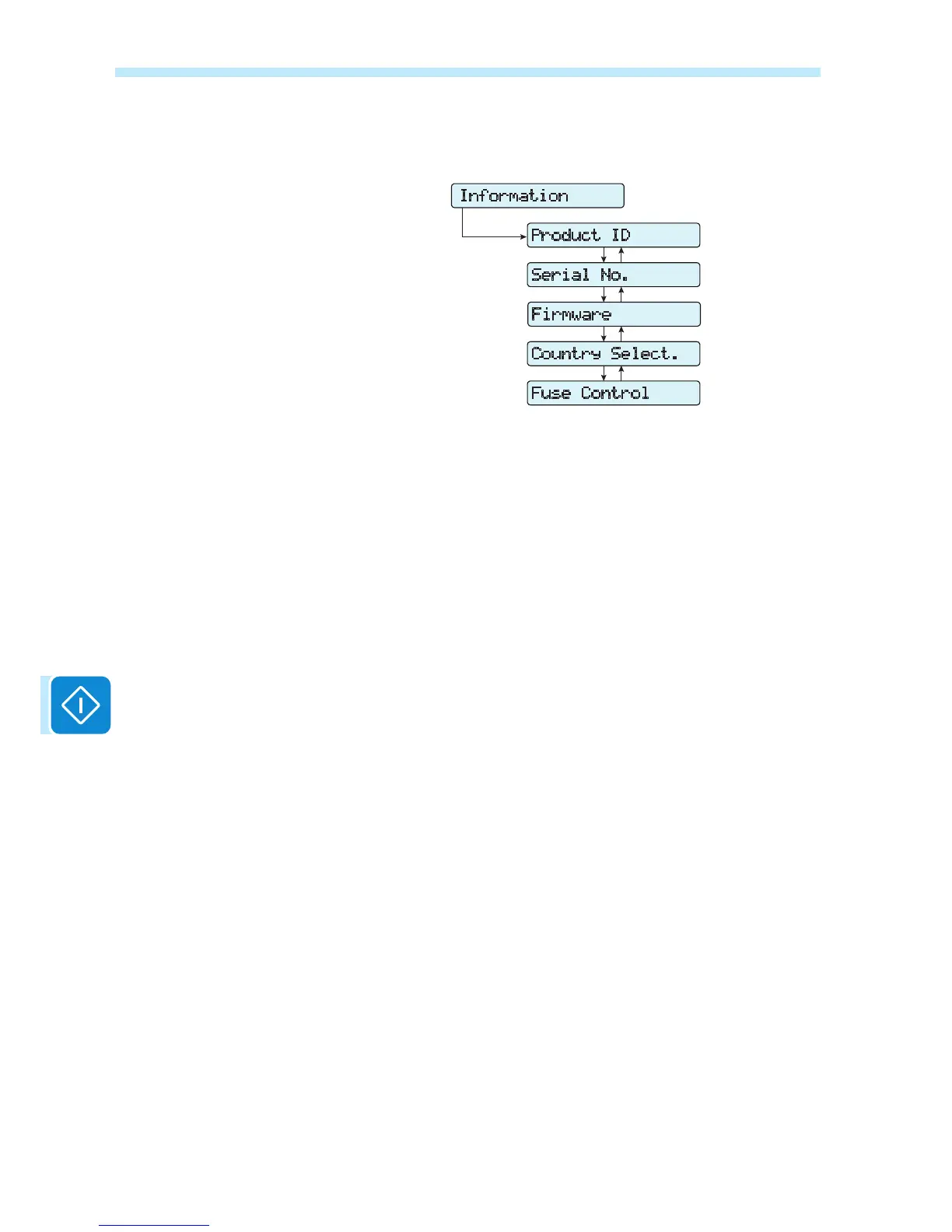

Selecting INFO from the three main sub-menus gives access to:
Information
Product ID
Serial No.
Firmware
Country Select.
DOWN
ENTER
UP
1
DOWN UP
DOWN UP
2
3
4
Fuse Control
DOWN UP
5
1. Product ID
Displays the model code
2. Serial No
Displays the serial number and week and year of manufacture of the
equipment
3. Firmware
Displays the rmware version installed in the equipment and the “update
version” eld required to request a second-level password for the Service
menu (along with the Serial Number and Week of Production).
4. Country Select.
Displays information on the grid standard set with the rotary switches.
• Actual value: Displays the grid standard set.
• New value: Allows you to select a new grid standard (by using the
UP and DOWN buttons), which will only become effective when the
equipment has been switched off and on again, or when the selection
has been conrmed in the Set new value submenu described below.
The grid standard can only be changed if the time allowed for doing so
(24 hours of operation) has not expired.
• Set new value: This allows you to conrm/set the new grid standard set
in the “New value” section of the previous menu.
• Residual time: Displays the time remaining in which it is still possible to
set a new grid standard. When the time expires, “Locked” will be displayed,
which indicates it is not possible to change the grid standard again.
5. Fuse control (only -S2F / -S2X versions)
• Strings: Displays the voltage and the state of the strings present at the
input of the equipment. A string can be in one of the following states: OK,
OFF (damaged) and ABS (absent)
• Currents: Displays the current and the state of the strings present at
the input of the equipment. A string current can be in one of the following
states: OK, UNB (unbalanced current) and ABS (absent)
