Installation procedure for quick fit connectors
On inverter models with which quick t connectors are supplied, they
may be supplied in two different types:
CAUTION: To avoid damage to the equipment, when attaching cables, pay particular atten-
tion to polarity.
Weidmüller

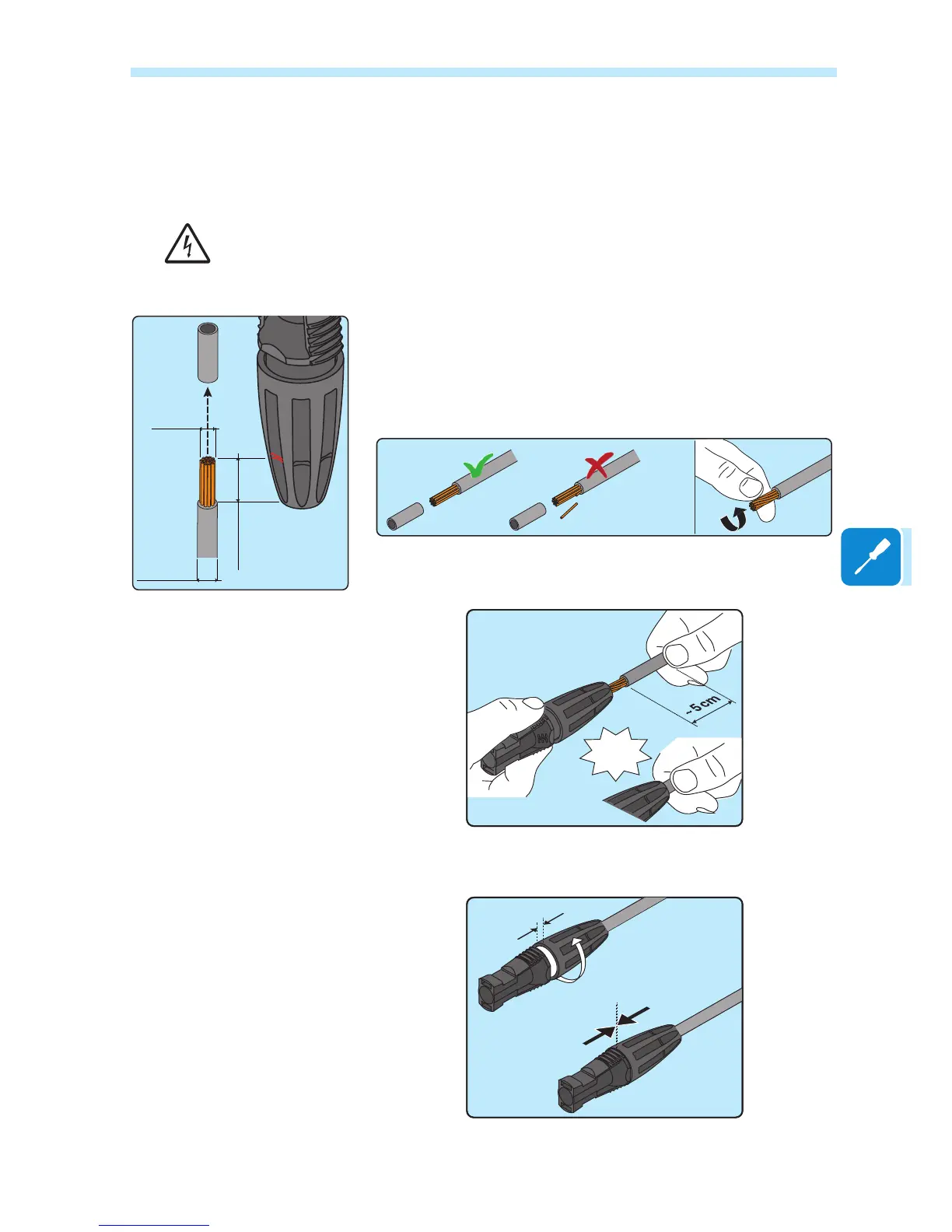

Installation of Weidmuller connectors does not require any special too-
ling.
- Strip the cable to which you want to apply the connector (after verifying
that it complies with the connector limits)
- Insert the wire into the connector until you hear a locking “click”
Click !
- Tighten the knurled ring nut for optimal clamping
3 ... 4 Nm
0 !
15...16.5mm
4...6mm
5.5...7.5mm
2
