2 - Characteristics

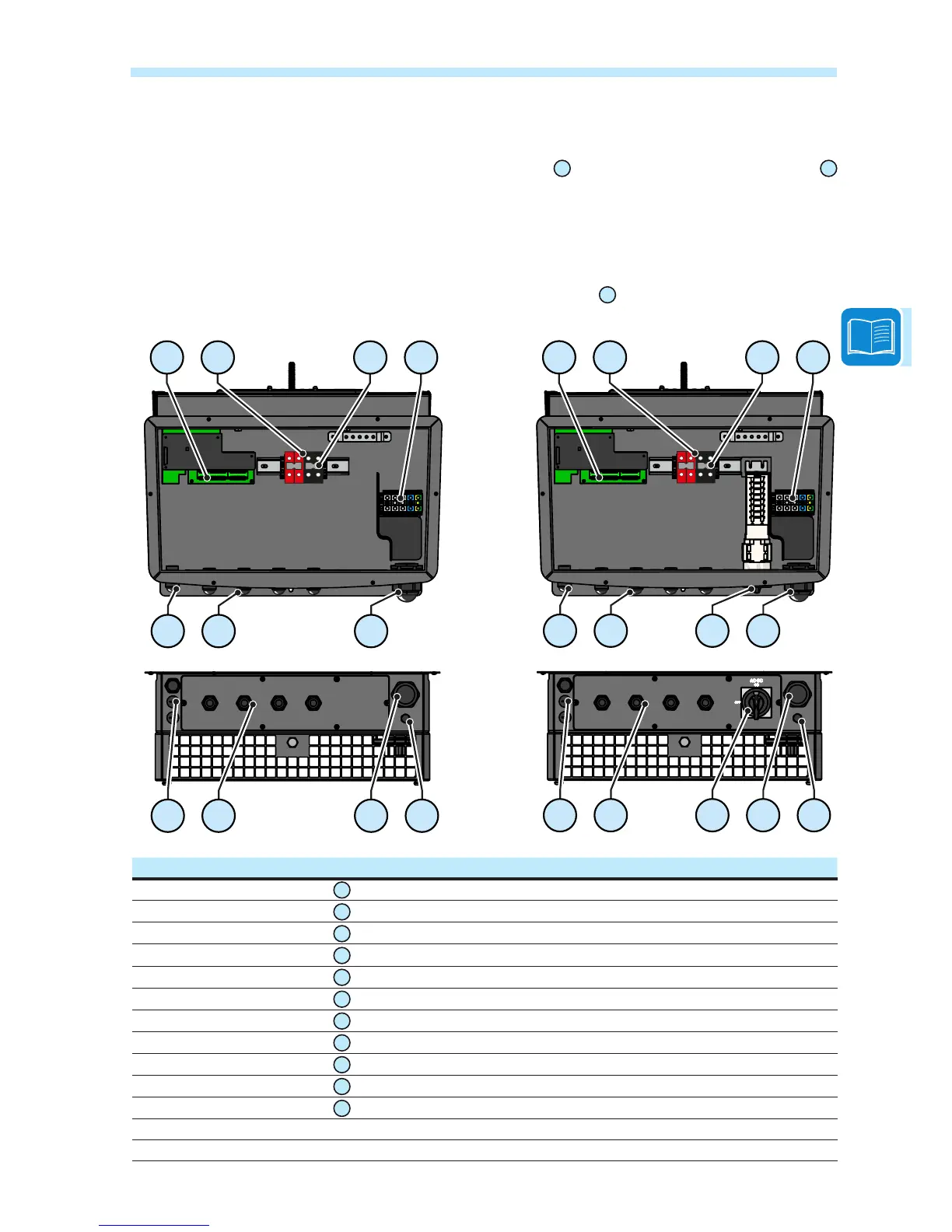

Wiring Box components
For both models of inverter
03
(20 kW or 27.6 kW), three wiring box
02
are available with different layouts.
Standard / -S2 Version
TRIO-XX.X-TL-OUTD: Standard version wiring box
TRIO-XX.X-TL-OUTD-S2: S2 wiring box version, like the basic version
but with AC+DC disconnect switch
14
Table: electrical system components
Ref. Description
09
communication card
10
service cable glands
11
DC cable glands
12
jumpers
13
DC input terminal board
14
AC+DC disconnect switch
16
AC cable gland
17
AC output terminal board
19
Input connectors (MPPT1)
20
Input connectors (MPPT2)
21
anti-condensation valve
a01 Switch for setting parallel-connected or independent input channels
a05 Rotary switches for setting the country and the language of the display
S2 Version
09 13 12 17
10 11 14 16
10 11 14 16 21
Standard
09 13 12 17
10 11 16
10 11 16 21
