Installation position
When choosing the place of installation, comply with the following condi-
tions:
• Install on a wall or strong structure suitable for bearing the weight.
• Install in safe, easy to reach places.
• If possible, install at eye-level so that the display and status LEDs can
be seen easily.
• Install at a height that considers the heaviness of the equipment. If
this condition is not complied with, it can create problems in the event of
servicing unless suitable means are provided to carry out the operation.
• Install vertically with a maximum inclination of +/- 5°. If this condition
is not complied with, the inverter could go into temperature derating be-
cause of the worsening of heat dissipation.
• To carry out maintenance of the hardware and software of the equip-
ment, remove the covers on the front. Check that there are the correct
safety distances for the installation that will allow the normal control and
maintenance operations to be carried out.
• Comply with the indicated minimum distances.

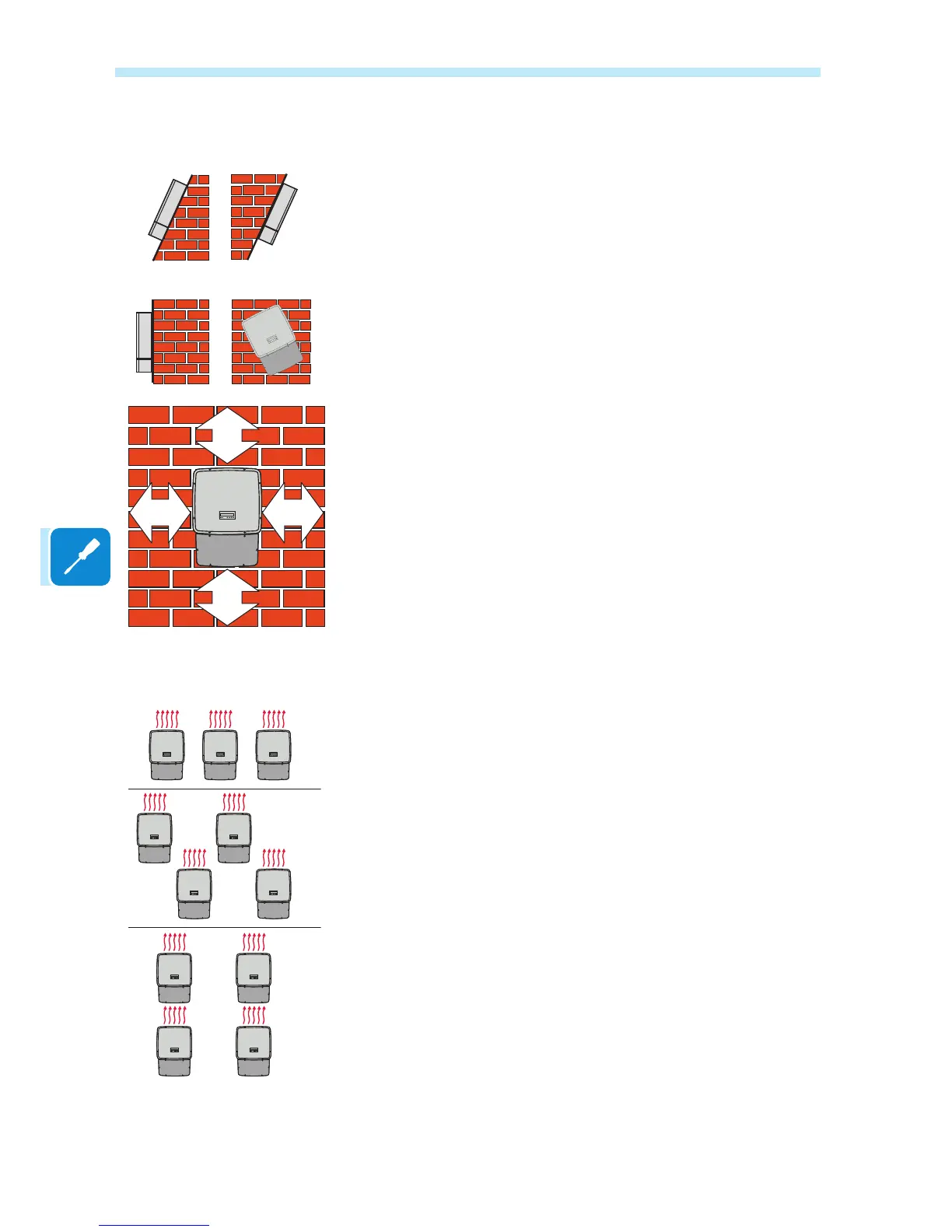

• For a multiple installation, position the inverters side by side.
• If the space available does not allow this arrangement, position the
inverters in a staggered arrangement as shown in the gure so that heat
dissipation is not affected by other inverters.
80
cm
50
cm
50cm
50cm
