ABB TRIO-20.0/27.6-TL-OUTD User Manual

- 18 -
000083CG

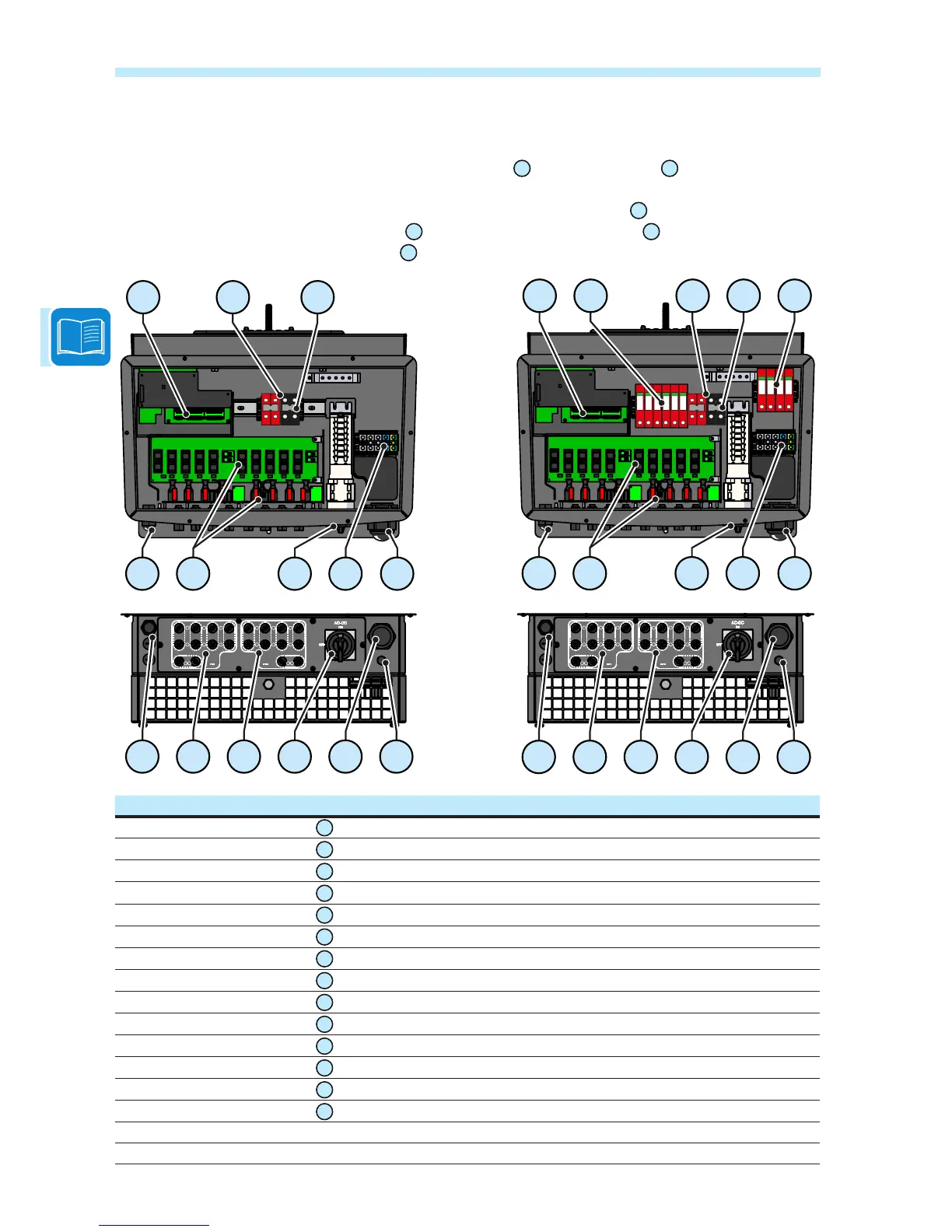

2 - Characteristics
-S2X / -S2F Version
TRIO-XX.X-TL-OUTD-S2F: S2F wiring box version, with snap-together
connectors, string fuses
22
and AC+DC switch
14
.
TRIO-XX.X-TL-OUTD-S2X: S2X wiring box version, more complete ver-
sion with quick t connectors, string fuses
22
, DC overvoltage surge ar-
resters
15
, AC overvoltage surge arresters
18
and AC+DC disconnect
switch
14
.
Table: electrical system components
Ref. Description
09
communication card
10
service cable glands
11
DC cable glands
12
jumpers
13
DC input terminal board
14
AC+DC disconnect switch
15
DC overvoltage surge arresters
16
AC cable gland
17
AC output terminal board
18
AC overvoltage surge arresters
19
Input connectors (MPPT1)
20
Input connectors (MPPT2)
21
anti-condensation valve
22
string fuses
a01 Switch for setting parallel-connected or independent input channels
a05 Rotary switches for setting the country and the language of the display
2B 2D2C
IN2
2E
-
+
1A
1E
IN1
1B 1C 1D
-
- - -
+
+
- -
++ +
2A
-
+ +
09 13 12
10 14 17 16
10 19 20 14 16 21
22
S2F Version
S2X Version
2B 2D2C
IN2
2E
-
+
1A
1E
IN1
1B 1C 1D
-
- - -
+
+
- -
++ +
2A
-
+ +
09 15 13 12 18
10 14 17 16
10 19 20 14 16 21
22
