Installation of the second protective earthing cable
Should it be necessary to install a second protective earthing cable, fol-
low the procedure described below:

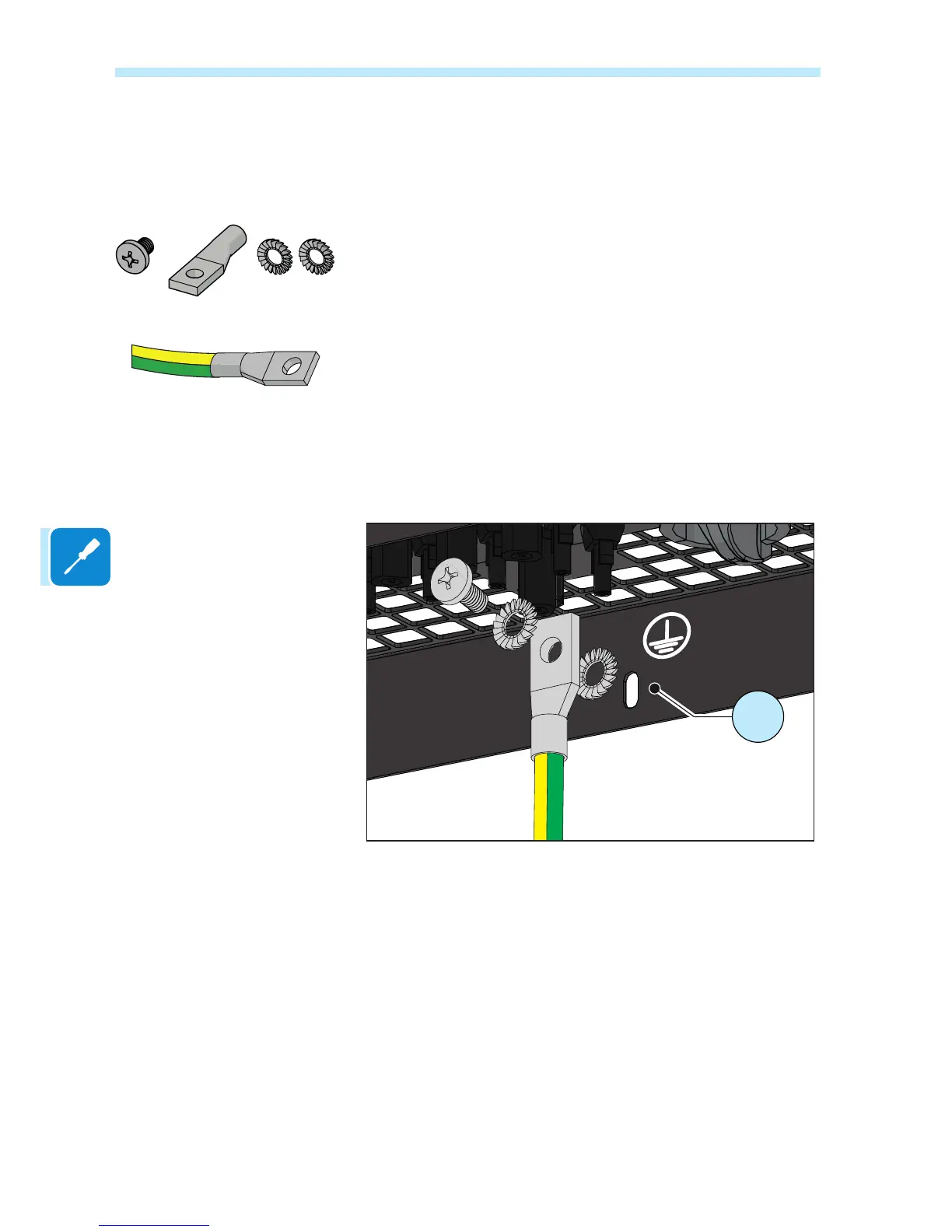

• From among the components supplied, nd the M6 screw, the two knur-
led washers and the cable lug
• Fit the cable lug on the protective earthing cable.
The cable lug accepts cables with a cross-section of from 4 to 6 mm
2
• Fasten the cable lug using the screw and the two washers, following the
sequence illustrated below and tightening to a torque of 4.1 Nm.
The connection point is located on the underside of the inverter.
27
