4 - Lifting and transport

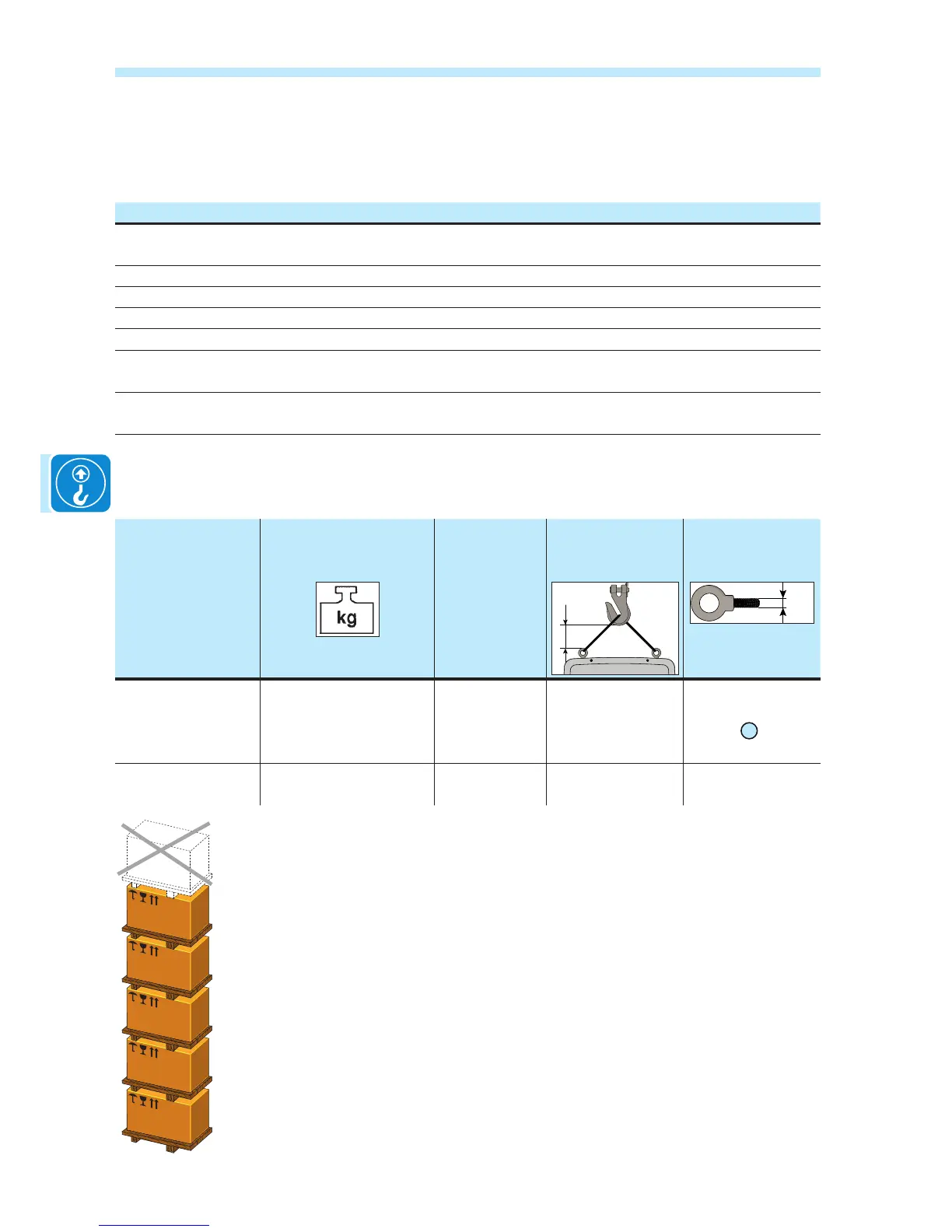

Kit of recommended spare parts
A list of spare parts that are compatible with the TRIO inverter and in
stock at the ABB warehouse is given below.
Code Description Quantity
TRIO HANDLING KIT
Kit of handles and eyebolts for lifting the in-
verter part
4 handles
2 eyebolts
KIT 10 FUSES 8A Kit of 8A fuses (gPV - 1000Vdc) 10
KIT 10 FUSES 10A Kit of 10A fuses (gPV - 1000Vdc) 10
KIT 10 FUSES 12A Kit of 12A fuses (gPV - 1000Vdc) 10
KIT 10 FUSES 15A Kit of 15A fuses (gPV - 1000Vdc) 10
KIT SURGE DC SIDE TRIO
Kit of spare cartridges for DC side surge ar-
resters
4 (Dehn PN. 952051)
2 (Dehn PN. 952041)
KIT SURGE AC SIDE TRIO
Kit of spare cartridges for AC side surge ar-
resters
3 (DehnPN. 952010)
1 (Dehn PN. 952050)
Weight of the equipment units
Table: Weights Weight
(kg/lb)
Lifting
points
( n°#)
Minimum height of
ropes
(mm)
H
Holes or Eyebolts
UNI2947
ø M
(mm)
INVERTER unit TRIO-20.0: 60kg/132lb
TRIO-27.6: 65kg/143lb
4 1.200 M 12
mounting kit with
handles
06
and eye-
bolts (to order)
WIRING BOX unit Standard / -S2: 7kg/15.5lb
-S2F / -S2X: 15kg/33lb
2 - -
If the package is stored correctly, it can withstand a maximum load of 5 pieces of equipment.
DO NOT stack with equipment or products other than those indicated.
