ABB TRIO-20.0/27.6-TL-OUTD User Manual

- 22 -
000047EG
2 - Characteristics
Table: Technical Data TRIO-20.0-TL-OUTD TRIO-27.6-TL-OUTD
Isolation Level Transformerless
Marking CE
Safety and EMC Standard
EN 50178, EN 62109-1, EN 62109-2, AS/NZS3100,
AS/NZS 60950, EN61000-6-2, EN61000-6-3,
EN61000-3-11, EN61000-3-12
1. The AC voltage range may vary depending on specic country grid standard
2. The Frequency range may vary depending on specic country grid standard
3. Limited to 20000 W for Germany
4. Limited to 27600 W for Germany
Remark. Features not specically listed in the present data sheet are not included in the product
Tightening torques
To maintain the IP65 protection of the system and for optimal installation,
the following tightening torques must be used:
AC cable gland
16
PG36
7.5 Nm
Service cable glands
10
M25
5.0 Nm
Service cable glands
10
M20
2.7 Nm
DC cable glands
11
M25 (basic and S2 versions)
5.0 Nm
Wiring box
02
2.4 Nm
DC input terminal board
13
50 mm
2
(basic and S2 versions only)
6.0 Nm
AC output terminal board
17
35 mm
2
2.5 Nm
Quick t connectors MC4 or Weidmuller 2.5 Nm

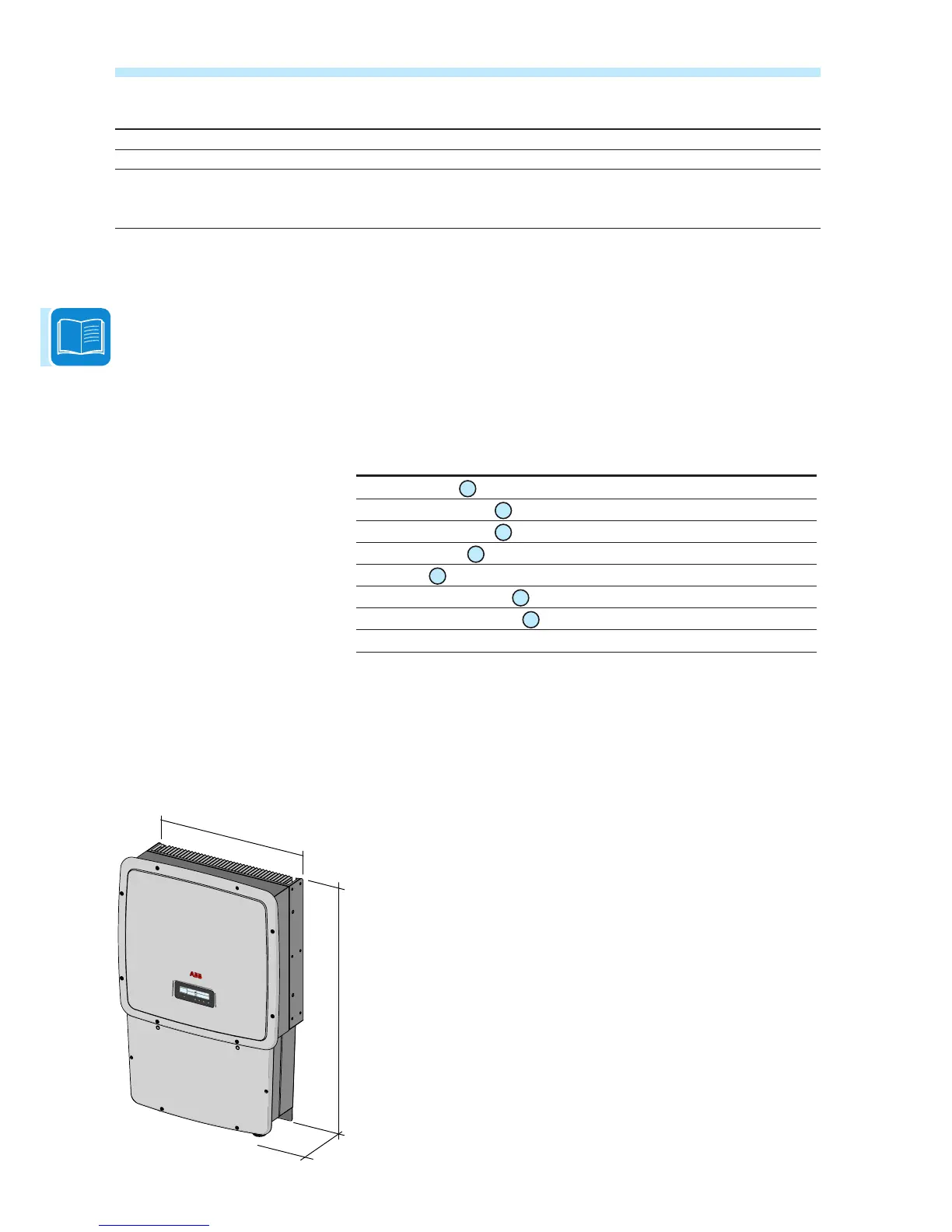

Overall dimensions
The overall dimensions are expressed in mm and in inches
POWER ALARM
GFI
ESC
UP DOWN
ENTER
702mm - 27.6”
1061mm - 41.8”
292mm
11.5”
TRIO
