Description of the menus

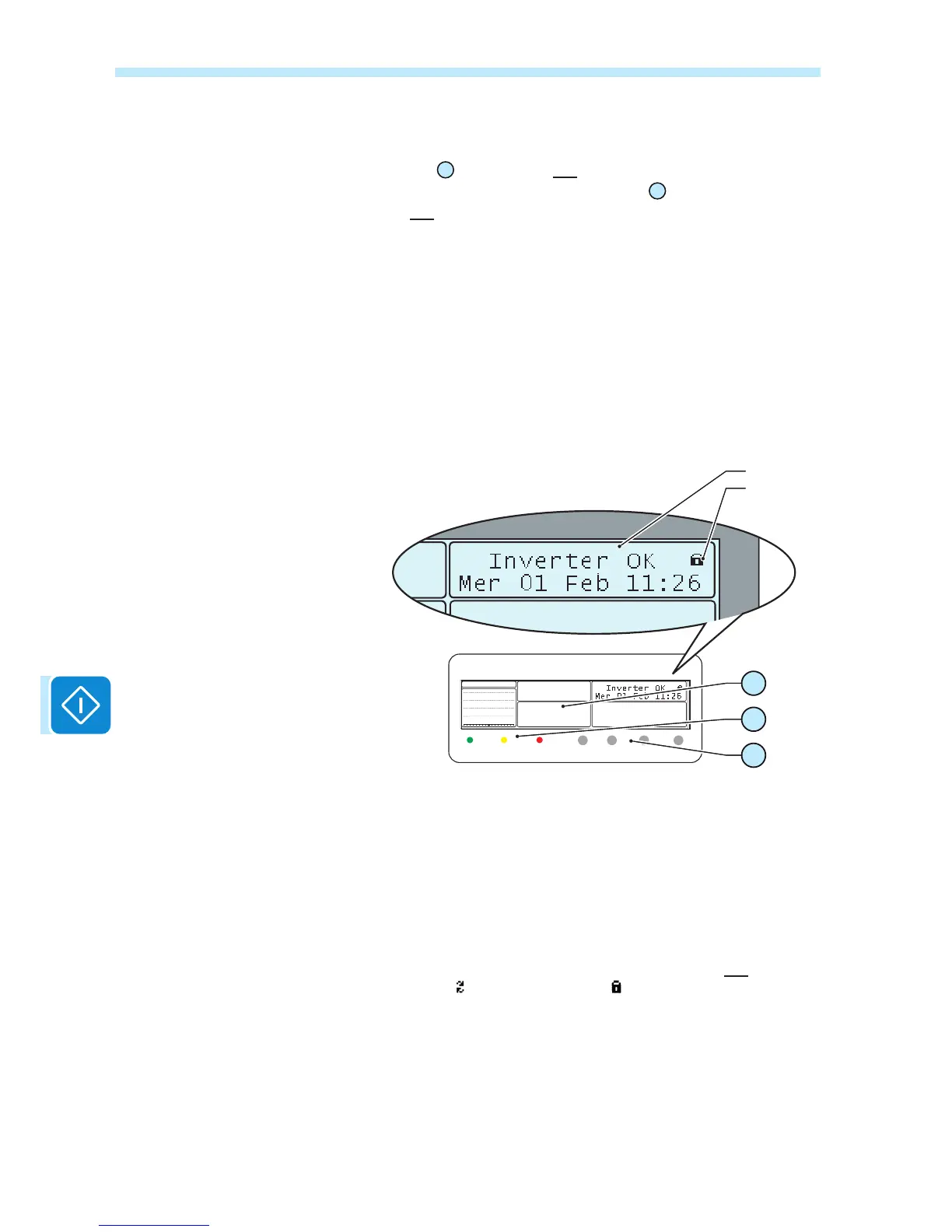

The display
23
has a section b10 (graphic display) for moving through
the menu using the buttons of the LED panel
25
.
Section b10 consists of 2 lines with 16 characters per line and can be
used to:
• Cycle through the general information on:
- Operating status and error/warning code indications
- Inverter identication details
- Active and reactive power management settings
- Main parameters measured;
• Display statistical data;
• Display service messages for the operator;
• Change the inverter settings.
POWER ALARM GFI ESC UP DOWN ENTER
b23
b10
23
25
24
General information
While the inverter is operating, the display shows various items of infor-
mation on the main parameters measured, the operating conditions and
the inverter’s operating status.
The display cycles through the information when the icon b23 shows two
curved arrows ; if it shows a padlock it means that the display of in-
formation is locked and the UP and DOWN buttons can be used to scroll
through the screens of information instead. You can switch between the
two display modes by pressing the ENTER button.
The sequence of screens displayed is shown below, with a description of
the parameters monitored.
