8 - Maintenance

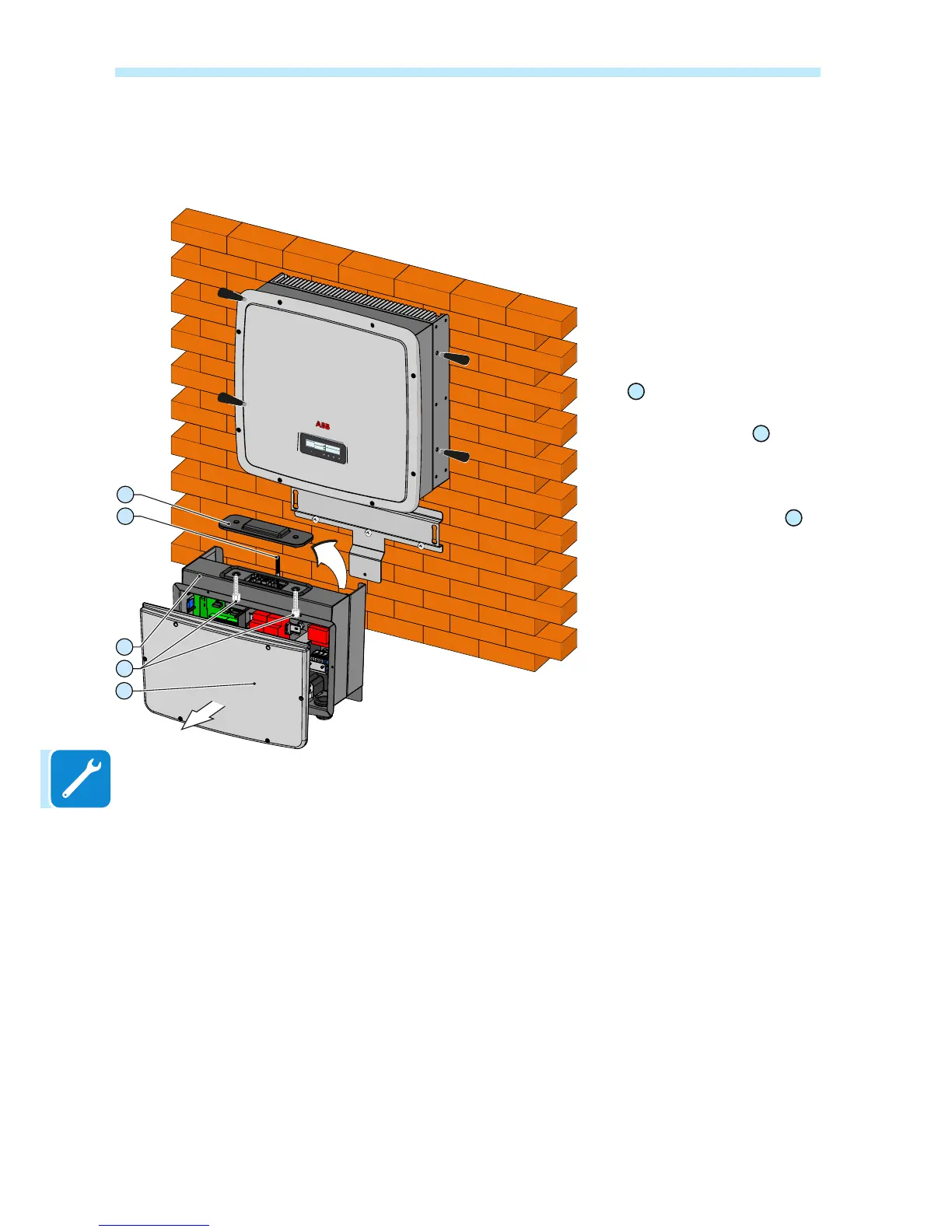

Dismantling the Wiring Box
Procedure for dismantling the Wiring Box only:
• Slacken the 6 screws holding the
cover of the Wiring Box
• Remove all connecting cables
coming from outside the box.
• Slacken the two screws on con-
nector
07
inside the Wiring Box
• Slacken the lock screw
27
on the
underside
• Separate the two parts, unscrewing
the screw holding them together
05
• Remove the Wiring Box, detach-
ing it from the bracket
• Put the Wiring Box cover back in
place and tighten the 6 screws
PO
W
ER
AL
A
RM G
FI
ESC
UP
D
OWN ENTE
R
TRIO
04
05
02
08
07
