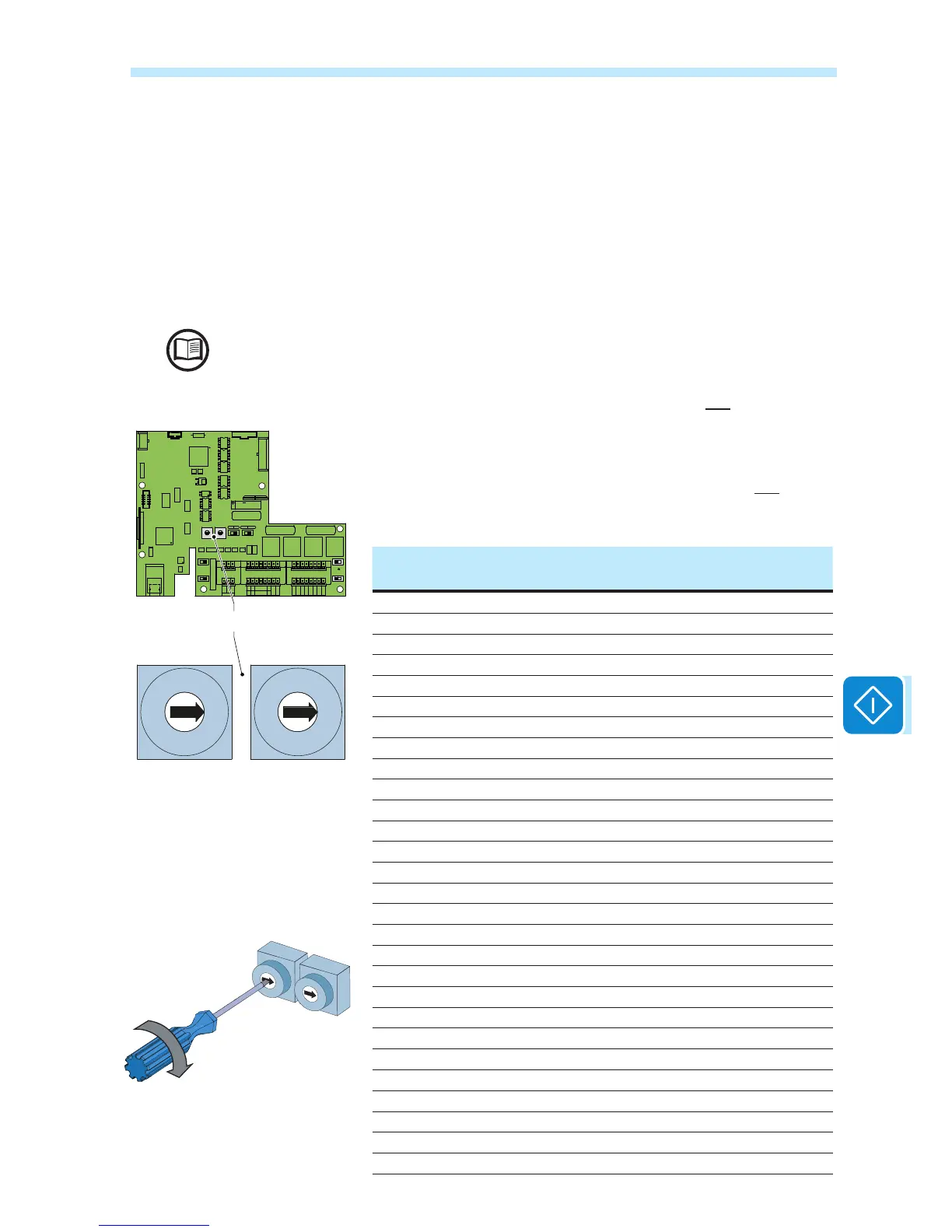

7 - Operation
Preliminary operations before commissioning
In order to commission the inverter it is necessary to carry out certain
preliminary operation to ensure the inverter operates properly.
Grid standard setting of the country and language display
There are different grid parameters (dictated by the electricity distributor)
according to the country in which the inverter is installed.
Setting the grid standard for the country of installation is a necessary operation before com-
missioning, and the installer must know the correct standard to be congured.
The inverter is congured using the rotary switches a05.
Before turning the rotary switches, make sure the inverter is switched off!
The table below shows which country grid standard and menu language
are assigned to the various positions of the rotary switches a05
Table: country standard and language
Switch Country Grid Standard Display
language
Displayed
name
1 2
0 0 NON-ASSIGNED ENGLISH
0 1 GERMANY VDE 0126 @ 400V GERMAN VDE 0126
0 5 ENEL @ 400V ITALIAN ENEL
0 6 SPAIN RD1699 @ 400V SPANISH RD 1699
0 8 UK - G59 @ 400V ENGLISH UK G59
0 9 IRELAND @ 400V ENGLISH IRELAND
0 A AUSTRALIA @ 400V ENGLISH AS 4777
0 B ISRAEL @ 400V ENGLISH ISRAEL
0 C GERMANY - BDEW @ 400V GERMAN BDEW
0 D FRANCE @ 400V FRENCH FRANCE
0 E NETHERLANDS @ 400V DUTCH NETHERL.
0 F GREECE @ 400V ENGLISH GREECE
1 0 PORTUGAL @ 400V ENGLISH PORTUGAL
1 1 CORSICA @ 400V FRENCH CORSICA
1 2 HUNGARY @ 400V ENGLISH HUNGARY
1 4 KOREA @ 380V ENGLISH KOREA
1 5 TAIWAN @ 400V ENGLISH TAIWAN
1 6 CHECA Republic @ 400V CZECH CZECH
1 7 GERMANY-VDE AR-N-4105@400V GERMAN VDE 4105
1 8 CEI-021 @ 400V EXTERNAL Prot. ITALIAN CEI021 EX
1 B SOUTH AFRICA @ 400V ENGLISH S.AFRICA
1 C SPAIN RD 1565 @ 400V SPANISH RD 1565
1 D BELG C10-11 100% @ 400V FRENCH C1011 100
1 E BELG C10-11 110% @ 400V FRENCH C1011 110
1 F BRAZIL @ 380V ENGLISH BRAZIL
2 0 TURKEY LV @400V ENGLISH TURKEY LV
2 1 ROMANIA @400V ENGLISH ROMANIA
2 2 SLOVENIA @400V ENGLISH SLOVENIA
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1
2
CARD
J10
PC
OFF
TERM.
120
OFF
J8
ON
PMU
S2
S4
ON
PC
PMU
J9
PMU -T/R
J6
CARD
COM
PMU +T/R
GND COM
+5V OUT
R ON/OFF
J4
PC
SH
J7
PC +T/R PC -T/R
GND
RTD3
RTD3
24V
-WTACH
J5
+WTACH
PT100
RTD2
RTD2
PT1000
J3
J2
PMU
CR2032
A2
COM
A2
RTD1
RTD1
A1
A1
COM
S6
NORM
S3
S7
COUNTRY/LANG SEL
K1
S8
MEMORY
ALARM
NC
C
BT1
NO
S5
PAR IND SERV
A1
J16
J14
J11
AN2 AN1
V
mA
V
mA
S1
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1
2
S7
S8
a05
