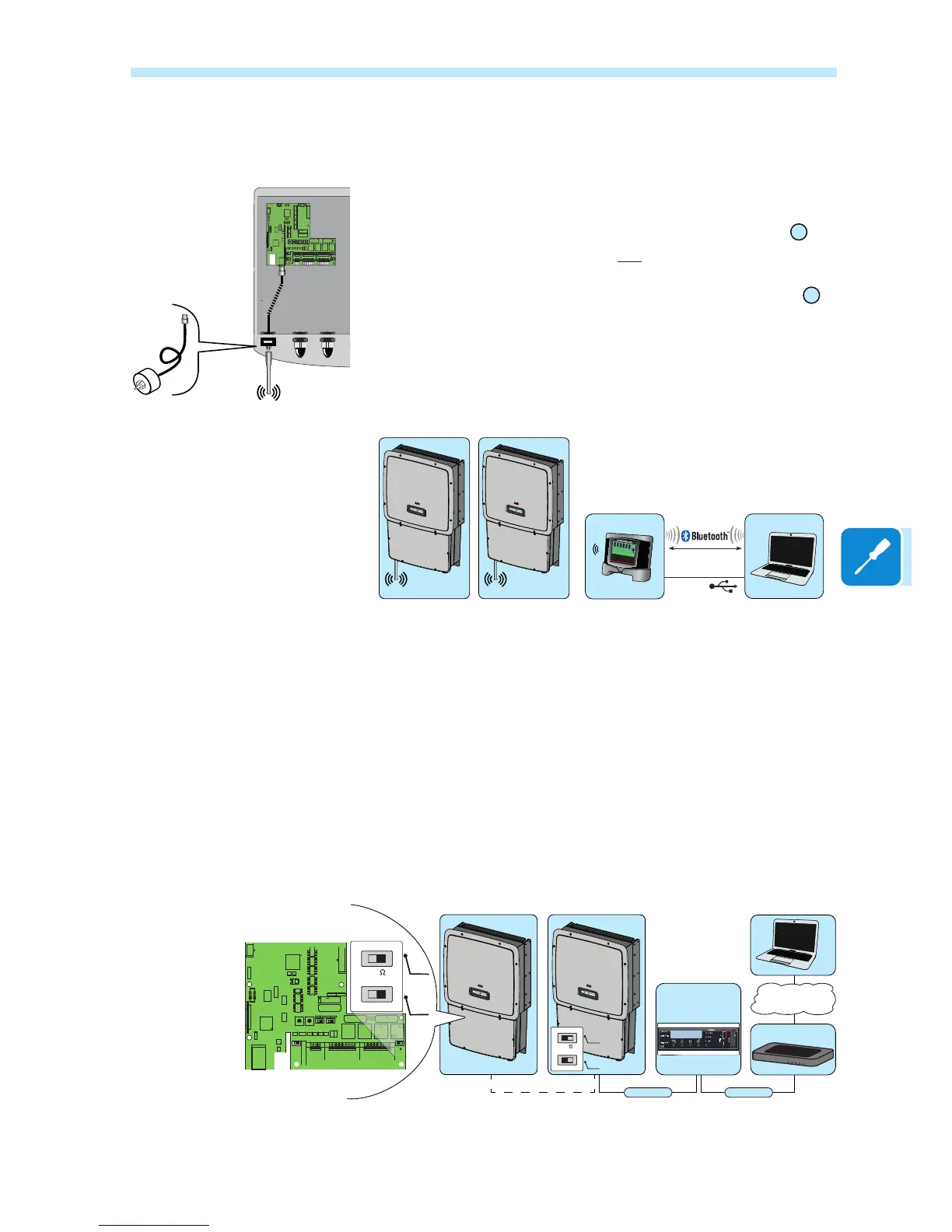

Monitoring system via PVI-DESKTOP and PVI-RADIOMODULE
The PVI-RADIOMODULE board is an accessory which adds a wireless
(radio) communication line to the RS485 line for the transmission of data
to the monitoring device (PVI-DESKTOP).
The radiomodule board is installed on the communication board
09
ver-
tically connecting the two connectors a03 (J11 / J14).
In its turn, the ra-
diomodule is connected to a cable which ends with an antenna which
is installed outside the inverter in place of the service cable gland
10
of
size M20.
The monitoring is done by using the PVI-DESKTOP device. The device
can be connected to a PC via a Bluetooth connection (BT version) or via
a USB cable in order to download statistical information or to update the
rmware.
or
Software
“Aurora
Communicator”
USB 2.0
PO
WER ALARM
GFI
ESC
UP DO
WN
E
N
TE
R
TRIO
PO
WER AL
AR
M
GFI
ESC
UP DO
W
N
ENT
E
R
TRIO
Monitoring system via PVI-AEC-EVO
The PVI-AEC-EVO is an ideal device for complete monitoring of ABB
inverters. The device sends the data to the web portal where the data
can be consulted remotely via online access. The main characteristics
of the device are:
- 3 analogue inputs to connect the environmental sensors
- 6 digital inputs to acquire impulse signals from energy meters or status
signal meters.
- Digital outputs to generate impulses that are proportionate to the ener-
gy produced by the system
- Availability of accessory expansion modules for data transmission
through a GPRS data signal and for back-up should the grid voltage fail.
P
OWER
ALARM
GFI
ESC
UP
DOW
N
ENTER
TRIO
RS485 PC Ethernet
Monitoring
System
Router
Owner Protocol
web portal
“Aurora Vision”
S4
PMU
PC
S2
OFF ON
OFF ON
a13
a12
TERM.
120
P
OWER
ALARM
GFI
ES
C
UP
DO
WN
ENTER
TRIO
Web Portal
“Aurora Vision”
CARD
J10
PC
TERM.
120
OFF
J8
S4
ON
PC
PMU
J9
J6
CARD
COM
J4
PC
J7J5
J3
J2
PMU
CR2032
S6
NORM
S3
S7
COUNTRY/LANG SEL
S8
MEMORY
BT1
S5
PAR IND SERV
A1
J16
J14
J11
AN1
V
mA
S4
PMU
PC
S2
OFF ON
OFF ON
a13
a12
TERM.
120
To Next Page
