ABB UMC100-FBP User Manual

- 140 -UMC100-FBP
Universal Motor Controller
UMC100-FBP
Technical Description
FieldBusPlug / Issue: 03.2012
M
3
DOC DO0 DO1 DO2
24VDC
10 11
6 7 8 9
24VDC Out
12
13 14 15 16 17 18
DI0 DI1 DI2 DI3 DI4 DI5
UMC100
UMC- PA N
Fieldbus Plug
0V
GND (24VDC)
690V/400V
5
reverse rückwärts
max.
200mA
Start For
Start Rev
K1*
K2*
k2
k1
forwards vorwärts
N/-
Fault / Fehler
k3
24VDC
A1
S13
S14
S24
A2
0V
L/+
13
23
14
24
K3*
N/-
RT9
Fault Reset Fehler Quitt.
X1
K1
K2
S34
Y14
E-Stop Signalling to UMC
K3
Reversing Starter, Category 4

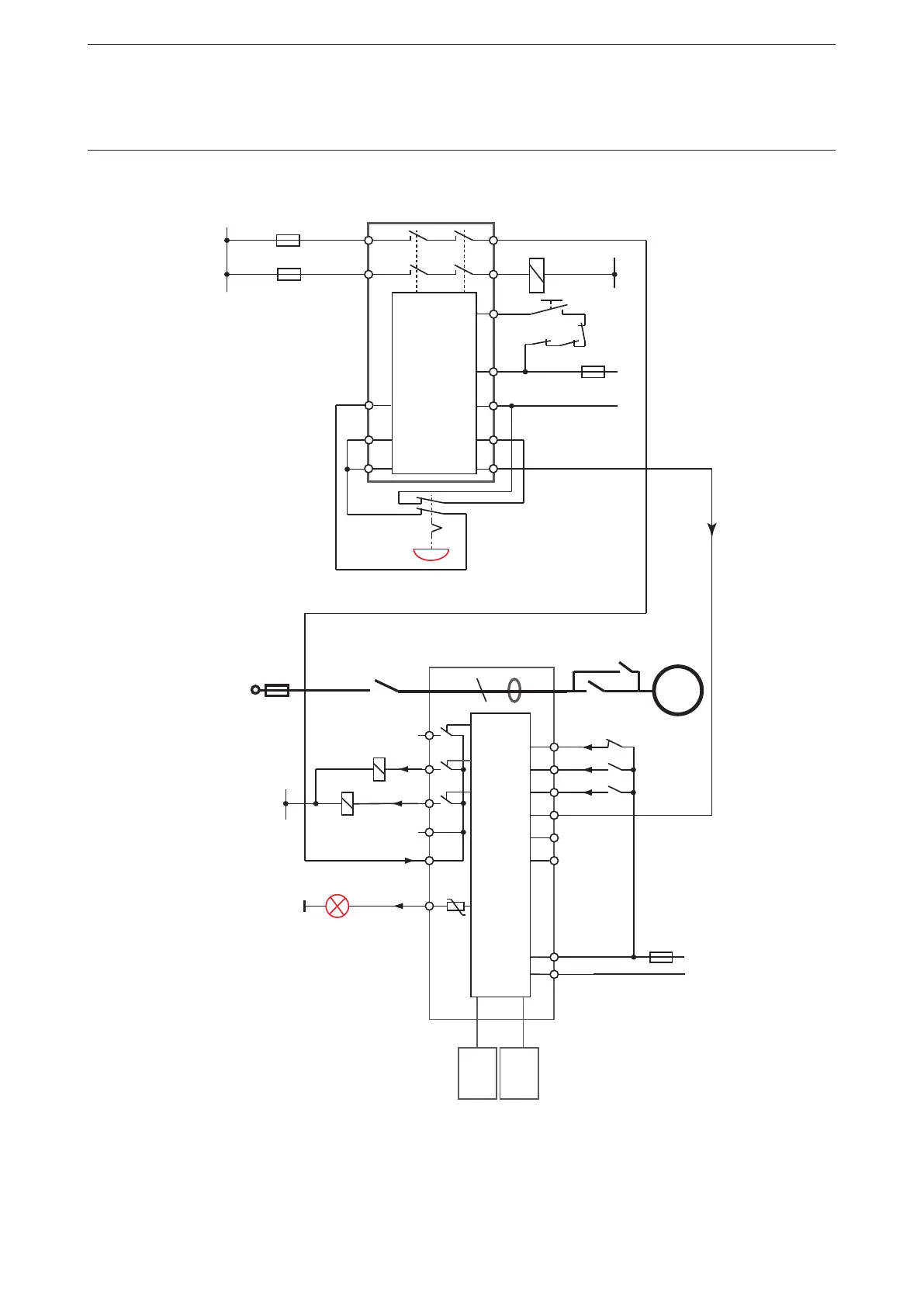

Circuit diagram showing safe-tripping with the help of an emergency stop relay. Carefully read the RT9
manual on how to use this device.
*) Use spark suppression for larger contactors and also interface relays to maintain the service life of the
UMC100 and RT9 internal relays.
