- 52 -UMC100-FBP
Universal Motor Controller
UMC100-FBP
Technical Description
FieldBusPlug / Issue: 03.2012
Voltage based Protection Functions

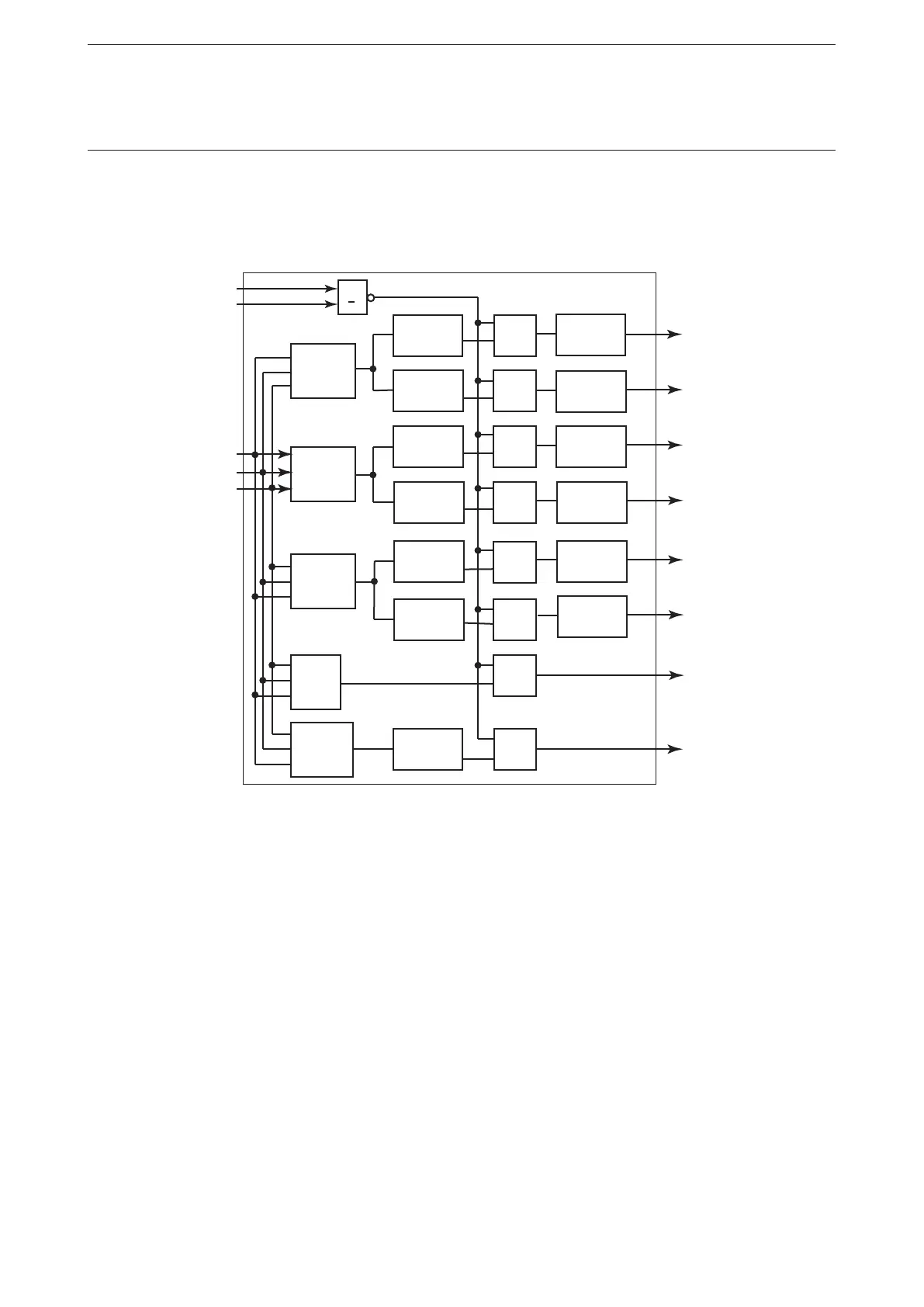

The following block diagram provides an overview of the signal flow related to voltage supervision and
protection. The different voltage protection functions are usually always active (also if the motor is in stop
mode). There are two exceptions a) if the UMC is in test position and b) if a voltage dip was detected.
UL1L2
UL2L3
UL3L1
Min
U > U high
warn level
U > U high
trip level
U < U low
warn level
U < U low
trip level
U high
warn delay
U high
trip delay
U low
warn delay
U low
trip delay
Imbalance
Calculation
U
imb > U imb.
warn level
U
imb > U imb.
trip level
U imb.
warn delay
U imb
trip delay
Phase
loss
detection
Voltage Phase
Loss
Overvoltage Warn
Overvoltage Trip
Undervoltage Warn
Undervoltage Trip
Voltage Imb. Warn
Voltage Imb. Trip
&
&
&
&
&
&
&
Voltage dip
Disable
>
Max
THD MAX
Calculation
THD >
warn level
THD warn
&
 Signal flow of the voltage based protection and monitoring functions.
Total Harmonic Distortion
This function measures harmonic distortions in the connected mains. Harmonic distortions can be caused
by variable speed drives or other electronic devices. High harmonics can result in accelerated degradati-
on of insulation and loss of service life of a motor. In case of distortions above the adjustable warnlevel, it
is recommended to check the supply mains for faults or noisy equipment. The THD is defined as the ratio
of the sum of the powers of all harmonic components to the power of the fundamental frequency.
A threshold can be set to trigger a warning if the THD is too high.
