Connecting the UMC100-PAN LCD Panel
The UMC100-PAN LCD panel can be used for the following purposes:
•Configuration of the UMC100-FBP
•Control of the motor and fault reset
•Monitoring of all IO signals, motor current and maintenance counters

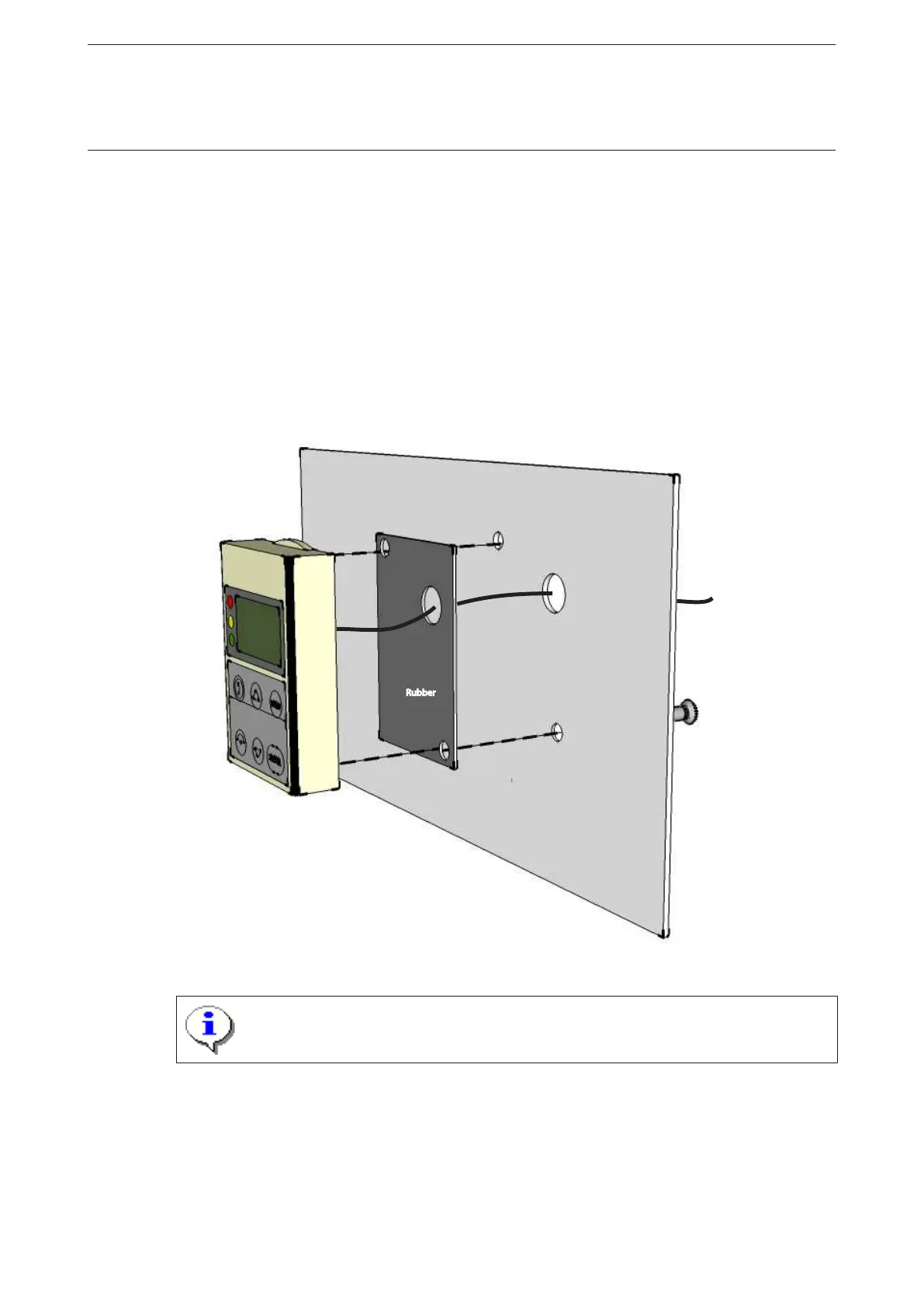

The operator panel UMC100-PAN is mainly designed for mounting it on the front panel of a motor feeder
or in a switchgear cabinet. A door mounting kit is provided for this purpose. With the mounting kit the
degree of protection is IP54.
The UMC100-PAN can also be plugged directly on the UMC100 itself.
Extension cable to
the UMC100
The UMC100-PAN is incompatible with the UMC22-PAN and cannot be used with the
UMC22-FBP but only with UMC100-FBP.
