- 152 -
UMC100-FBP
Universal Motor Contr
oller
UMC100-FBP
T
echnical Description
FieldBusPlug / Issue: 03.2012
56.5
90
87.5
70
97.5
105
ca. 40
103
11
0
11
20
20
15
18
17
16
15
14
13
12
11
10
DI
DI
DI
DI
DI
DI
24V
24
0
5
4
3
2
1
0
Out
V
V
Powe
r
T1
8
DO
1
7
DO
0
6
DO
C
5
DO
C
9
DO
2
8
7
6
59
T2
34
UMC2
2
READY
MOT
.ON
F
AUL
T
.
Relay
230V
AC
1A
Inputs
24VDC
DC
Ø
4,3 mm
2CDC342003F0011.eps

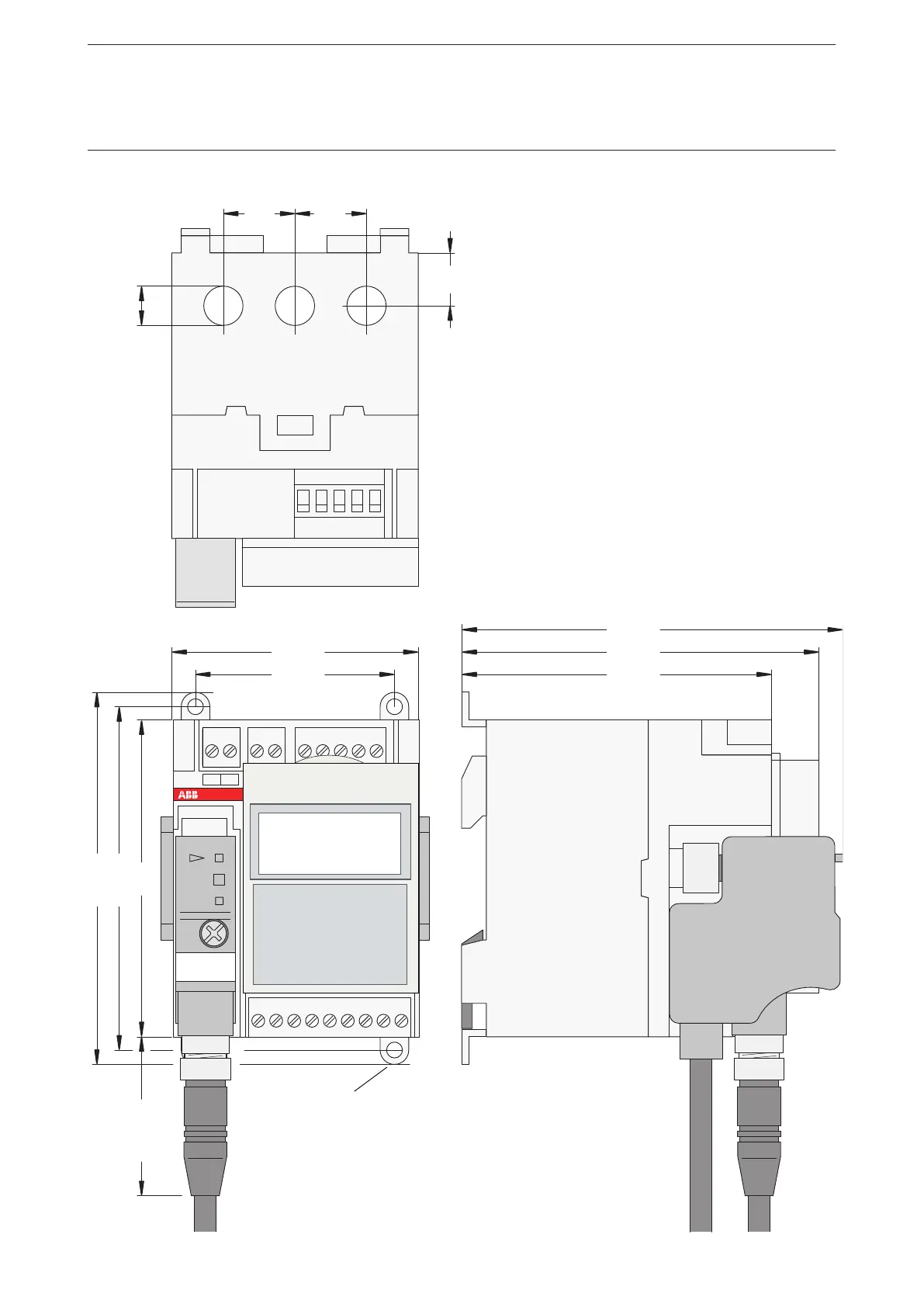

Dimensions UMC100
151
153
Table of Contents
Default Chapter
3
Table of Contents
3
New Features in Comparison to Preceeding Versions
7
1 System Overview
9
Function Overview
9
Compatibility to UMC22
10
Description of Components
11
2 Installation
17
Assembly and Disassembly of UMC100-FBP and IO Modules
17
Connecting the IO Modules DX111 and DX122
17
Wiring Dx1Xx Inputs and Outputs
18
Connecting the Vi15X Voltage Module
19
Wiring Vi15X Inputs and Outputs
20
Connecting the Vi15X Voltage Module and a Dx1Xx IO Module
20
Connecting Contactors
21
Motor Wiring
23
Connecting External Current Transformers (Cts)
24
Connecting the UMC100-PAN LCD Panel
26
Using the UMC100 in a PROFIBUS DP Network
27
Using the UMC100 in a Devicenet Network
28
Using the UMC100 in a Canopen Network
29
Using the UMC100 in a MODBUS RTU Network
30
Usage in Draw-Out Systems
31
3 Commissioning
33
Commissioning Steps
33
Test Position
35
4 Configuring the Motor Protection Functions
37
General Information
37
EOL and Current Based Protection Functions
37
Earth Fault Protection
47
Thermistor (PTC) Motor Protection Acc. to en 60947-8 (Type a Sensors)
49
Voltage and Power Protection Functions
50
Total Harmonic Distortion
52
Voltage Dips, Load Shedding
55
5 Configuring the Motor Management Functions
59
Starting and Stopping the Motor
59
Limit the Number of Starts
64
Emergency Start
64
Checkback Monitoring
66
Using the Digital UMC Inputs
66
Control Function Transparent
69
Control Function Overload Relay
71
Control Function Direct Starter (DOL)
73
Control Function Reversing Starter (REV)
76
Control Function Star-Delta Starter
79
Control Function Pole-Changing Starter
82
Control Function Actuator 1 - 4
85
6 Configuring the Fieldbus Communication
91
Setting the Bus Address
91
Address Check When Using UMC in Motor Control Centres
91
Defining the Bus Fault Reaction
92
Ignore Block Parameters
93
7 Using Expansion Modules
95
Using a Digital IO Module (DX111/122)
95
Using a Voltage Module (VI150/155)
96
8 The LCD Control Panel UMC100-PAN
97
Overview
97
Monitoring Status Information
98
The Menu Tree
98
Adjusting Parameters
104
Starting and Stopping the Motor
106
9 Error Handling, Maintenance and Service
109
Error Handling of the UMC
109
UMC100 Fault Indication
109
Fault Messages
109
Resetting Parameters to Factory Defaults
114
Resetting the Password
114
Reading, Setting and Resetting Maintenance Counters
115
Dx1Xx / Vi15X Status Codes
116
Replacing a UMC100
116
Replacing a Dx1Xx IO Module
116
Replacing a Vi15X IO Module
116
Requesting Support
116
A1 Parameters and Data Structures on a Fieldbus
117
Command Data
117
Accessing Data on PROFIBUS
119
Accessing Data on Modbus
119
Accessing Data on Devicenet
119
Accessing Data on Canopen
119
Parameter Organisation
120
Motor Management Parameters
120
Protection Parameters
125
Communication Parameters
129
IO Module Parameters
129
UMC Display Parameters
133
Function Block Related Parameters
134
All Parameters Sorted by Parameter Number
135
All Parameters Sorted Alphabetically
137
A2 Circuit Diagrams with Emergency Stop Function
139
Direct Starter, Category 4
139
Reversing Starter, Category 4
140
A3 Technical Data
141
Umc100
141
Performance Data
146
Umc100-Pan
146
DX111 and DX122
146
VI150 and VI155
150
EMC UMC100 and Dx1Xx / Vi15X Modules
151
Dimensions UMC100
152
Dimensions Expansion Modules
153
Dimensions LCD Panel
