- 97 - UMC100-FBP
Universal Motor Controller
UMC100-FBP
Technical Description
FieldBusPlug / Issue: 03.2012
8 The LCD Control Panel UMC100-PAN
Overview
The UMC100-PAN provides a easy to use multi-language user interface for the UMC100. In this chapter
you will find the following information:
•menu structure
•how to operate the UMC100 with the LCD panel
•how to acknowledge faults
•how to watch process data
•how to configure the UMC100 using the LCD panel
•how to use the LCD panel as parameter storage (e.g. for backup purposes)
See the "Installation" chapter if you are looking for information on how to connect and wire the LCD
panel.
The UMC100-PAN can be either plugged directly on the UMC or mounted on the switchgear door using

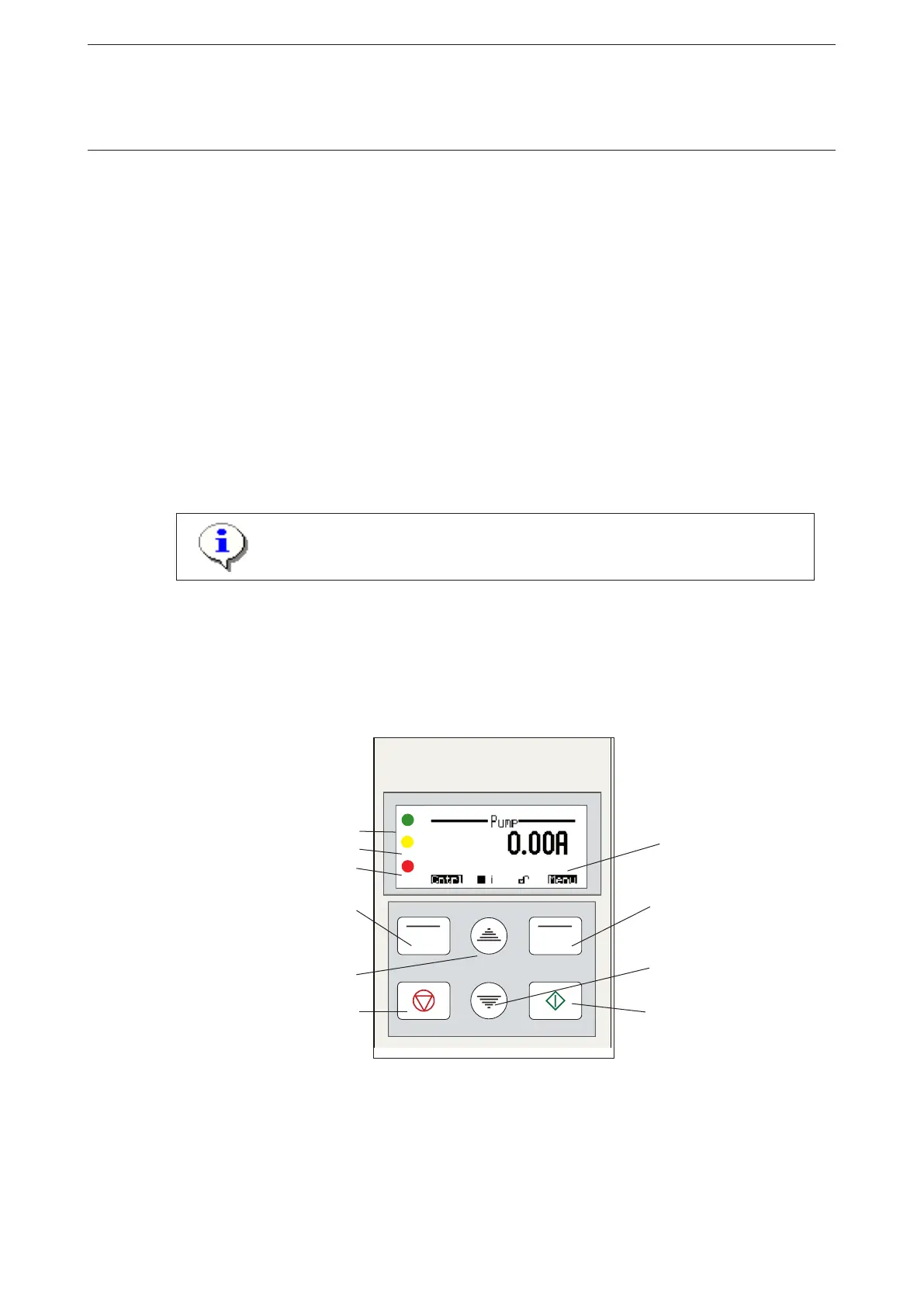

the door mounting kit. The following diagram shows the LCD panel with its buttons, LEDs and LCD area.
This chapter describes how the parameters can be accessed from the UMC100-PAN.
Please look into section "Parameters and Data-Structures on a Fieldbus" for an expla-
nation of the parameters and also for an alphabetical list.
LCD with background
lightning
Right hot key: Context
- specific function: e.g
"Enter Configuration Menu"
Start motorStop motor
Left hot key: Context
- specific function: e.g.
"Enter Control Menu"
Status LEDs:
Green: Ready
Yellow: Running
Red: Fault
Scroll upwards
Scroll downwards
