- 35 - UMC100-FBP
Universal Motor Controller
UMC100-FBP
Technical Description
FieldBusPlug / Issue: 03.2012
UMC
UTF21
24 V DC
USB
Interface
UMC
FieldBusPlug
Interface
UMC
24 V DC
UMC
24 V DC
UMCwith
FieldBusPlug
PDP22
PDA12
UTP22
USB
Interface
24 V DC
Connection of the Service -
Laptop & PROFIBUS adapter
only when required also in
parallel to the PLC/DCS
PROFIBUS Master
PDA11
PROFIBUS Cable
DSUB9 / DSUB9
Service Laptop
Service Laptop

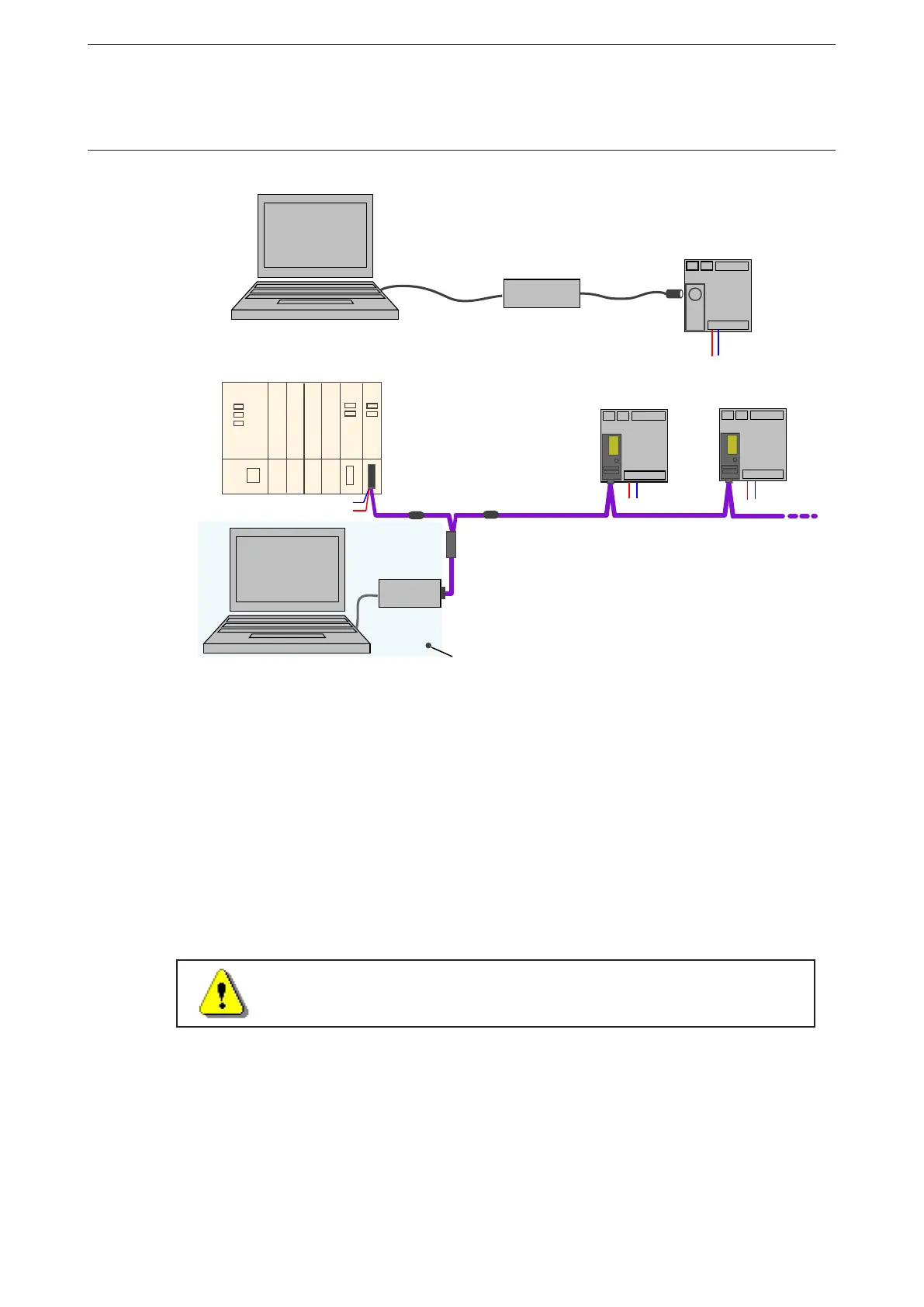

 Connection of a service laptop using UTF21-FBP (point-to-point)
or UTP22-FBP (for a whole PROFIBUS line)
Test Position
It is possible to configure a multifunction input (DI0, DI1 or DI2) to inform the UMC that the feeder is in
test position. If the input signals test position the feeder's main circuit must be isolated from the motor
supply but the control voltage of the UMC must be connected.
During active test position the function of the feeder and its integration into the control system can be
tested. I.e. the motor can be started but the UMC does not trip because of a missing checkback.
Use the parameters Multifunction 0,1,2 to enable this function.
If the feeder is in test position the UMC has disabled the checkback supervision and
other motor current related protection functions. Therefore the test position must be
only active for commissioning purposes.
