Chapter 3 99

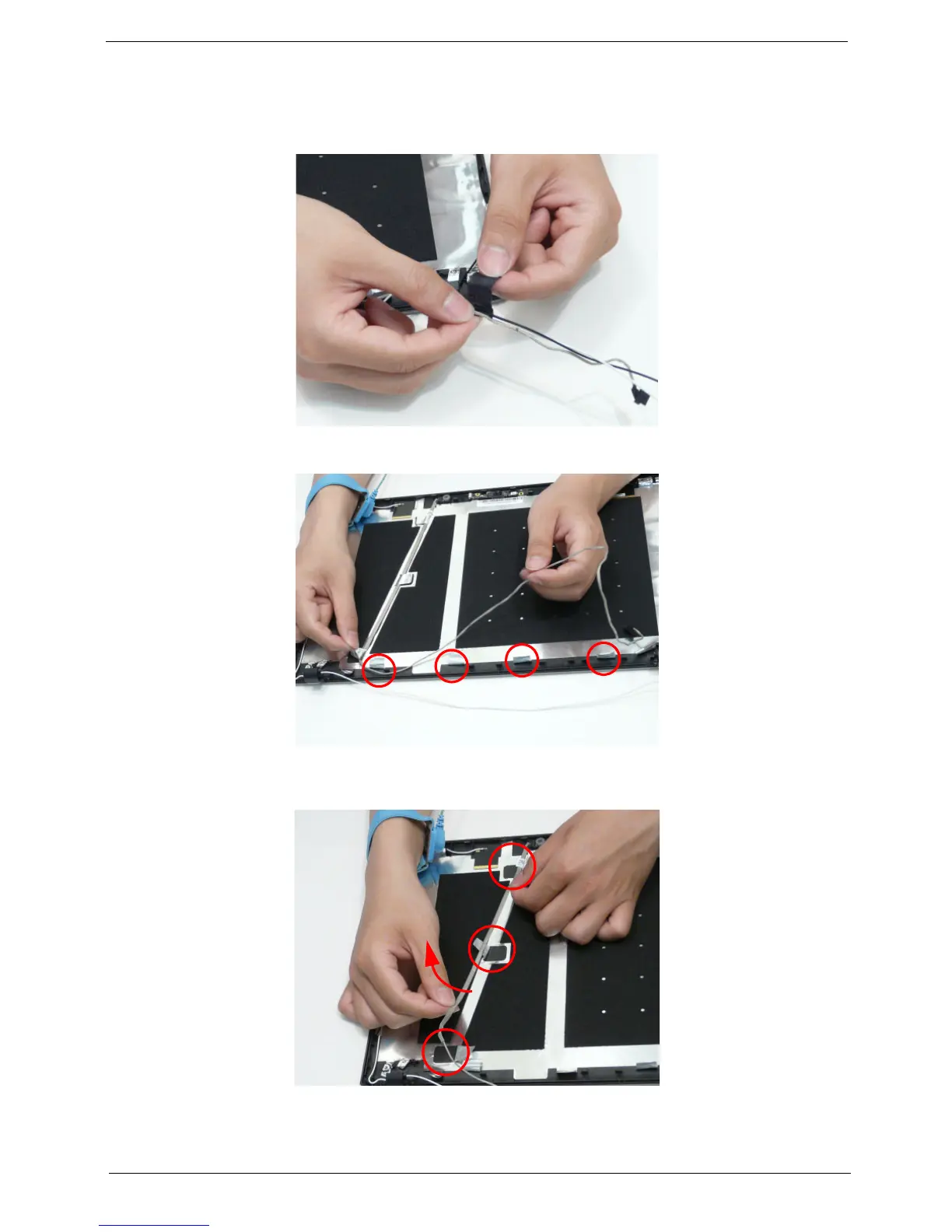

Removing the Microphone
1. See “Removing the LCD Panel” on page 95.
2. Remove the tape securing the Microphone cable to the antenna cables.
3. Remove the Microphone cable from the shielding along the bottom edge of the LCD Cover.
4. Lift up the shielding where it covers the Microphone cable and lift the cable as shown to remove the
adhesive securing it to the LCD Cover.
5. Lift the Microphone Module upward to detach the adhesive holding it in place.
To Next Page
