Acer Aspire 5534 Series Service Guide

Chapter 3 77
Removing the I/O Board
1. See “Removing the Upper Cover” on page 62.

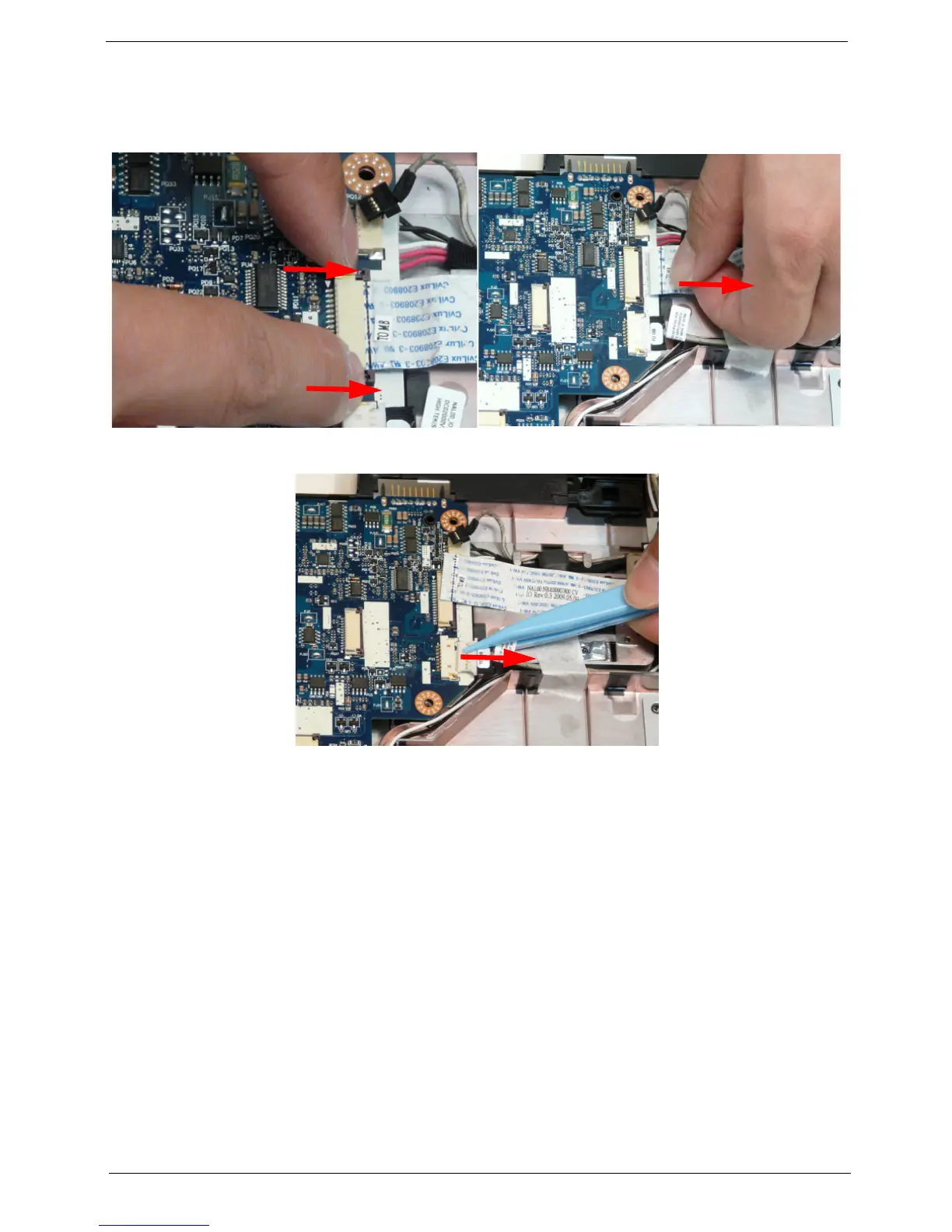

2. Open the locking latch and disconnect the FFC from the Mainboard.
3. Disconnect the cable from the Mainboard.
4. Remove the single screw securing the I/O Board to the Lower Cover.
