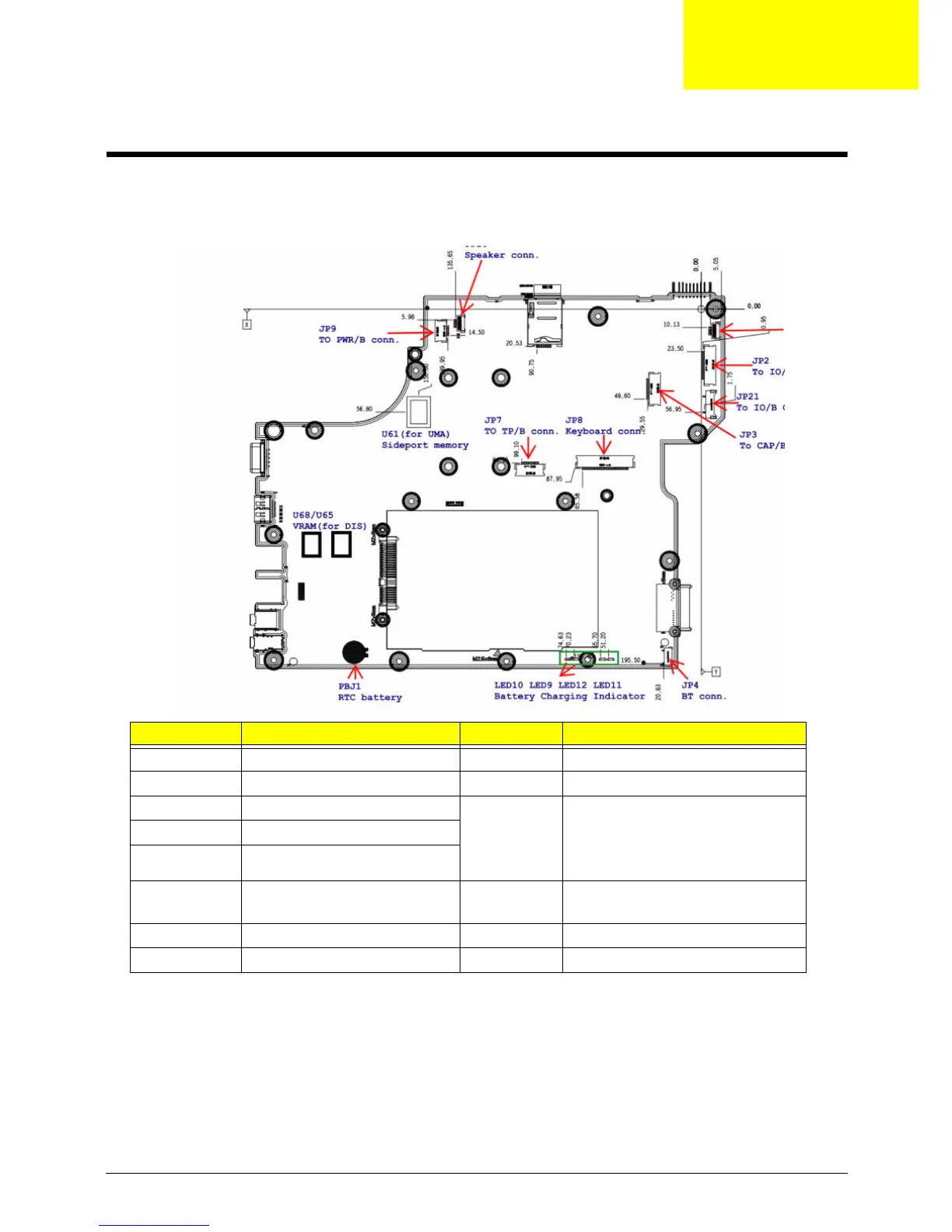

Jumper and Connector Locations
Top View
ITEM DESCRIPTION ITEM DESCRIPTION
JP2 Connect to IO/B (FFC) U61 Side-port memory (for UMA)
JP3 Connect to CAP/B (FFC) U65 / U68 VRAM (for DIS)
JP4 Connect to Bluetooth (Cable) LED9
LED10
LED11
LED12
Battery Charging Indicator
LED10 / LED12 AMB
LED9 / LED11?Blue
JP7 Connect to Touch pad (FFC)
JP8 Connect to Keyboard
JP9 Connect to Power BTN board
(FFC)
JP21 Connect to IO/B (Cable)
JP19 Connect to Digital MIC PBJ1 RTC battery
JP20 Connect to speaker
