174 Chapter 5

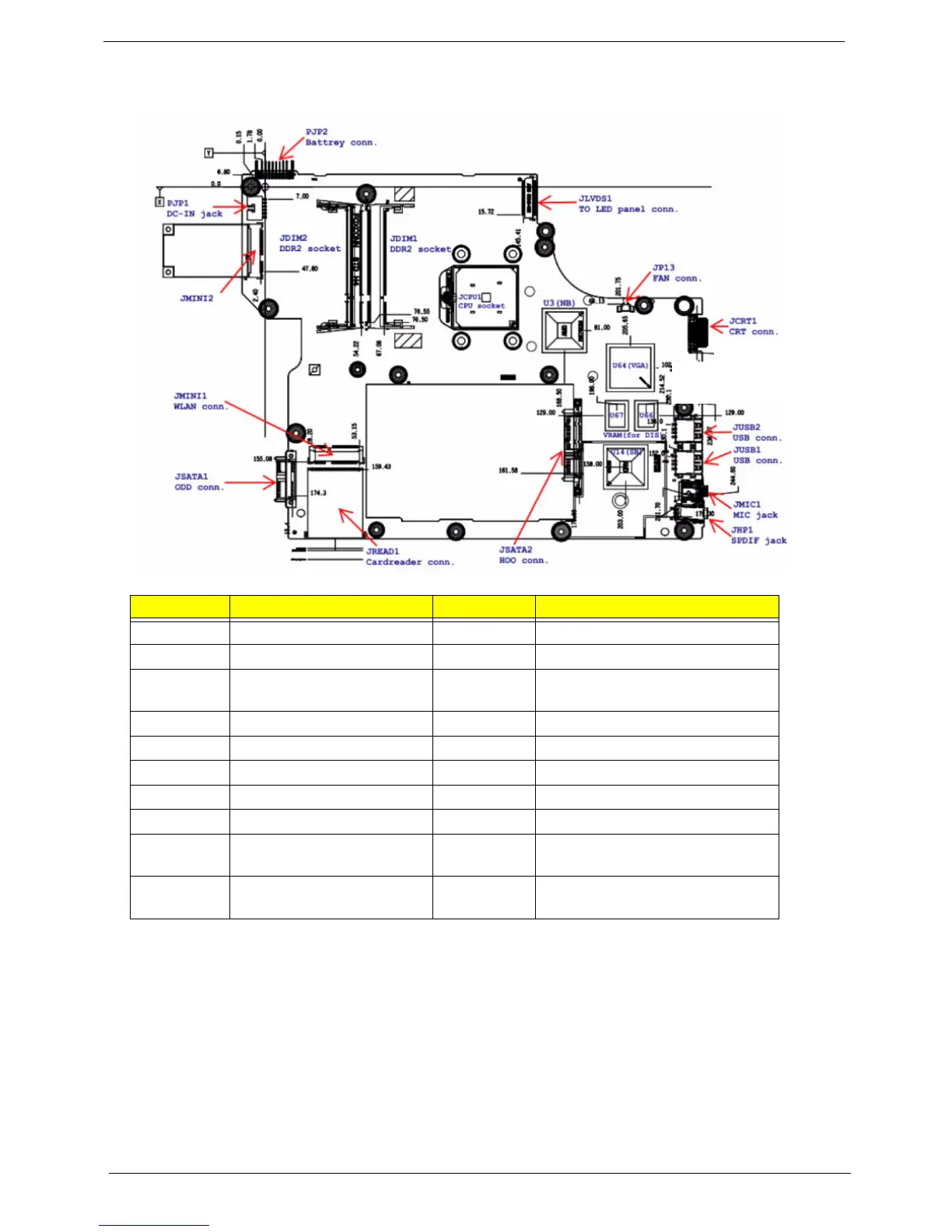

Bottom View
ITEM DESCRIPTION ITEM DESCRIPTION
PJP1 Connect to Battery JHP1 Connect to external SPDIF
PJP2 DC-IN jack JREAD1 Card reader
JDIM1 /
JDIM2
DDR2 Memory socket JCRT1 CRT Connector
JLVDS1 Connect to LED Panel JP13 FAN Connector
JSATA1 Connect to SATA ODD JCPU1 CPU socket
JSATA2 Connect to SATA HDD U3 NB
JMINI1 Connect to WLAN U14 SB
JMINI2 Reserved U64 M92-S2LP VGA
JUSB1 /
JUSB2
USB Connector U66 / U67 VRAM (for DIS)
JMIC1 Connect to external
microphone
To Next Page
