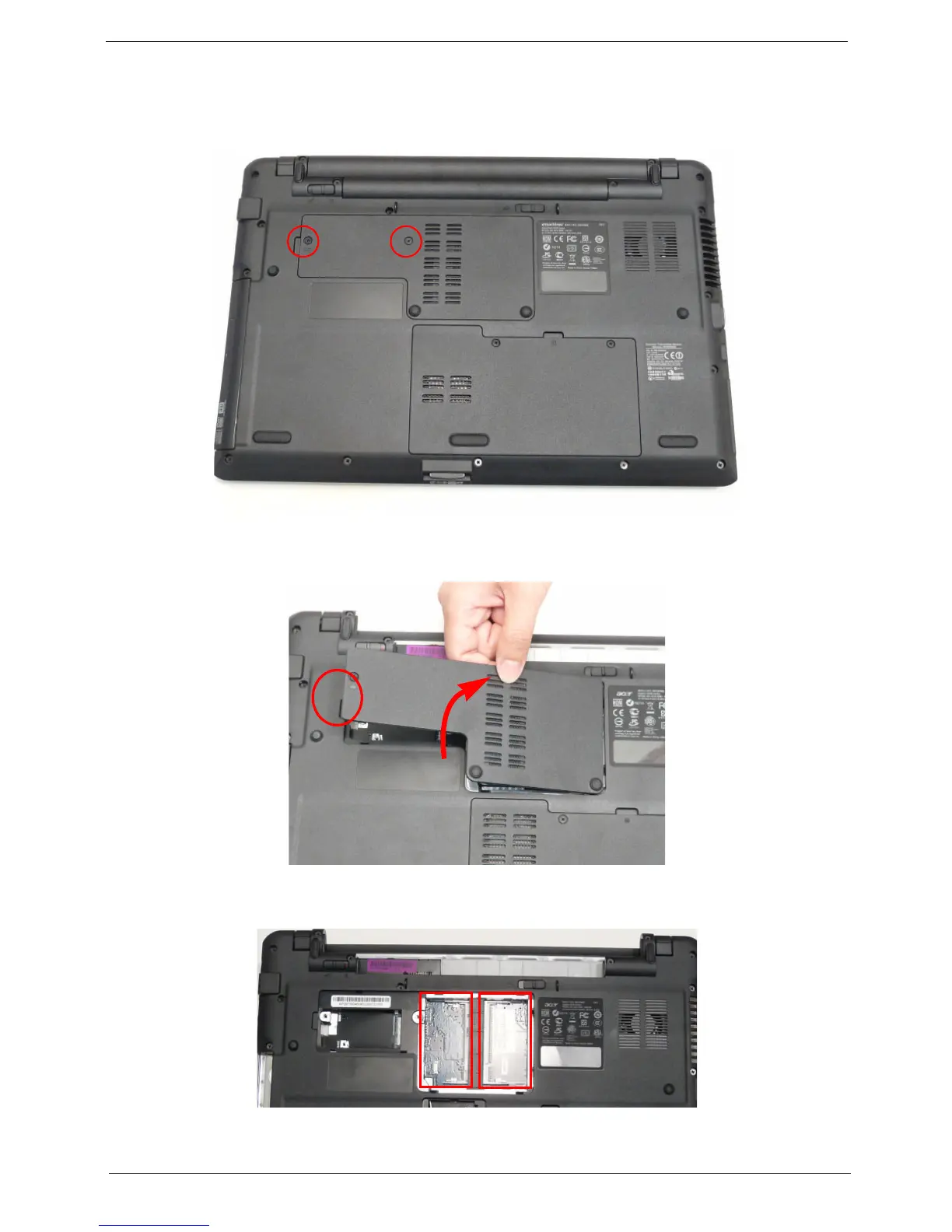

Removing the DIMM Module
1. See “Removing the Battery Pack” on page 46
2. Loosen the two captive screws in the Memory Cover.
3. Lift the Memory Cover up to remove. Pull up using the thumb tab (indicated by the circle below) to release
the seven clips securing the cover in place.
4. Identify the SODIMM to remove. The image below shows the locations of SODIMM slot 0 and SODIMM
slot 1. Slot 0 must be populated first when installing or replacing defective memory.
5. Push out the release latches on both sides of SODIMM socket 1 to release the memory module.
