Acer Aspire 5534 Series Service Guide

Chapter 3 109

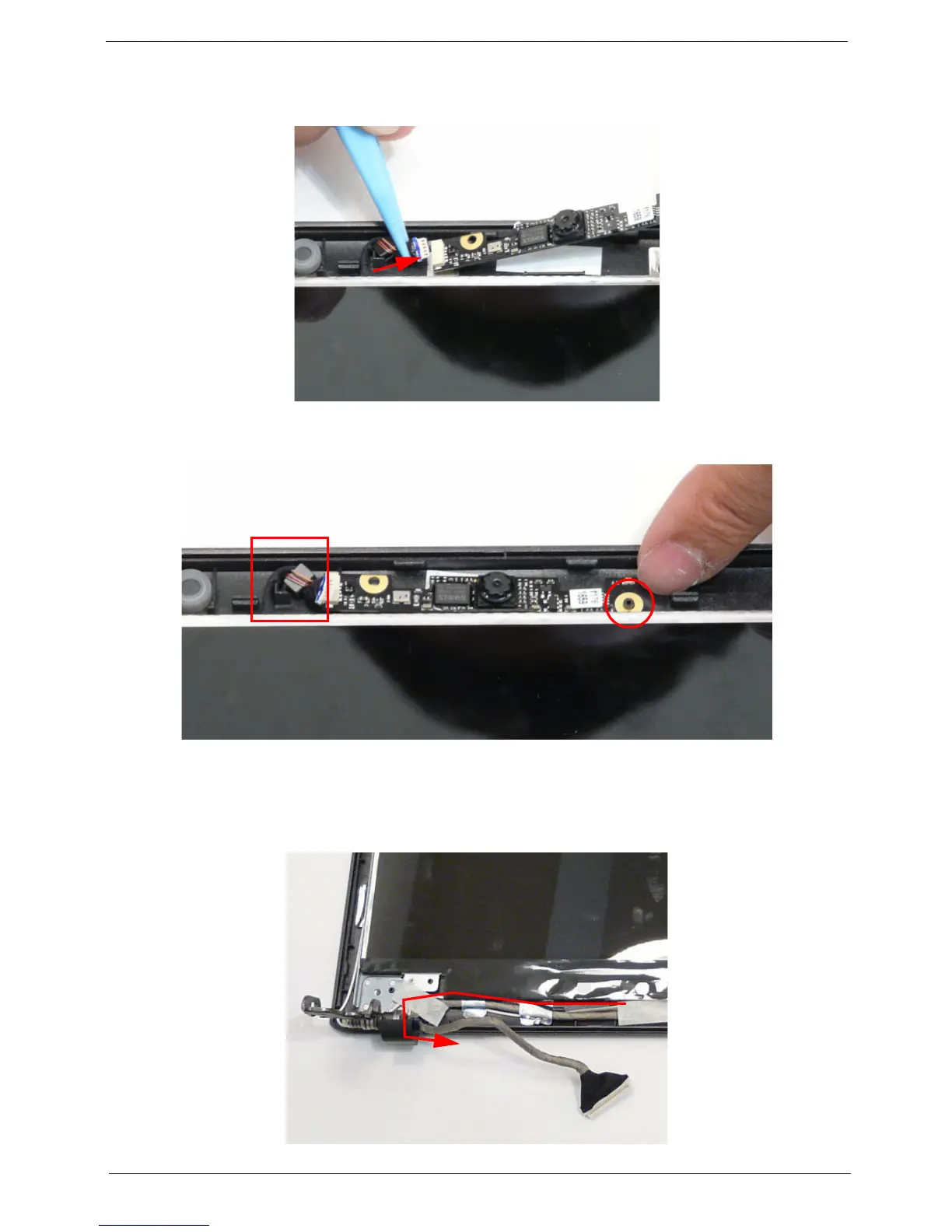

Replacing the Camera Board
1. Connect the cable to the Camera Board as shown.
2. Place the Camera Board into the LCD Module so that the mounting pins are aligned and press down to
secure to the adhesive.
NOTE: Be sure the magnet rests next to the post on the LCD cover as shown.
Replacing the LCD Bezel
1. Route the LVDS cable through the cable channel and hinge cover as shown.
