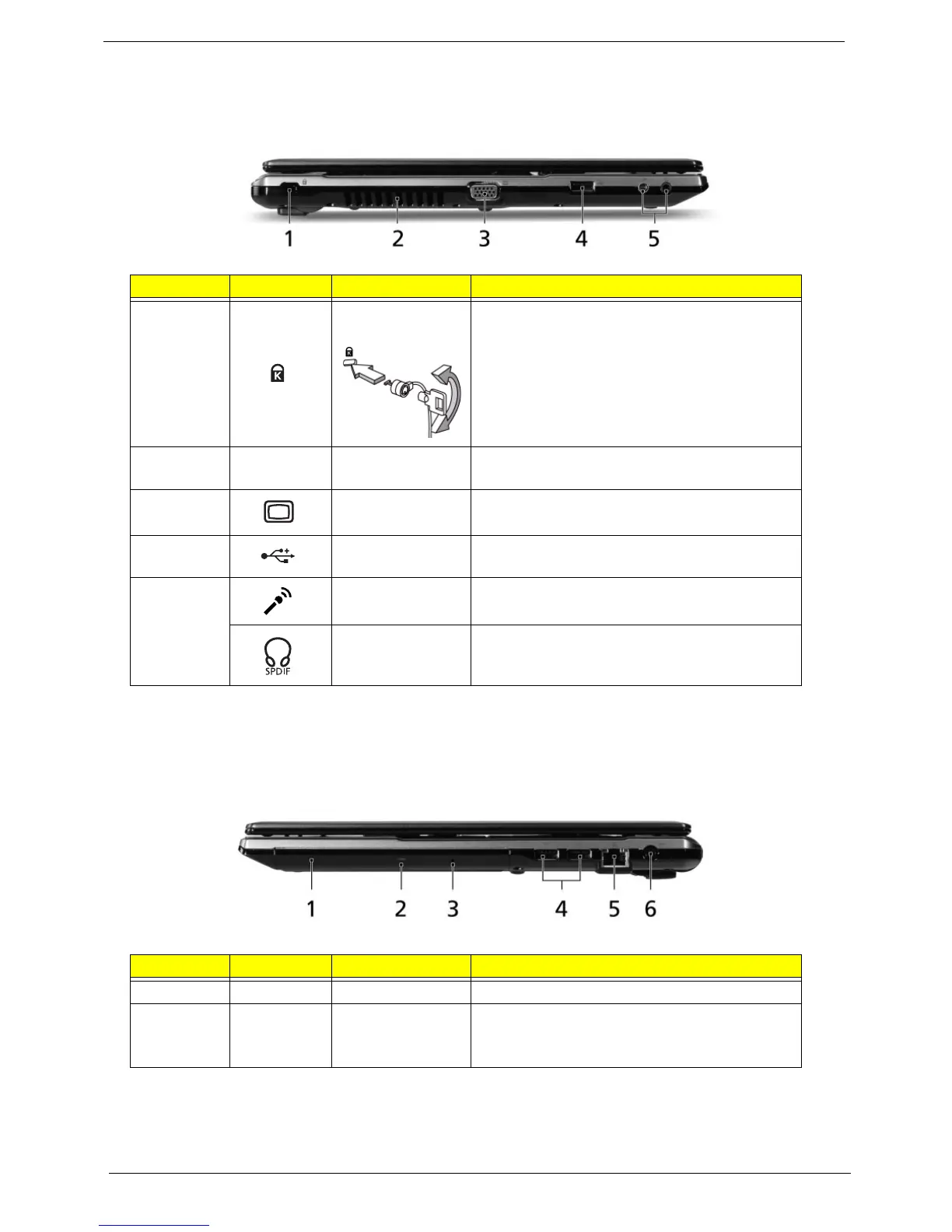

Left View
Right View
No. Icon Item Description
1 Kensington Lock
Slot
Connects to a Kensington-compatible
computer security lock.
Note: Wrap the computer security lock cable
around an immovable object such as a table or
handle of a locked drawer. Insert the lock into
the notch and turn the key to secure the lock.
Some keyless models are also available.
2 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
3 External display
(VGA) port
Connects to a display device (e.g., external
monitor, LCD projector).
4 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse,
USB camera).
5 Microphone-in
jack
Accepts inputs from external microphones.
Headphones/
speaker/ line-out
jack
Connects to audio line-out devices (e.g.,
speakers, headphones).
No. Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk
access
indicator
Lights up when the optical drive is active.
