Chapter 1 7

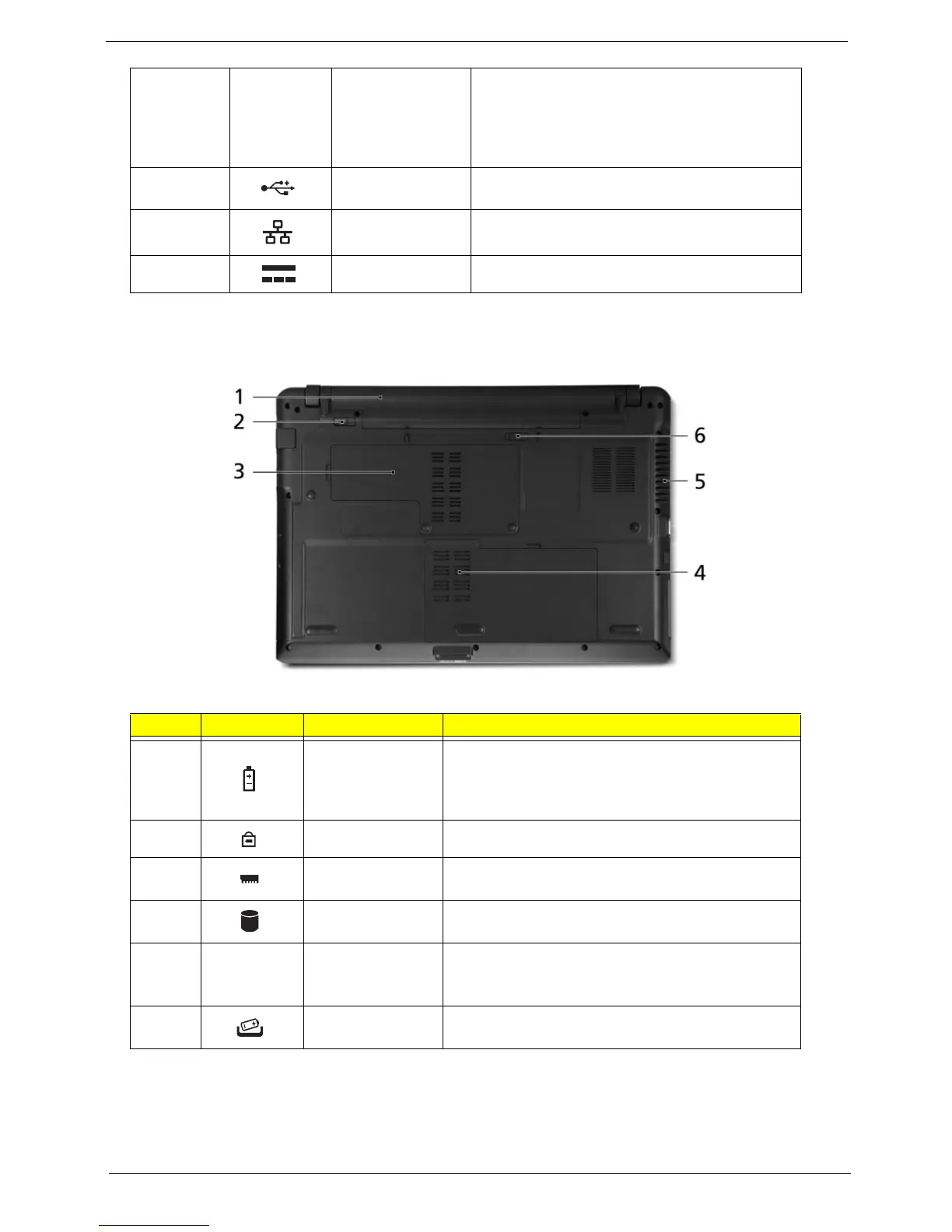

Base View
3 Emergency eject
hole
Ejects the optical drive tray when the computer
is turned off.
Note: Insert a paper clip to the emergency
eject hole to eject the optical drive tray when
the computer is off.
4 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse,
USB camera).
5 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000- based
network.
6 DC-in jack Connects to an AC adapter.
No. Icon Item Description
1 Battery bay Houses the computer's battery pack.
Note: The battery shown is for reference only. Your
PC may have a different battery, depending on the
model purchased.
2 Battery lock Locks the battery in position.
3 Memory
compartment
Houses the computer's main memory.
4 Hard Disk Bay Houses the computer's hard disk (secured with
screws).
5 Ventilation slots
and/or cooling fan
Enable the computer to stay cool, even after
prolonged use.
Note: Do not cover or obstruct the opening of the fan.
6 Battery Release
Latch
Releases the battery for removal.
