Acer Aspire 5534 Series Service Guide

112 Chapter 3
Main Unit Reassembly Process

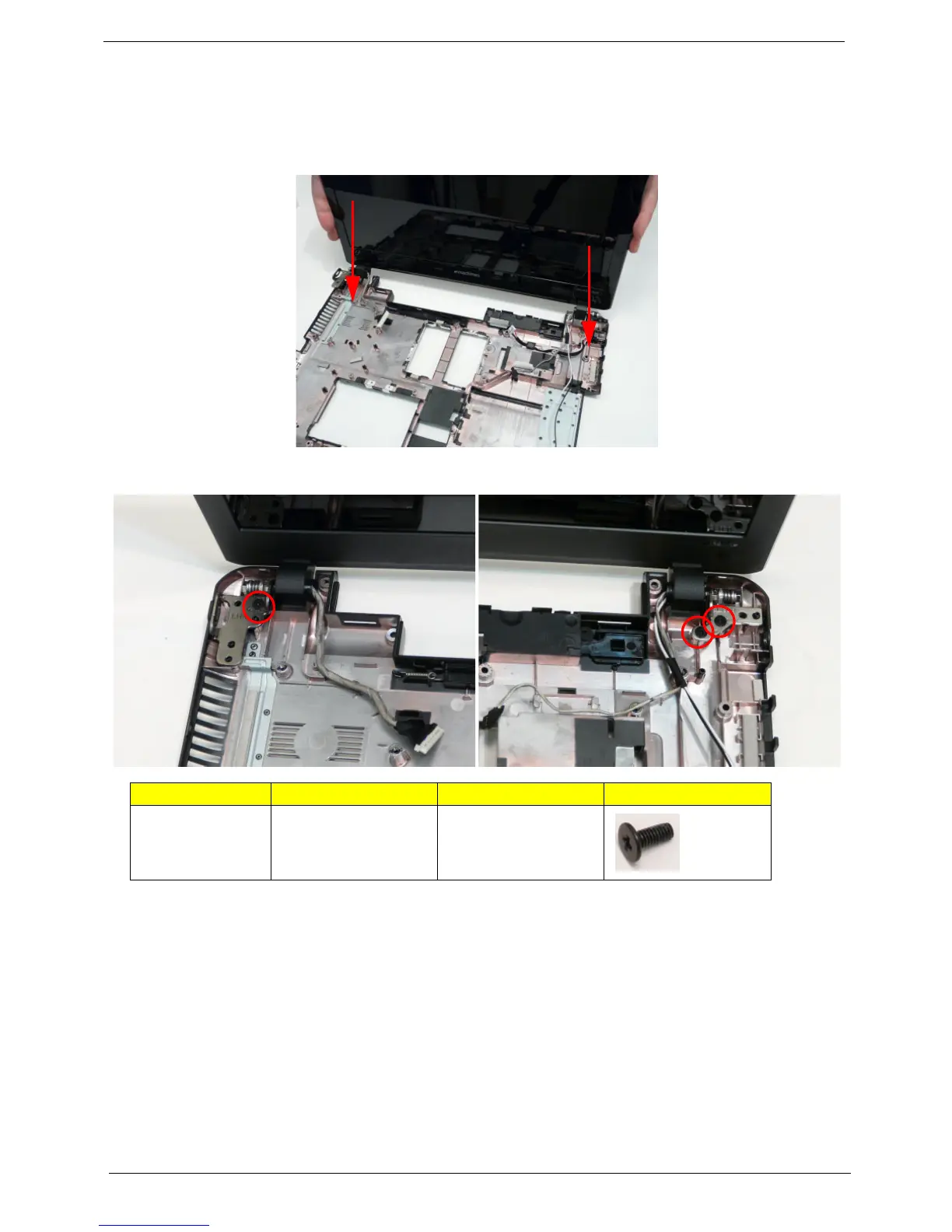

Replacing the LCD Module
1. Using both hands, place the LCD Module into the Lower Cover.
2. Replace the three screws on the rear of the Lower Cover to secure the LCD Module to the Lower Cover.
3. Insert the Microphone cable into the securing clips as shown.
Step Size Quantity Screw Type
LCD Module M2.5*6 3
