70 Chapter 3

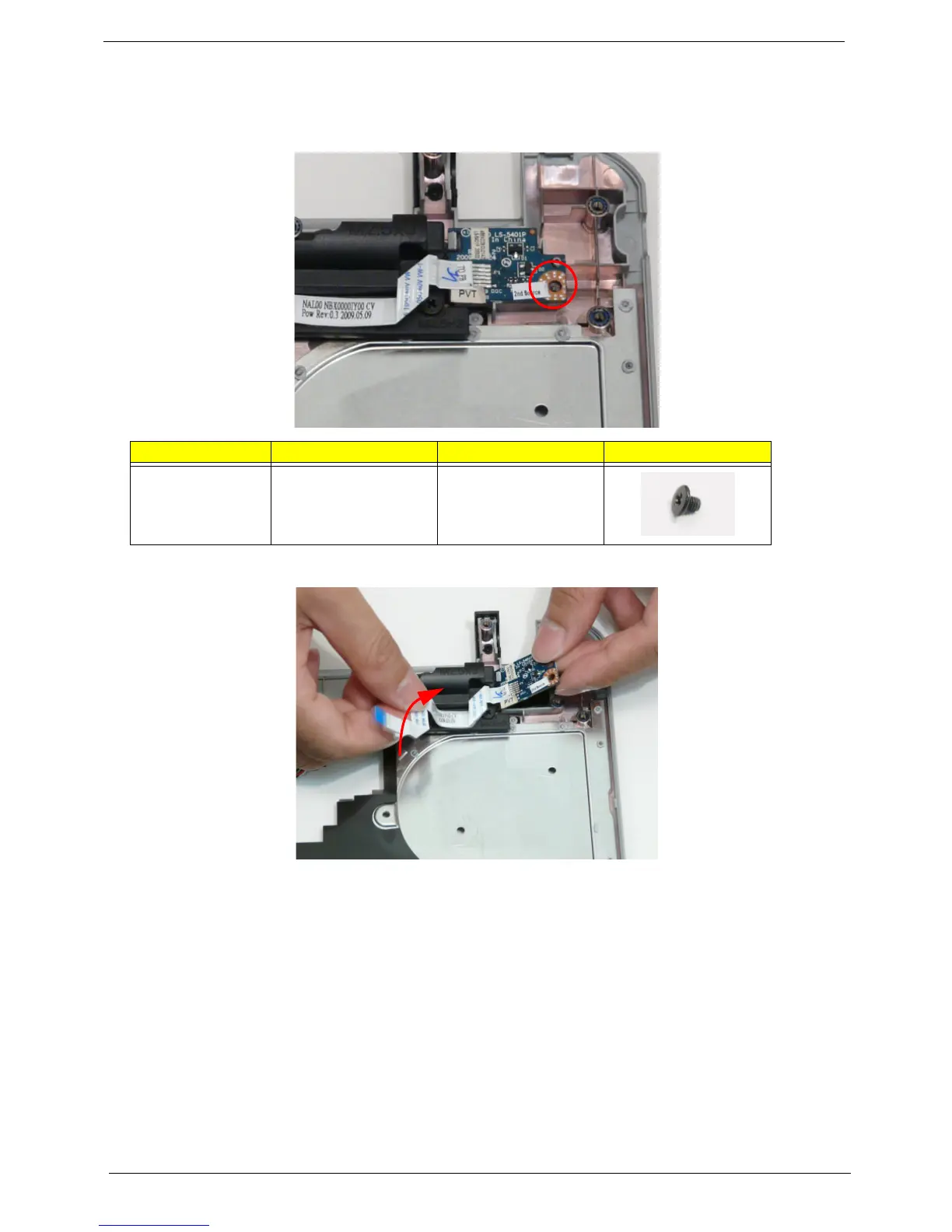

Removing the Power Board
1. See “Removing the Upper Cover” on page 62.
2. Remove the single screw securing the Power Board to the Lower Cover.
3. Pull the FFC up to remove it from the adhesive securing it to the Speaker Module.
4. Tilt the board 90 degrees to clear the securing tab.
IMPORTANT:The FFC is soldered to the power board. Take care when lifting to minimize bending of the
connection, lest breakage occur.
Step Size Quantity Screw Type
Power Board M2.5*3 1
To Next Page
