Acer Aspire 5534 Series Service Guide

124 Chapter 3

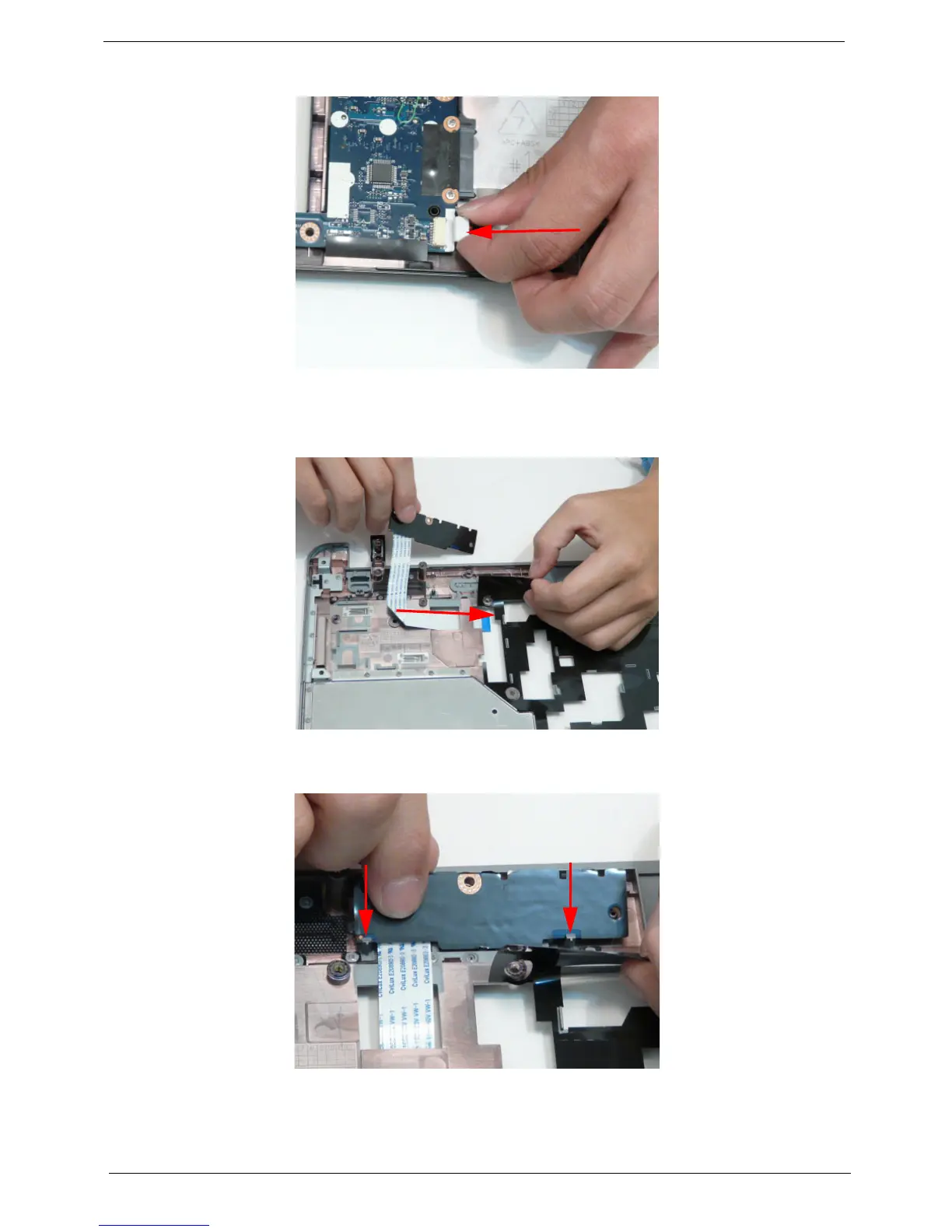

3. Connect the Bluetooth cable to the Mainboard.
Replacing the Media Board
1. Insert the Media Board FFC through the cover as shown.
2. Holding the mylar back, insert the Media Board under the securing clips in the upper cover and place on
the upper cover so the aligning pins are in the holes.
