90 Chapter 3

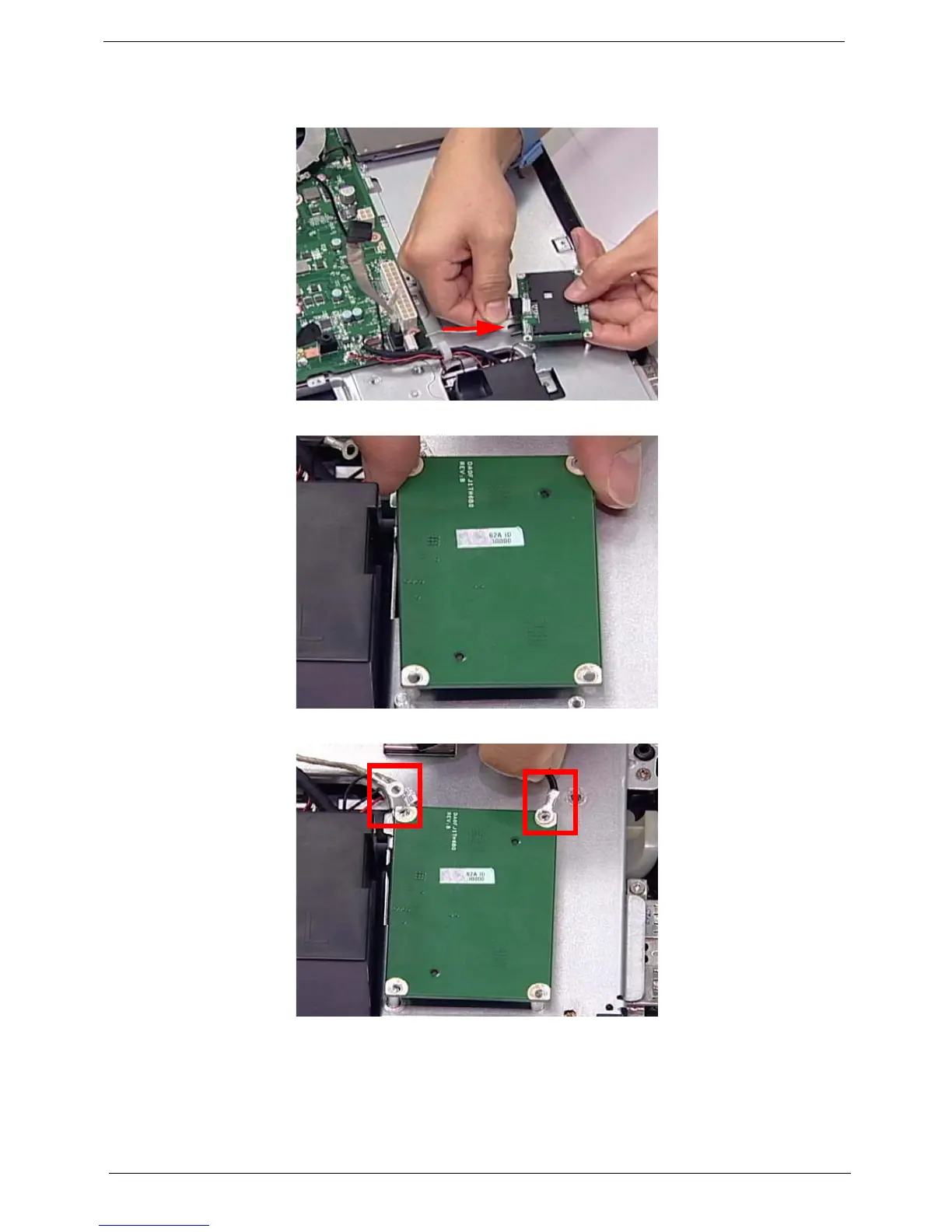

Replacing the B-CAS Board
1. Connect the cable underneath the B-CAS Board.
2. Turn the B-CAS Board over and replace it.
3. Install the USB and HDD grounding cables as shown.
