88 Chapter 3

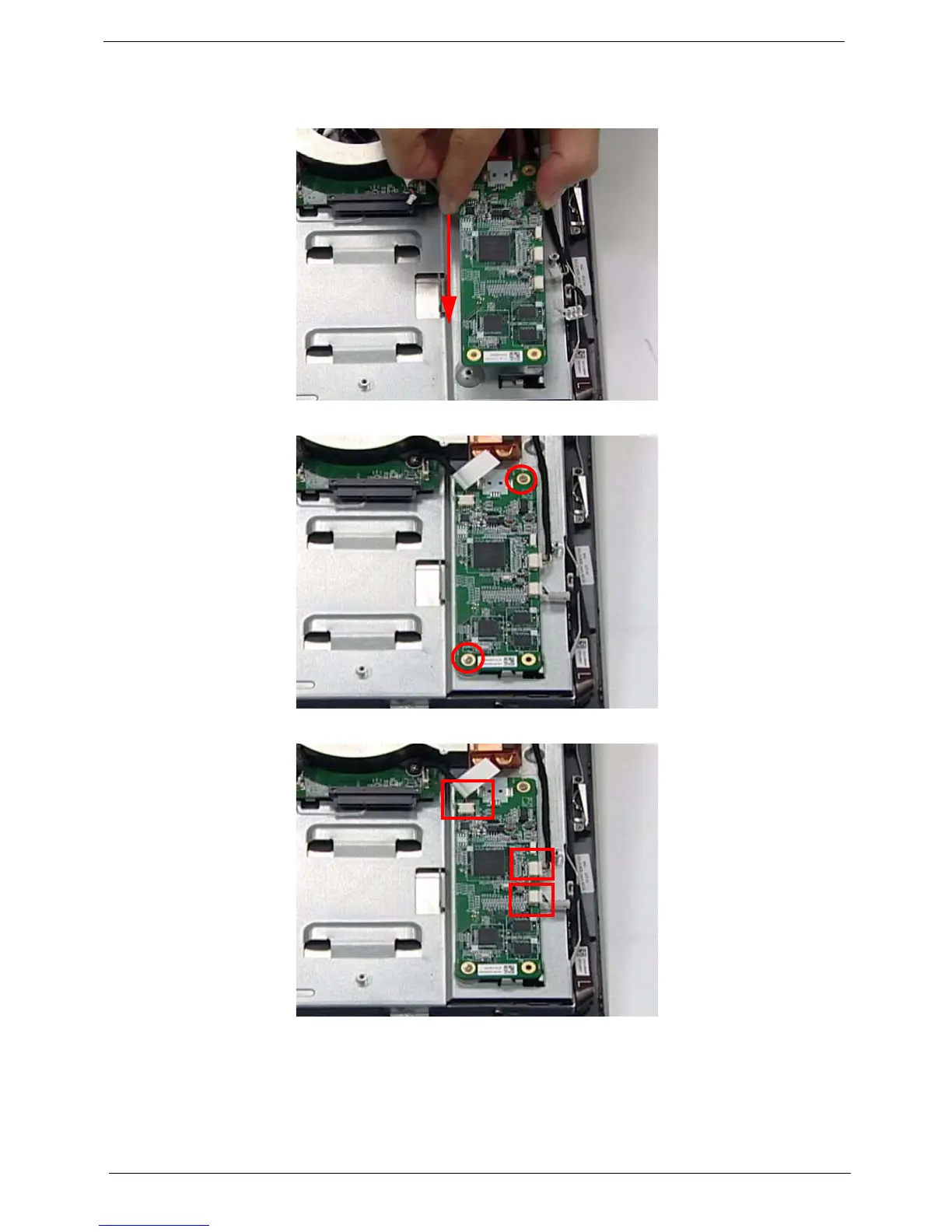

Replacing the Control Board
1. Replace the Control Board.
2. Secure the Control Board using two (2) screws.
3. Connect three (3) cables to secure the Control Board as shown.
