Chapter 3 77

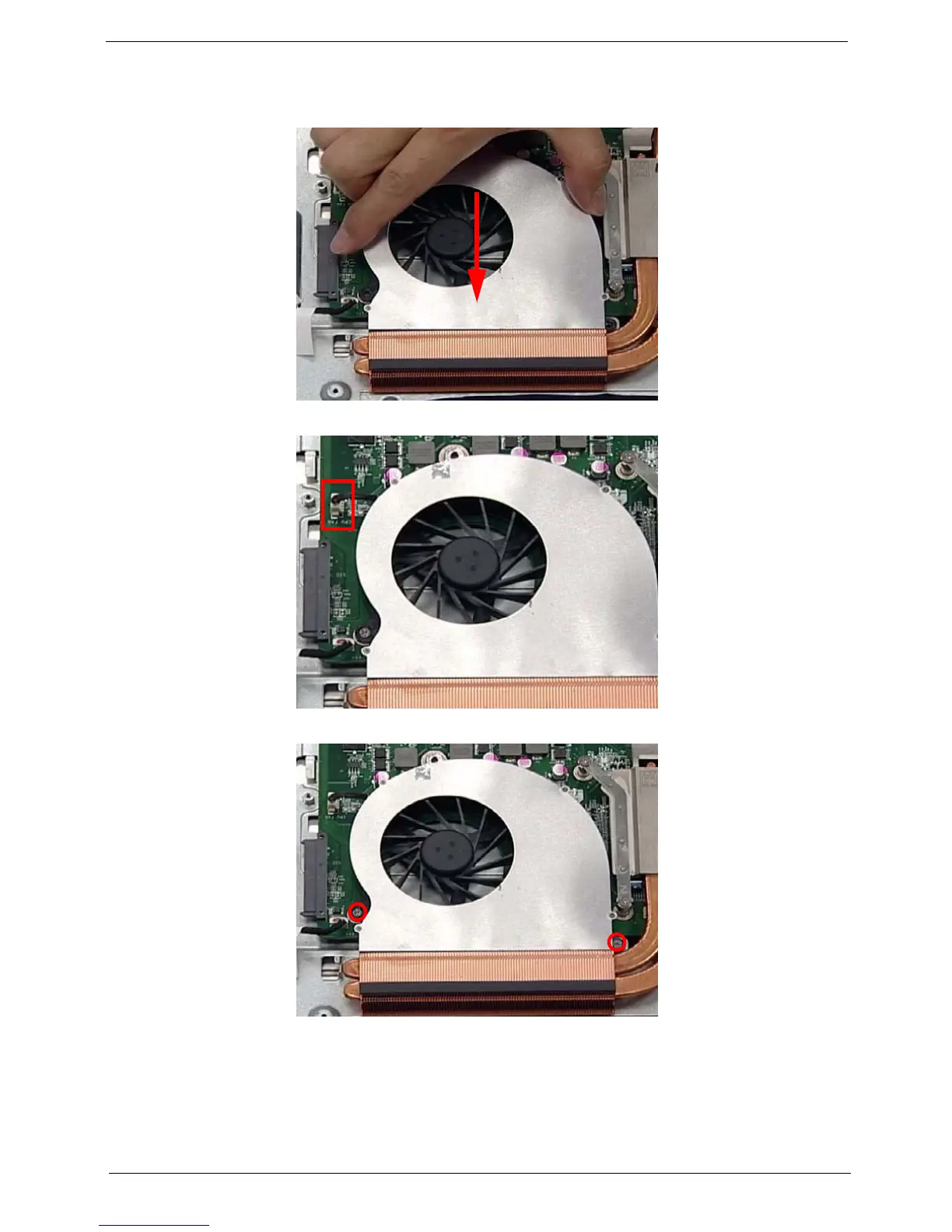

Replacing the CPU Fan
1. Using both hands, align the screw holes on the fan and LCD Module and place the fan on the Thermal Module.
2. Connect the CPU Fan cable to the Mainboard connector.
3. Secure the Fan using two (2)screws as shown.
