Chapter 5 117

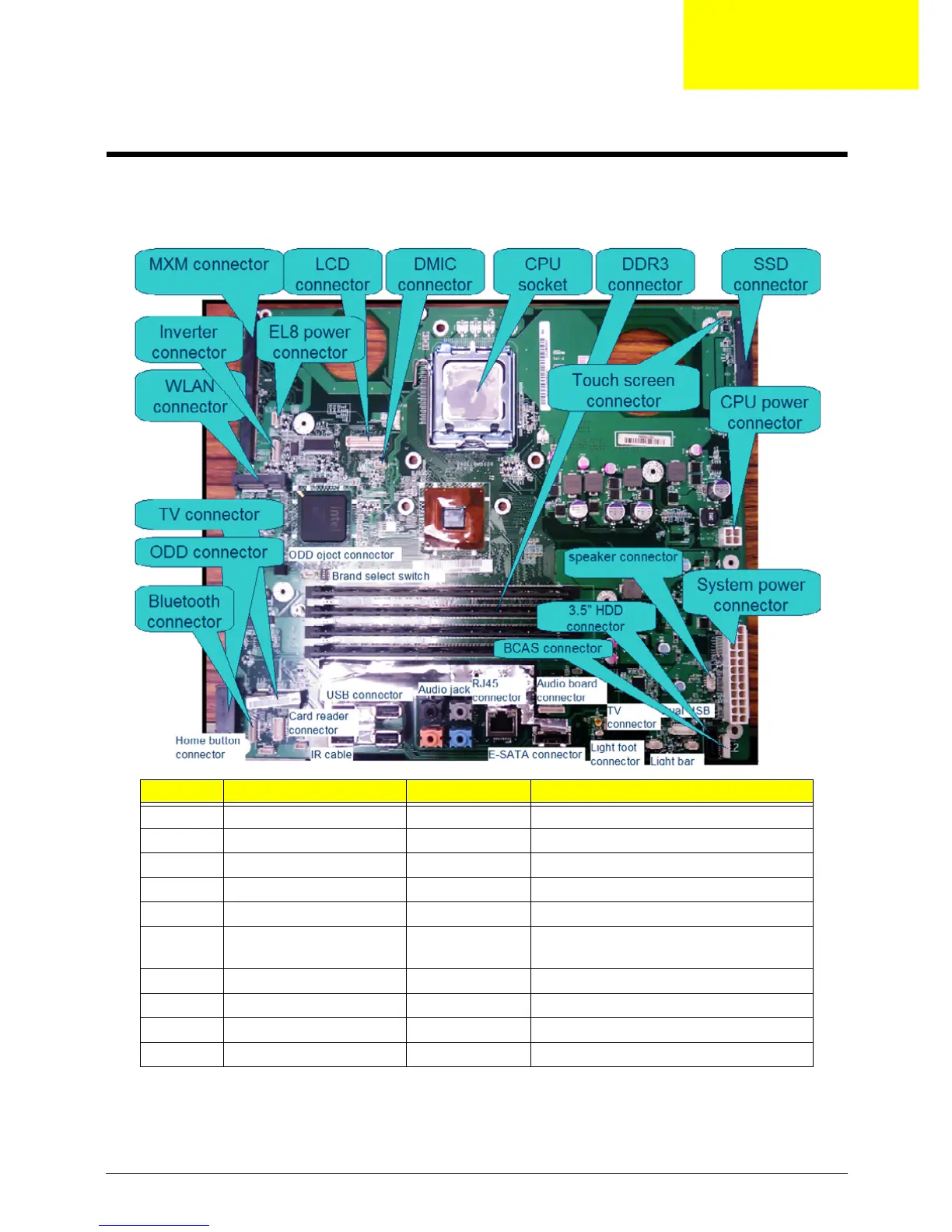

Jumper and Connector Locations
Top View
Item Description Item Description
CPU CPU/Processor socket WLAN Wireless LAN card connector
DDR3 DDR3 SODIMM sockets Inverter LCD inverter connector
FAN CPU fan connector Board to Board Mainboard to daughter board connector
MXM MXM connector DMIC DMIC connector
SSD SSD connector EL8 EL8 power connector
Touch
Screen
Touch screen connector CPU Power CPU Power connector
TV TV connector ODD ODD connector
Speaker Speaker connector Bluetooth Bluetooth connector
BCAS BCAS connector System Power System power connector
Webcam Webcam connector HDD 3.5” HDD connector
Chapter 5
To Next Page
