Chapter 3 85

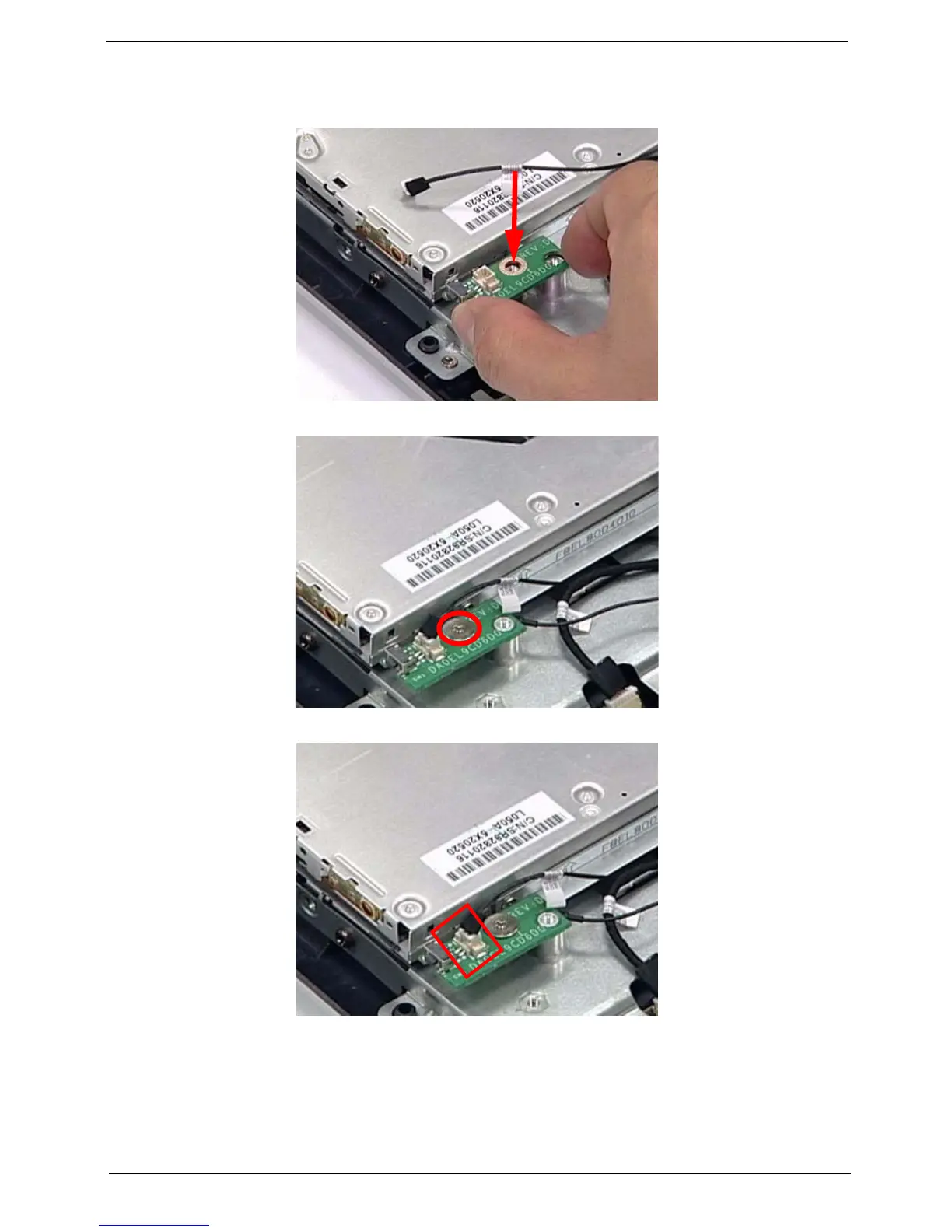

Replacing the ODD Button Board
1. Replace the ODD Button Board while lining up the guide pin underneath.
2. Secure the ODD Button Board using one (1) screw.
3. Connect one (1) cable to secure the ODD Button Board as shown.
