94 Chapter 3
Replacing the Back Frame

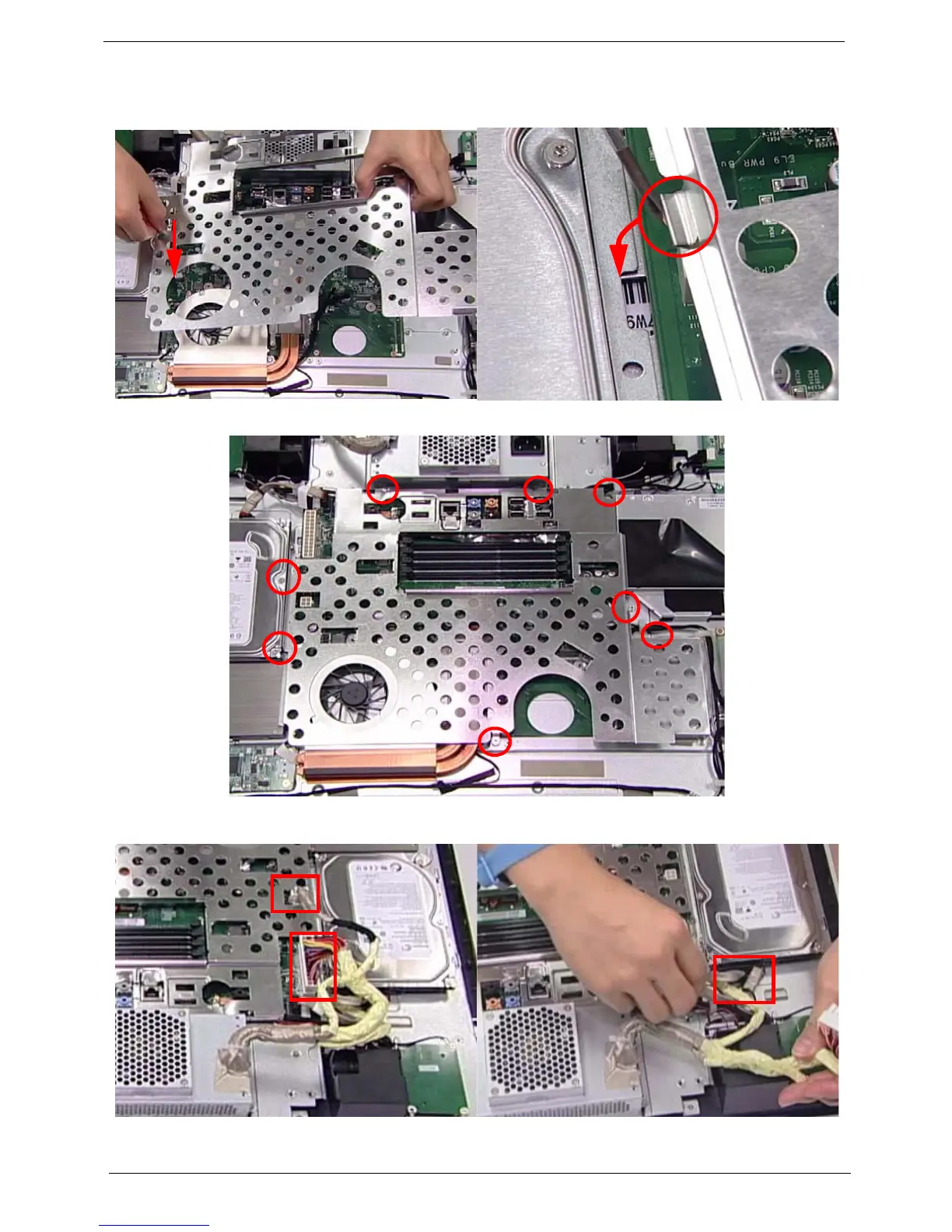

1. Place one end of the Back Frame (1) in the device as shown. Line up the guide (2) before replacing completely.
2. Secure the Back Frame using nine (9) screws.
3. Connect the CPU Power Cable (A), the SATA Power Cable(B), and the HDD Power Cable (C)
1
2
A
B
c
