Acer Aspire Z5600 Series User Manual

Chapter 4 103
Troubleshooting
Common Problems
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating
the same operation.
3. Use the troubleshooting sections to try and resolve the issue.
4. If the Issue is still not resolved, see “Online Support Information” on page 197.

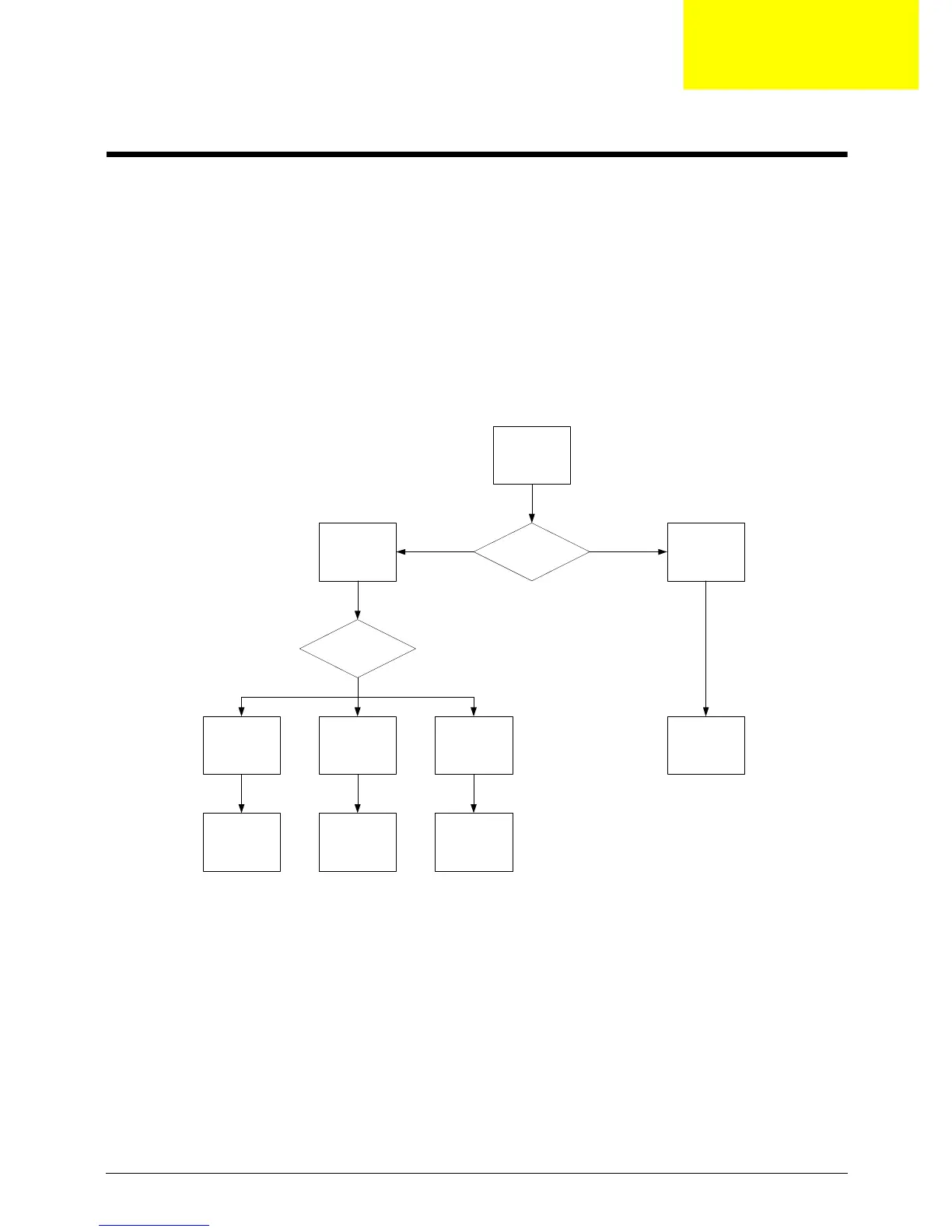

START
Hardware or
Software failure?
Determine
Hardware failure
Component
failure
Software
Issue
HDD Image
failure
Hardware
Issue
LCD
failure
Mainboard
failure
Replace
Mainboard
Go to LCD
failure section
Go to specific
component
failure section
Chapter 4

Acer Aspire Z5600 Series Specifications

General

Brand	Acer
Model	Aspire Z5600 Series
Category	Desktop
Language	English

Summary

System Specifications

Hardware Specifications and Configurations

Lists detailed hardware specifications and configurations for the system.

System Utilities

BIOS Setup Utility

Describes the BIOS setup utility for hardware configuration and system settings.

Navigating the BIOS Utility

Provides instructions on how to navigate through the BIOS setup menus and options.

Advanced

Accesses advanced BIOS options for configuring system features.

Advanced Chipset Features

Details chipset settings and configuration within the advanced BIOS menu.

Security

Contains parameters for safeguarding and protecting the computer.

Setting a Password

Provides step-by-step instructions for setting user or supervisor passwords in BIOS.

PC Health

Monitors system temperature, voltage, and fan speed for CPU and system health.

Power

Configures device power management parameters within the BIOS.

Boot

Allows the user to decide the order of boot devices for the operating system.

Machine Disassembly and Replacement

Disassembly Requirements

Lists the necessary tools and precautions before disassembling the computer.

Disassembly Process

Provides step-by-step instructions for disassembling the computer.

Disassembly Flowchart

Illustrates the sequence of steps for disassembling the computer.

Reassembly Procedure

Outlines the steps for reassembling the computer after component replacement.

Troubleshooting

Common Problems

Guides users through diagnosing and resolving common computer issues.

ODD Failure

Wireless Failure

Camera Failure

Speaker Failure

General Troubleshooting Issues

Jumper and Connector Locations

Clearing Password Check and BIOS Recovery

BIOS Recovery by Crisis Disk

FRU (Field Replaceable Unit) List

FRU List
