Chapter 3 81

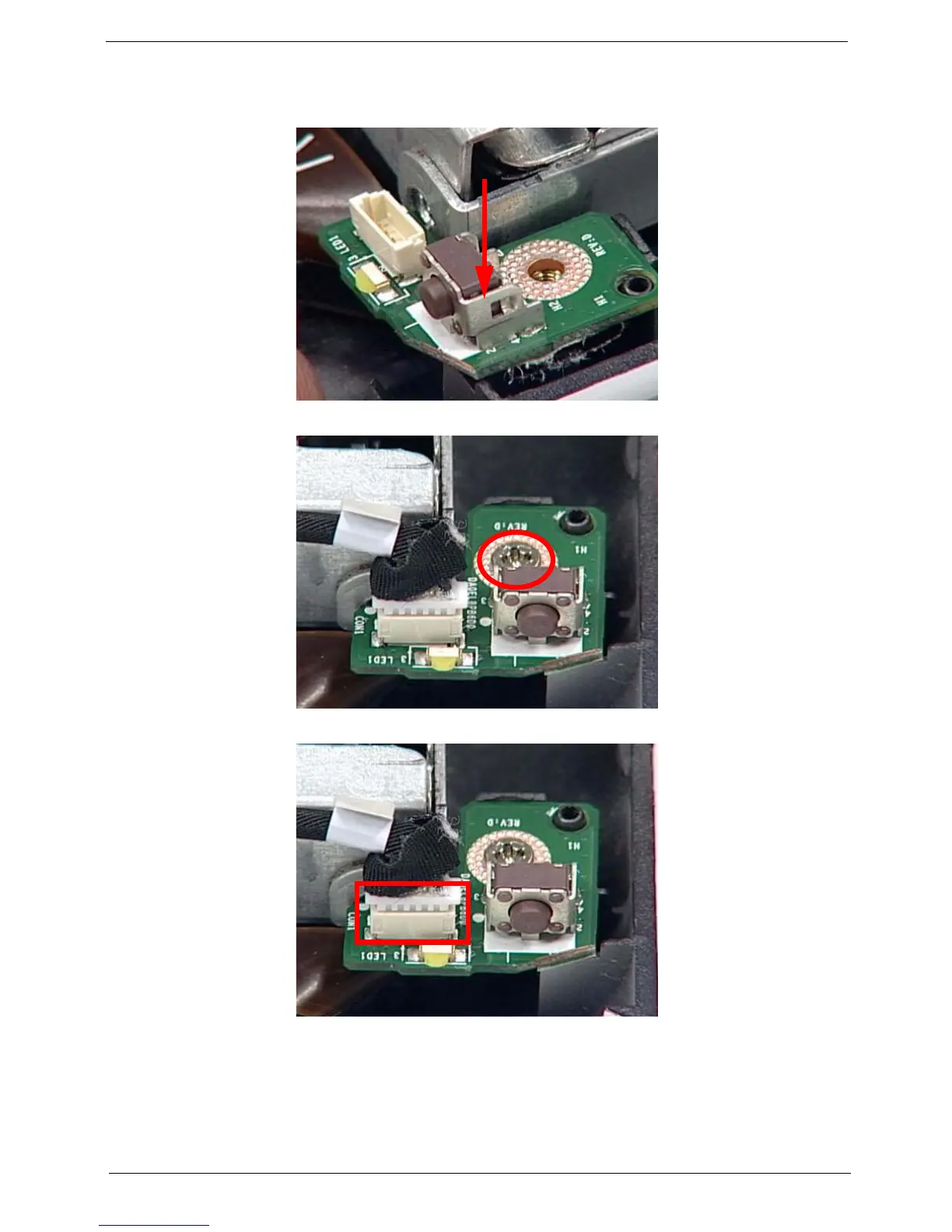

Replacing the Home Button Board
1. Replace the Home Button Board, while lining up the guide pin underneath.
2. Secure the Home Button Board using one screw.
3. Connect one cable to secure the Home Button Board.
