96 Chapter 3

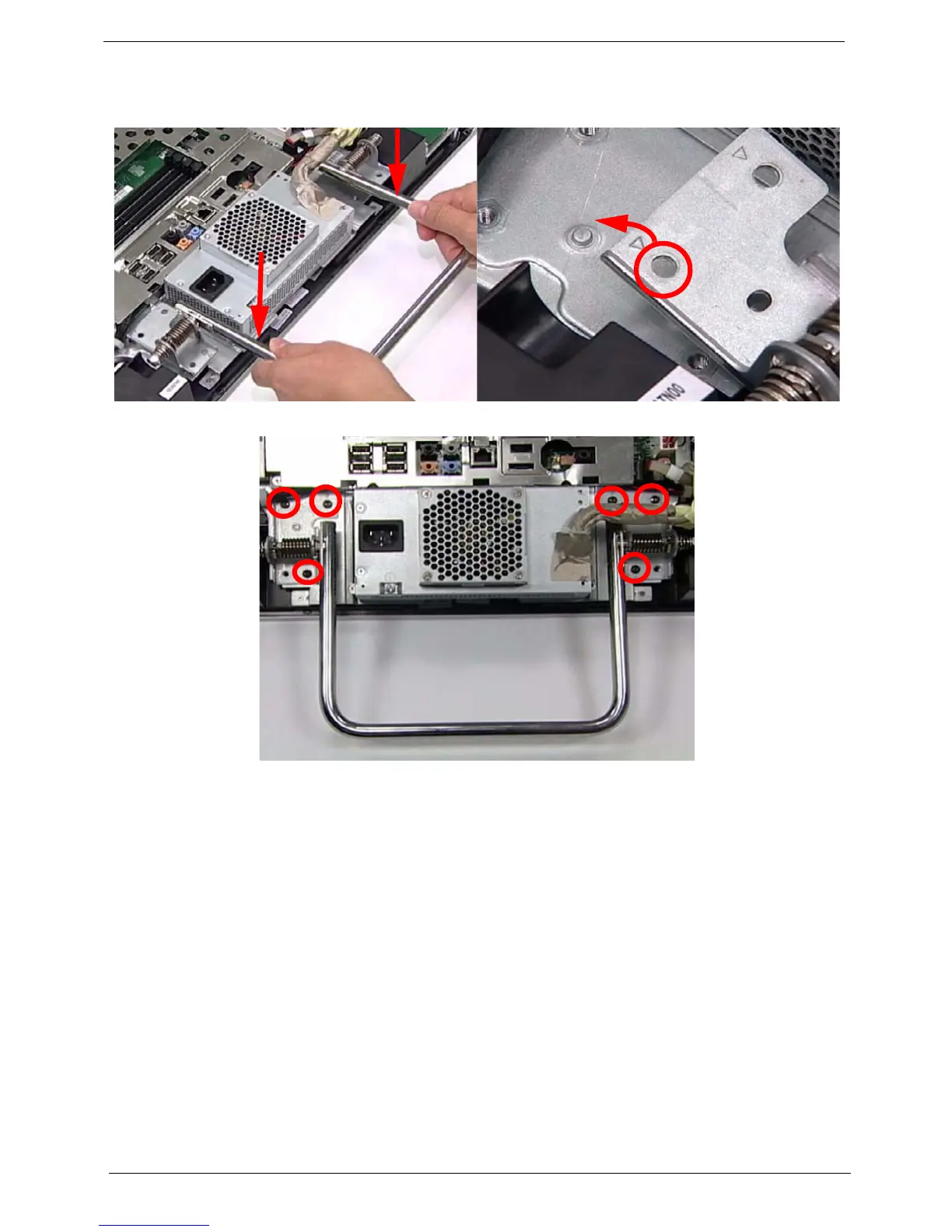

Replacing the Hinge
1. Replace the Hinge, noting the guide pin that must be lined up.
2. Secure the Hinge using six (6) screws.
