3.4.4 Access to mechanical emergency operation

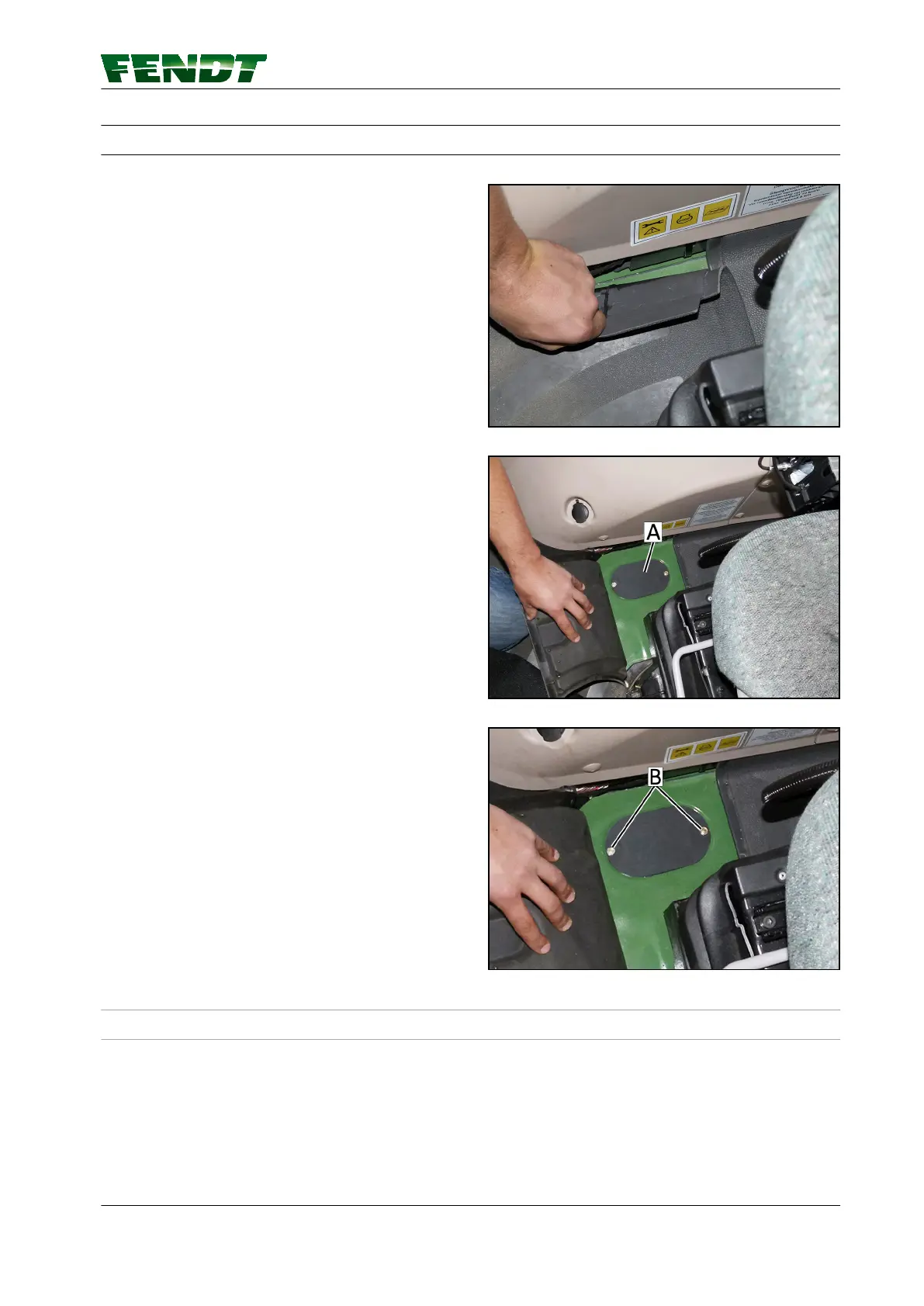

• Partially remove floormat, by pulling the
floormat on the right next to the operator's seat
out.
Fig. 125
• Pull back the floormat until the cover (A) of the
emergency operation is exposed.
Fig. 126
• Unscrew bolts (B) and remove cover.
Fig. 127
3.4.5 Mechanical selection of transmission ratio
NOTE:
When setting the transmission ratio, only the supplied auxiliary lever should be used, otherwise the
coupling in the transmission control unit may be turned too far (maximum permissible torque 10 Nm).
