2.19.4 Adjust the front headlamps
NOTE:
Before adjusting, manually set the front axle
suspension to move the chassis into the center of
the suspension range
Remove front-end weight.
Check tire pressures.
Check the lenses and reflectors for damage and
replace if necessary.
• Remove panel.
• Adjust the headlamps using the Torx screws
(arrows).
• Fit panel.

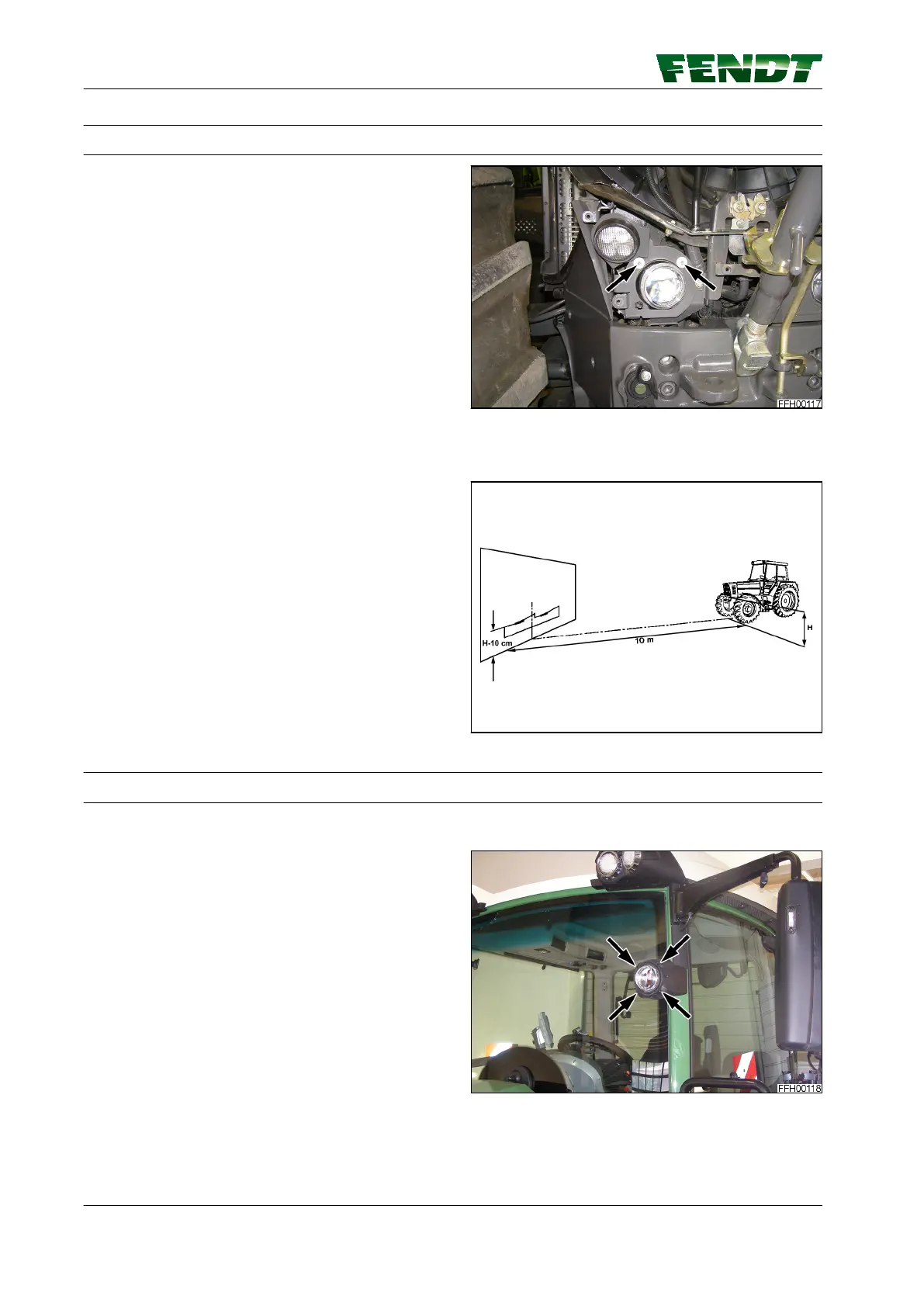

Fig. 80
Adjustment instructions
Headlamp: At a distance of 10 m the light-dark
boundary is 10 cm below the installation height
(measured from the ground to the centre of the
headlamp).
Headlamp high beam: The headlamp high beam
setting must be used when adjusting the
headlamp.
Fig. 81
2.19.5 Adjust the auxiliary lighting
Adjust the auxiliary lighting
• Adjust headlamps using the screws (arrows).
Fig. 82
