Connect the Kinetix 6000 Drive System Chapter 5
External Shunt Module
Connections
Follow these guidelines when wiring your external active or passive shunt
module.
Table 96 - Shunt Module Wiring

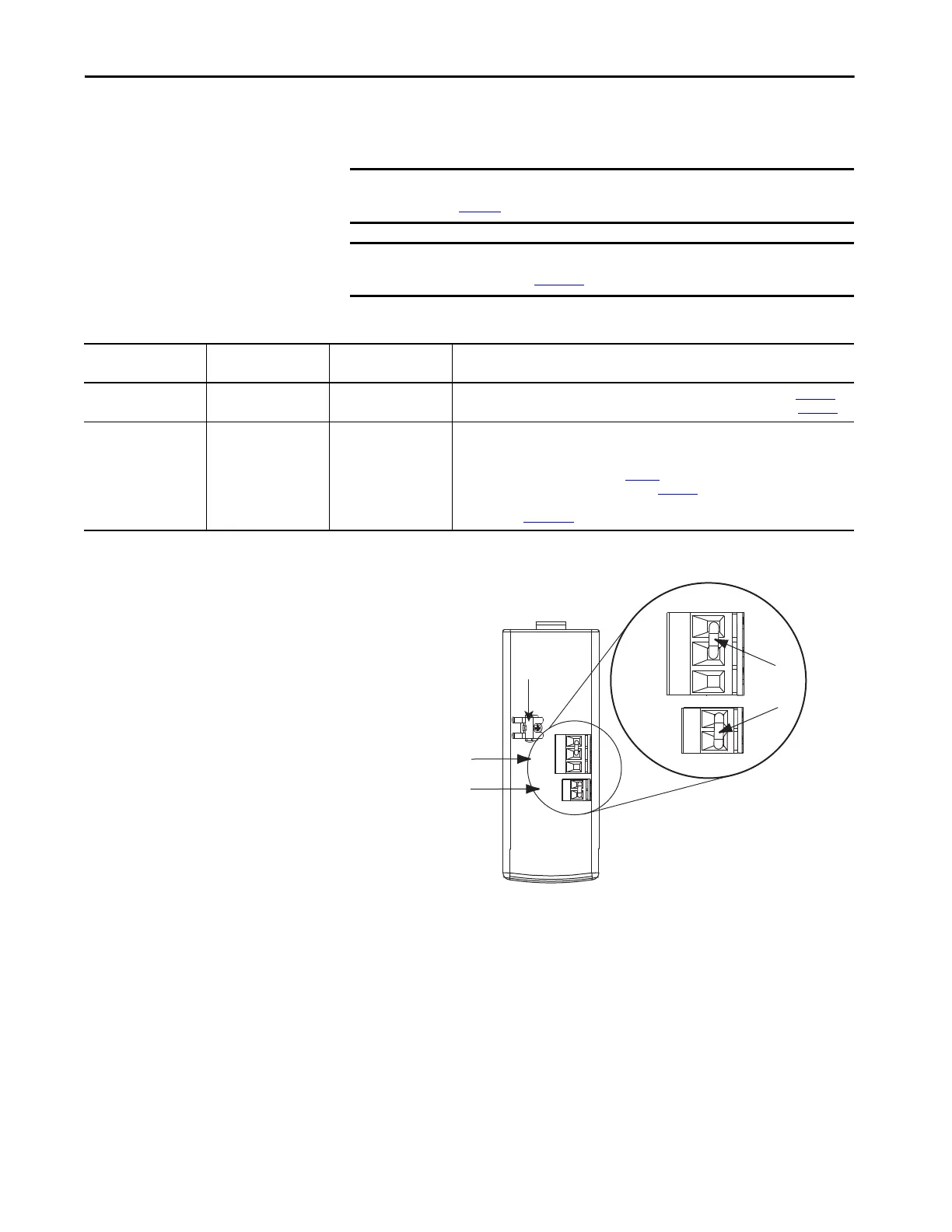

Figure 70 - Shunt Module Jumper Settings
(1) These are the default jumper settings.
IMPORTANT When tightening screws to secure the wires, refer to the tables beginning on
page 97
for torque values.
IMPORTANT To improve system performance, run wires and cables in the wireways as
established in Chapter
2.
Use This
Shunt Module
Cat. No.
With This
Drive Module
Do This
Power rail mounted shunt
module.
2094-BSP2 N/A
• Verify the internal shunt jumper is in place between RC-2 and RC-3 (refer to Figure 70).
• Verify the thermal switch jumper is in place between TS-1 and TS-2 (refer to Figure 70).
External passive shunt
module connected to the
power rail shunt module.
1394-SRxxxx
2094-BSP2
Shunt module
• Remove the internal shunt jumper between RC-2 and RC-3.
• Remove the thermal switch jumper between TS-1 and TS-2
(if your shunt module includes a thermal switch).
• Refer to External Shunt Modules on page 48
for noise zone considerations.
• Refer to Shunt Module Wiring Examples on page 197.
• Refer to the installation instructions provided with your Bulletin 1394 shunt module,
publication 2090-IN004.
1 2 3
1 2
1 2 3
1 2
COL
INT
DC+
TS2
TS1
COL
INT
DC+
TS2
TS1
External Shunt Resistor
(RC) Connector
Kinetix 6000 Shunt Module, Top View
(catalog number 2094-BSP2)
External Thermal Switch
(TS) Connector
Cable Shield
Clamp
Jumpers
(1)
