258 Rockwell Automation Publication 2094-UM001J-EN-P - March 2017

Appendix E Changing the Default IDN Parameter Values

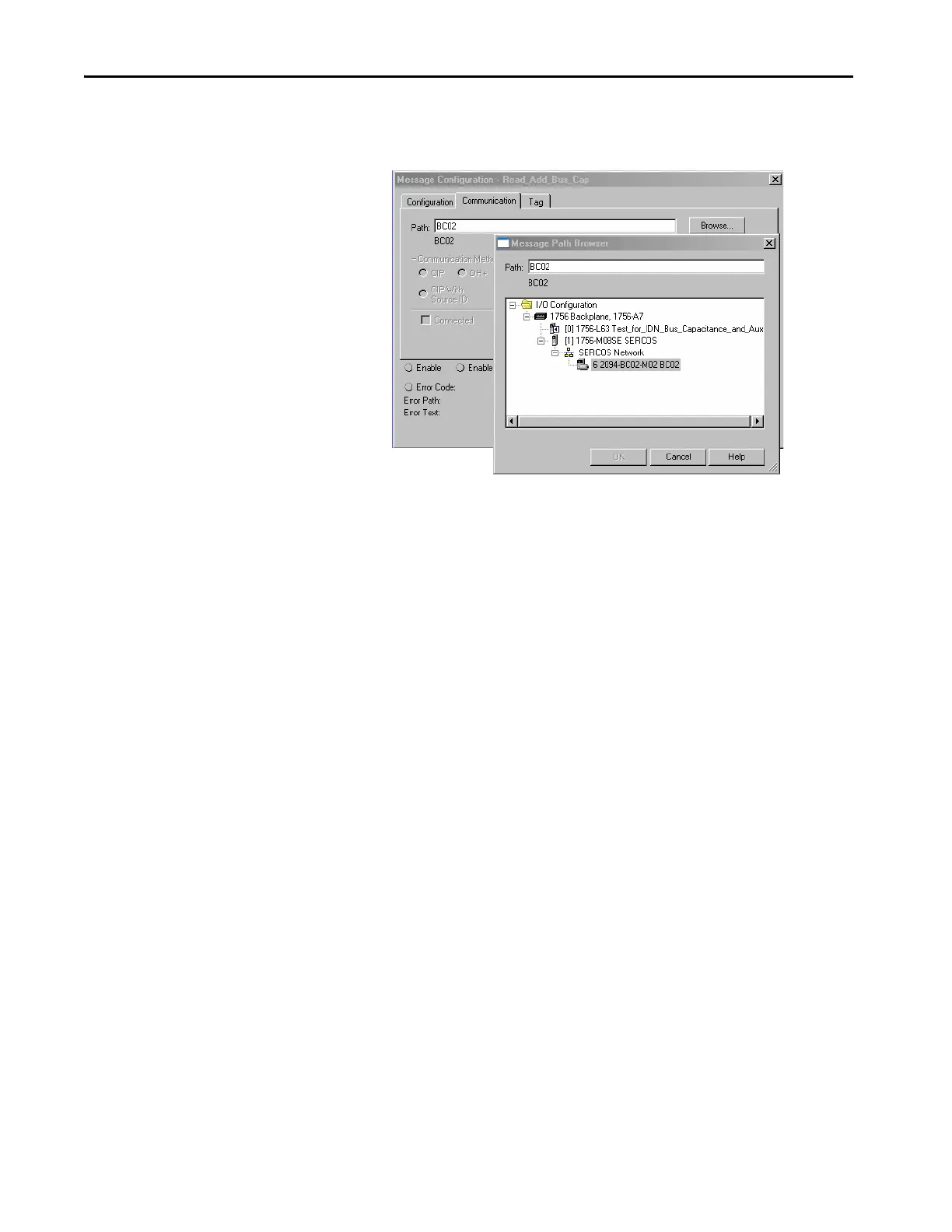

6. Click the Communication tab.

The Communication tab opens.

7. Click Browse.

8. Select your Bulletin 2094 module.

9. Click OK.

The MSG instruction writes the new IDN value to your drive.

10. Click OK to close the Message Configuration dialog box.

TIP To verify your Sercos IDN Write instruction was successful, you can

perform another Sercos IDN Read instruction for the IDN in

question.
