Using High-Speed Outputs 133

Pulse Train Outputs

(PTO) Function File

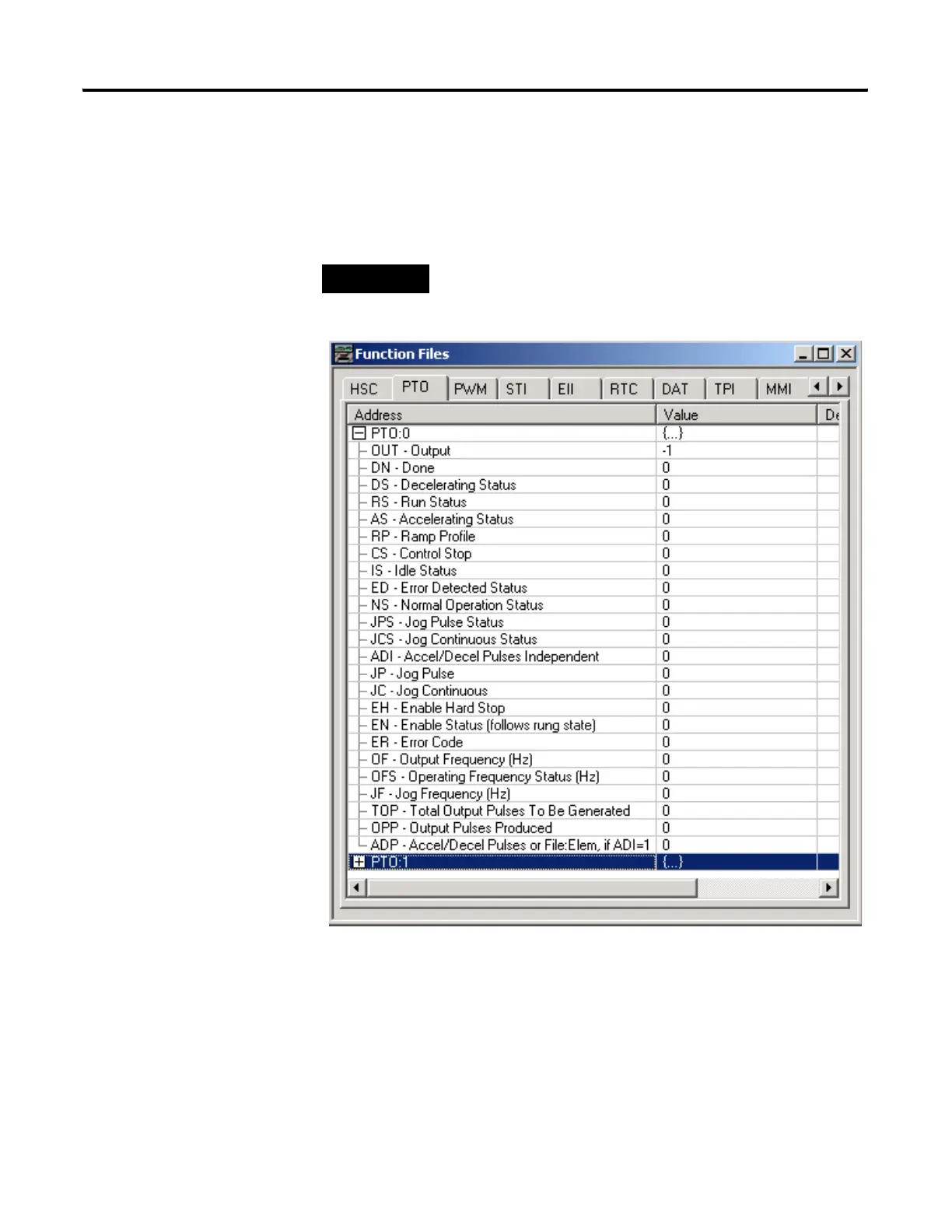

Within the RSLogix 500 Function File Folder, you see a PTO Function File

with two elements, PTO0 and PTO1. These elements provide access to

PTO configuration data and also allow the control program access to all

information pertaining to each of the Pulse Train Outputs.

TIP

If the controller mode is run, the data within sub-element

fields may be changing.
