Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009

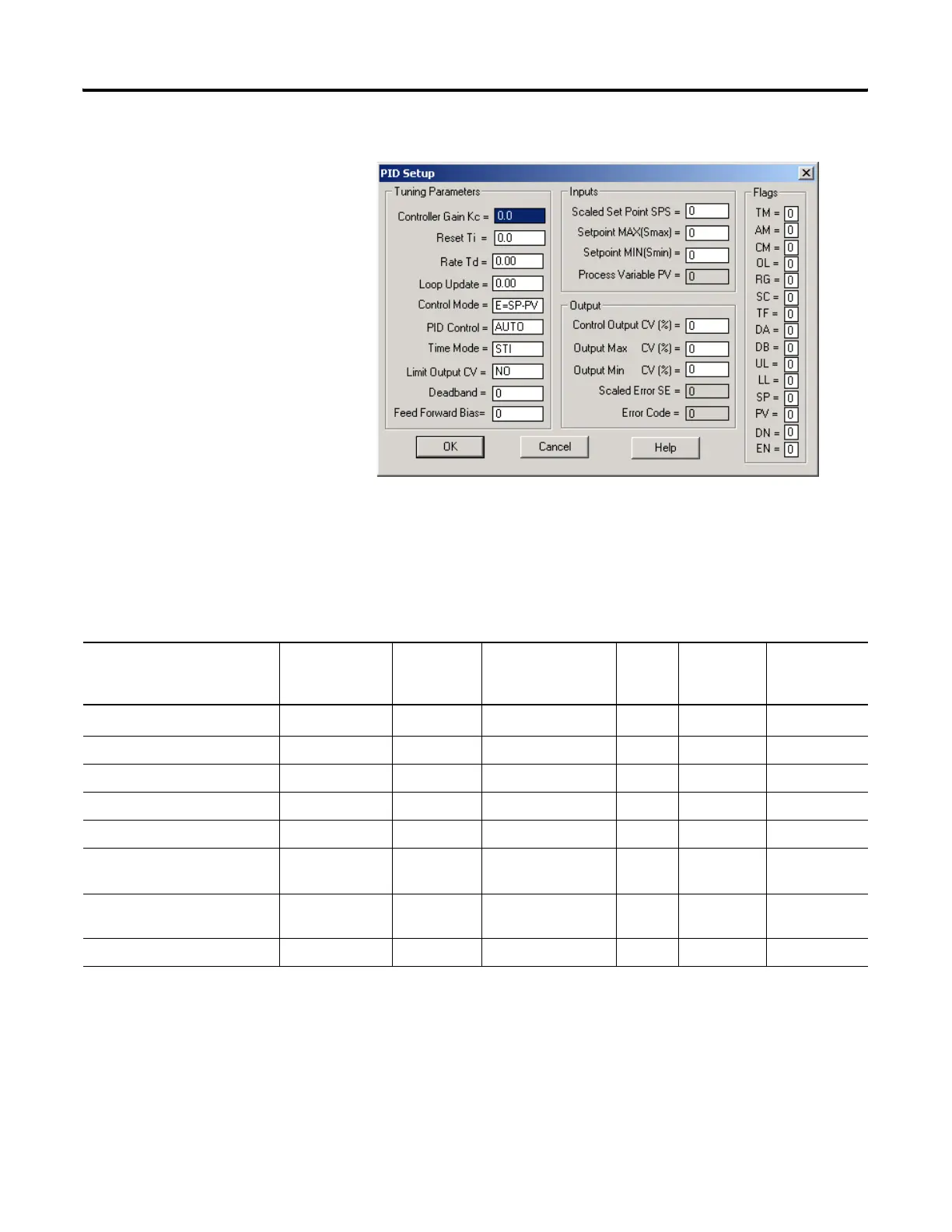

Process Control Instruction 283
Input Parameters
The table below shows the input parameter addresses, data formats, and
types of user program access. See the indicated pages for descriptions of
each parameter.
Input Parameter Descriptions Address Data Format Range Type User
Program
Access
For More
Information
SPS - Setpoint PD10:0.SPS word (INT)
0 to 16383
(1)
control read/write 284
PV - Process Variable user defined word (INT) 0 to 16383 control read/write 284
MAXS - Setpoint Maximum PD10:0.MAXS word (INT) -32,768 to +32,767 control read/write 284
MINS - Setpoint Minimum PD10:0.MINS word (INT) -32,768 to +32,767 control read/write 285
OSP - Old Setpoint Value PD10:0.OSP word (INT) -32,768 to +32,767 status read only 285
OL - Output Limit PD10:0/OL binary 1 = enabled
0 = disabled
control read/write 286
CVH - Control Variable High
Limit
PD10:0.CVH word (INT) 0 to 100% control read/write 286
CVL - Control Variable Low Limit PD10:0.CVL word (INT) 0 to 100% control read/write 287
(1) The range listed in the table is for when scaling is not enabled. With scaling, the range is from minimum scaled (MINS) to maximum scaled (MAXS).
