Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
File Instructions 225
FLL - Fill File
Instruction Type: output

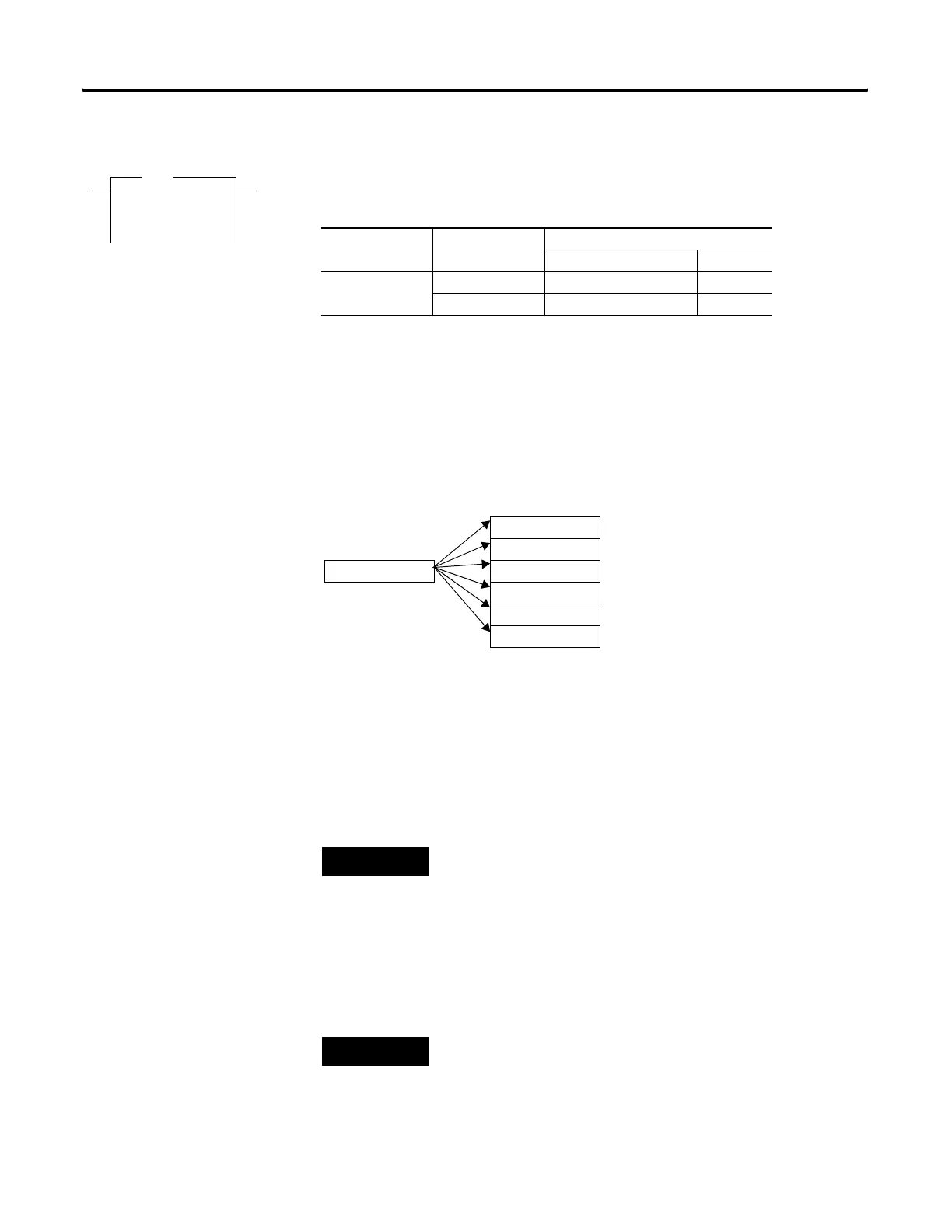

The FLL instruction loads elements of a file with either a constant or an
address data value for a given length. The following figure shows how file
instruction data is manipulated. The instruction fills the words of a file
with a source value. It uses no status bits. If you need an enable bit,
program a parallel output that uses a storage address.
This instruction uses the following operands:
• Source - The source operand is the address of the value or constant
used to fill the destination. The data range for the source is from
-32768 to 32767 (word) or -2,147,483,648 to 2,147,483,647 (long
word), or any IEEE-754 32-bit value.
• Destination - The starting destination address where the data is
written.
• Length - The length operand contains the number of elements. The
length can range from 1 to 128 (word), 1 to 64 (long word), or 1 to
42 (3 word element such as counter).
FLL
Fill File
Source N7:0
Dest #N7:1
Length 1
FLL
Execution Time for the FLL Instruction
Controller Data Size When Rung Is:
True False
MicroLogix 1100 word 16.8 + 0.07 μs/word 0.9 μs
long word 17.18 + 0.2 μs/long word 0.9 μs
TIP
A constant cannot be used as the source in a timer (T),
counter (C), or control (R) file.
TIP
The source and destination operands must be of the
same file type, unless they are bit (B) and integer (N).
Destination
Source
Word to File
