FlexiROC T30 R 15 Compressed Air System
104 No: 3629357835.1.3629419915 en-US
Precondition
p
Run the compressor to operating temperature and confirm that the pressure is zero.
1.
Place vessels under the drain plugs.
2.
Remove drain plugs for compressor tank, compressor cooler, and compressor ele-
ment and drain the oil.
3.
Refit and tighten the plugs.
4.
Remove the oil filters (E).
5.
Open the cover plate (A) on the air reservoir and remove the oil separator element.
6.
Check the inside of the oil reservoir (B).
è
If sediments are detected, the parts (A-D) must be thoroughly cleaned before
the procedure is completed.
7.
Insert a new oil separator element and refit the cover plate (A).
8.
Clean the filter seat on the manifold using new oil, and make sure that no dirt falls
down into the system.
9.
Lubricate the gasket on the new filters with new oil.
10.
Replace the filters (E) and close the valve (C).
11.

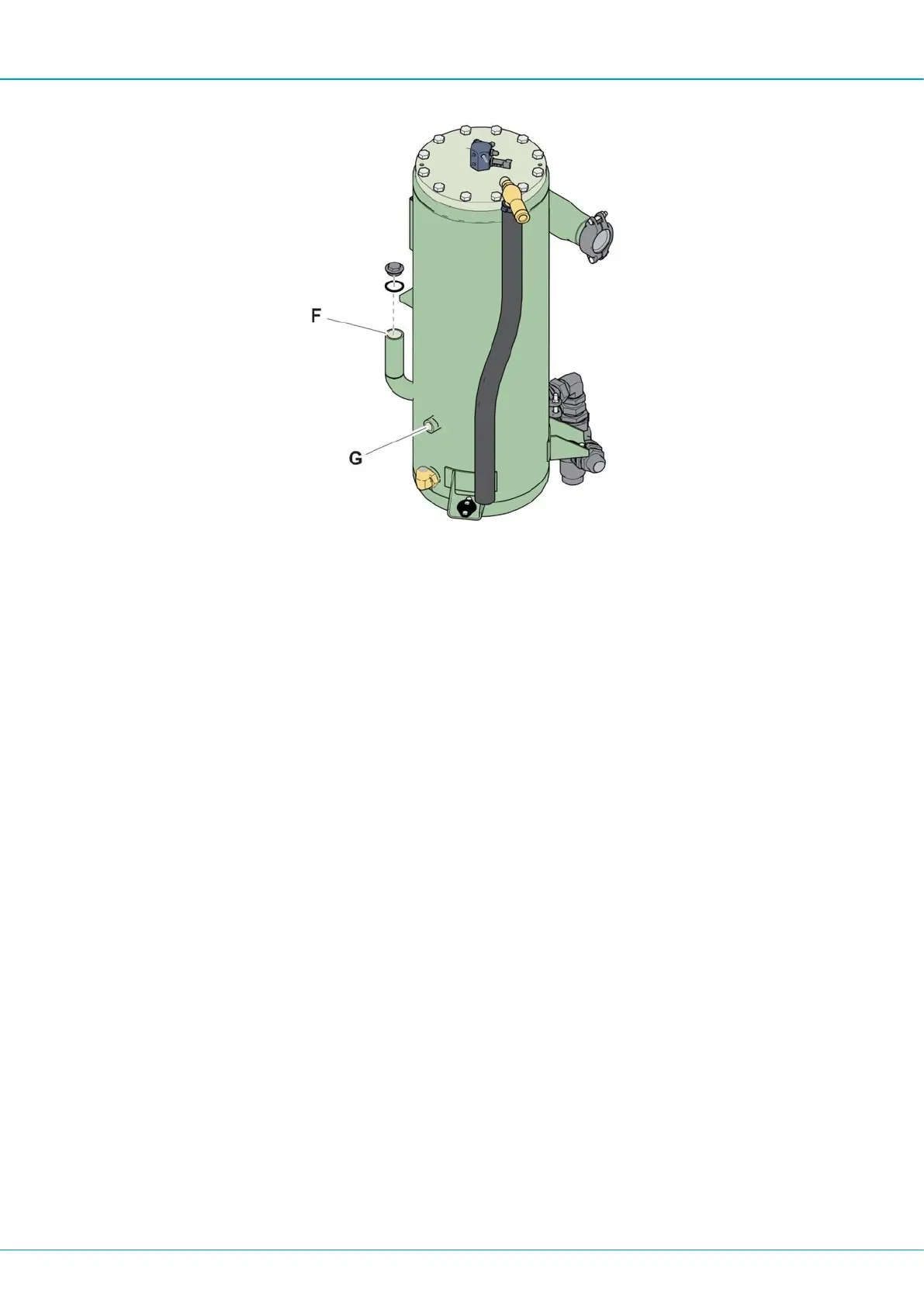

Fill the oil reservoir with the minimum amount of oil permissible through the oil inlet
(F).
12.
Run the compressor unloaded in light mode for 30 minutes.
13.
Drain the oil.
14.
Fill the system with new oil.
The indicator on the gauge (G) must be in the upper section of the green zone.
15.
Run the compressor without load in light mode for 15 minutes and check for leaks.
16.
Check that the oil level on the gauge is in green zone. Top up if necessary.
